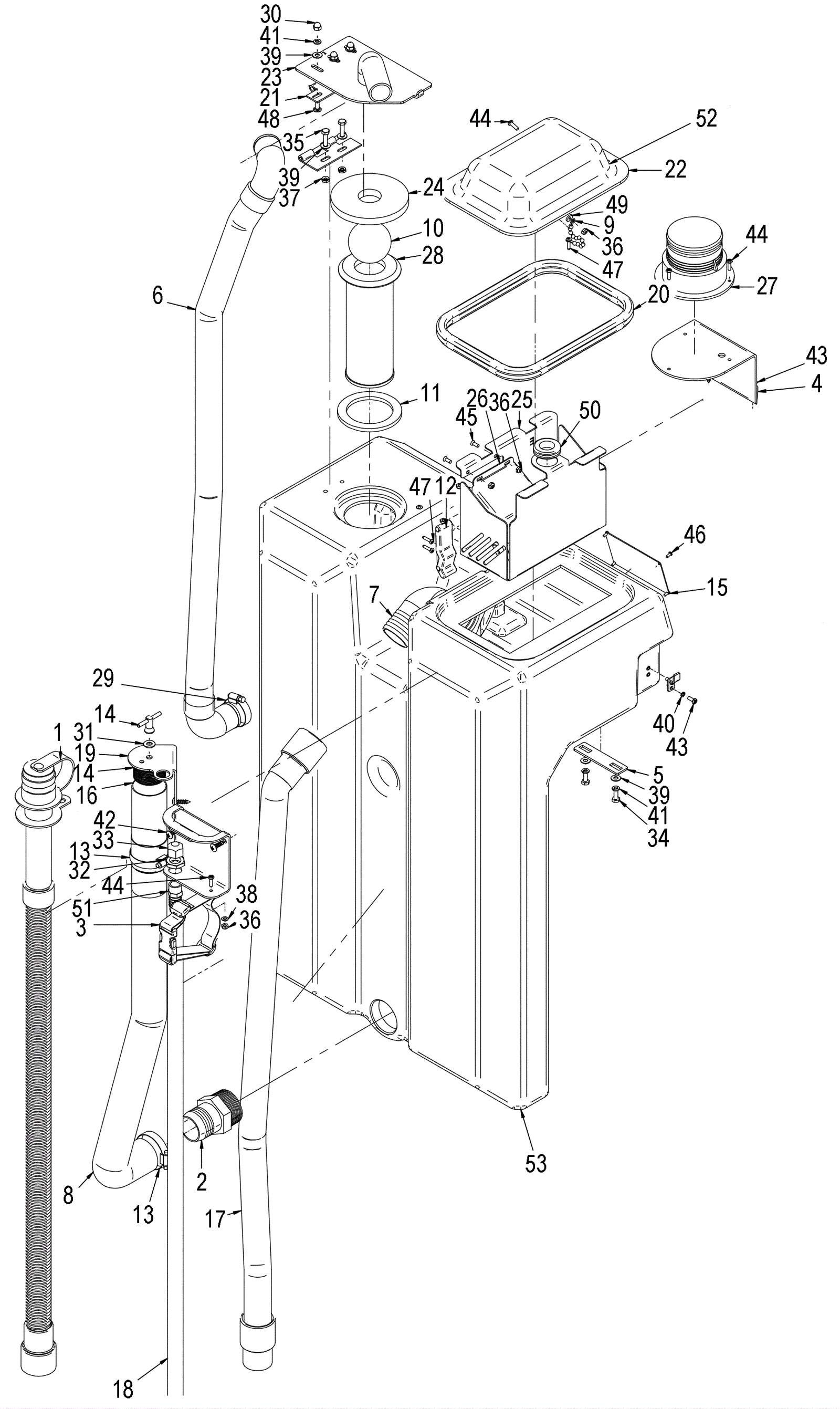

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3582
|
Drain hose assembly |
1 |
|
|
2 |
202-2025
|
Hosebarb |
1 |
|
|
3 |
202-5644
|
Strap and buckle set |
1 |
|
|
4 |
202-3521
|
Strobe light bracket |
1 |
|
|
5 |
202-3279
|
Tank support strap |
1 |
|
|
6 |
202-2901
|
Vacuum hose with curved hose cuffs |
1 |
|
|
7 |
202-0703
|
Elbow |
1 |
|
|
8a |
202-0708
|
Drain hose |
1 |
|
|
8b |
991-2415
|
Drain hose |
1 |
(NON-OEM) |
|
9 |
202-3127
|
4 inch chain (6 inch no longer available) |
1 |
|
|
10 |
202-0232
|
Float shut-off ball |
1 |
|
|
11 |
202-0230
|
Strainer gasket |
1 |
|
|
12 |
202-1487
|
Latch |
1 |
|
|
13 |
997-2011
|
Hose clamp |
2 |
|
|
14 |
202-0240
|
Drain hose plug |
1 |
|
|
15 |
202-0675
|
Detergent warning plate |
1 |
|
|
16 |
202-0694
|
Drain hose end tube |
1 |
|
|
17 |
202-5645
|
Squeegee hose |
1 |
|
|
18 |
202-5569
|
Rear sight tube |
1 |
|
|
19 |
202-5646
|
Tank utility handle |
1 |
|
|
20 |
202-5650
|
Rubber gasket |
1 |
|
|
21 |
202-5648
|
4 inch hinge stainless steel |
1 |
(hinge does not come apart) |
|
22 |
202-5655
|
Tank lid assembly |
1 |
|
|
23 |
202-5651
|
Vacuum inlet screen |
1 |
|
|
24a |
202-5652
|
Vacuum inlet gasket |
1 |
(rounded corner) |
|
24b |
302-0266
|
Solution fill gasket (round) |
1 |
(round) |
|
25 |
202-5653
|
Small drain saver basket |
1 |
|
|
27 |
202-0383
|
Strobe light |
1 |
|
|
28 |
202-0231
|
Filter screen |
1 |
|
|
29 |
202-3256
|
Hose clamp |
1 |
|
|
30 |
999-0429
|
Nut 1/4-20 acorn nickel plated |
3 |
|
|
31 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
1 |
|
|
32 |
999-1928
|
Nut 1/2 inch lock brass |
1 |
|
|
33 |
999-1929
|
Pipe cap 1/2 inch female brass |
1 |
|
|
34 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
35 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
|
36 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
7 |
|
|
37 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
2 |
|
|
38 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
39 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
7 |
|
|
40 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
41 |
999-0632
|
Washer 1/4 split lock stainless steel |
5 |
|
|
42 |
999-1290
|
Screw #14 x 1 truss head phillips stainless steel |
6 |
|
|
43 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
4 |
|
|
44 |
202-2122
|
Screw 10-32 x 5/8 inch phillips pan head |
5 |
|
|
45 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
2 |
|
|
46 |
999-1930
|
Screw #6-18 x 3/8 phillips pan head SS |
4 |
|
|
47 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
3 |
|
|
48 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
3 |
|
|
49 |
202-3244
|
Neoprene washer |
1 |
|
|
50 |
202-2592
|
Grommet |
1 |
|
|
51 |
202-3439
|
Male brass fitting |
1 |
|
|
52 |
202-5655
|
Tank lid assembly |
1 |
|
|
53a |
202-5656
|
Recovery tank (red) |
1 |
|
|
53b |
202-3573
|
Recovery tank (granite) |
1 |
|
|
