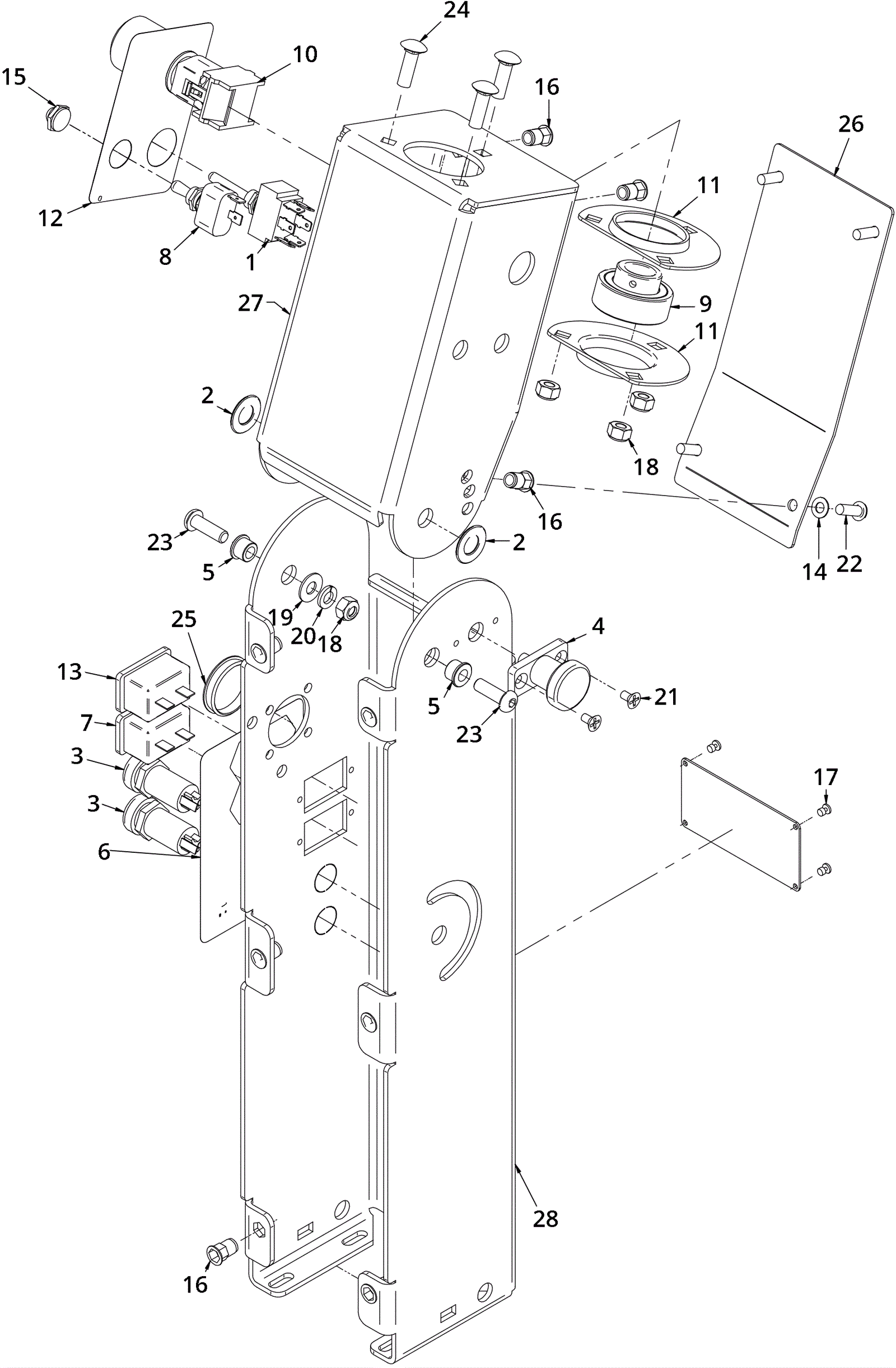

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5396
|
Toggle switch |
1 |
|
|
2 |
202-1181
|
Washer 1/2 flat bronze |
2 |
|
|
3 |
202-2300
|
Key switch with key entry (red) and ring (black) |
2 |
|
|
4 |
202-0719
|
Index plunger |
1 |
|
|
5 |
202-3312
|
Flanged bearing |
2 |
|
|
6 |
202-3313
|
Hour meter decal |
1 |
|
|
7 |
202-5155
|
Hour meter |
1 |
|
|
8 |
202-0097
|
Toggle switch |
1 |
|
|
9 |
202-0142
|
Upper steering bearing |
1 |
|
|
10 |
202-0826
|
Emergency shut-off switch |
1 |
|
|
11 |
202-5619
|
1 3/4 inch flange |
2 |
|
|
12 |
202-8270
|
Decal, frame |
1 |
|
|
13 |
202-0376
|
Hour meter |
1 |
|
|
14 |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
4 |
|
|
15 |
202-1355
|
Toggle switch protective boot (black) |
1 |
|
|
16 |
999-0190
|
Nut 1/4-20 hex plain finish |
10 |
|
|
17 |
202-3315
|
Blind rivet |
4 |
|
|
18 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
5 |
|
|
19 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
20 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
21 |
999-1509
|
Screw 10-32 x 3/8 flat head phillips stainless steel |
2 |
|
|
22 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
4 |
|
|
23 |
999-1507
|
Screw 5/16-18 x 1 button head socket stainless steel |
2 |
|
|
24 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
3 |
|
|
25 |
202-9516
|
Plug,1-3/8 inchIDx1-1/2 inchHead Dia. Black |
1 |
|
|
26a |
202-5696
|
Steering pedestal cover (granite) |
1 |
|
|
26b |
202-5697
|
Steering pedestal cover (red) |
1 |
|
|
27a |
202-5694
|
Upper steering tower (granite) |
1 |
|
|
27b |
202-5695
|
Upper steering tower (red) |
1 |
|
|
28a |
202-5698
|
Lower steering pedestal (granite) |
1 |
|
|
28b |
202-5699
|
Lower steering pedestal (red) |
1 |
|
|
