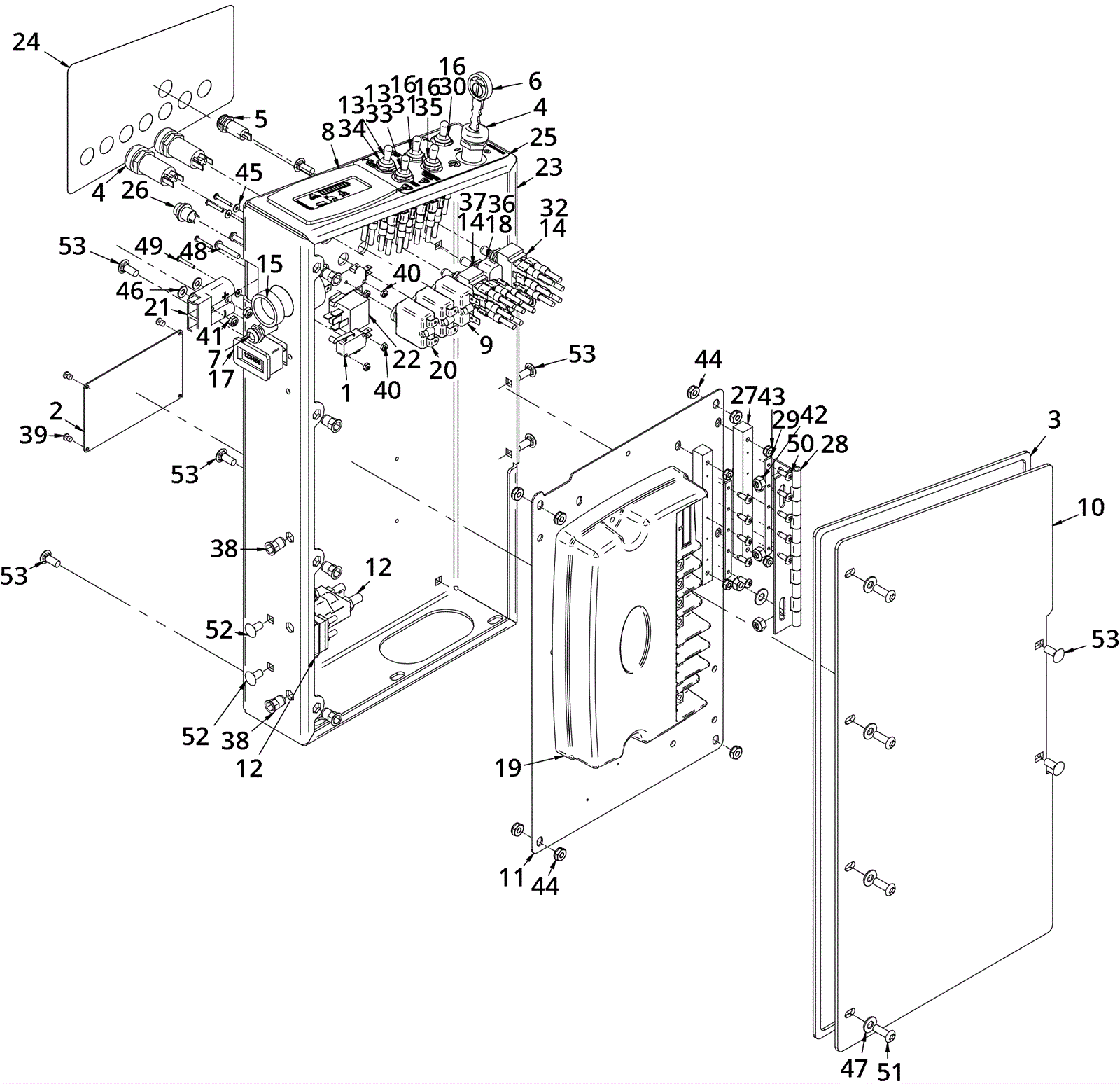

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-0721
|
Microswitch |
2 |
|
|
2 |
202-5610
|
36V battery warning plate |
1 |
|
|
3 |
202-0818
|
Access cover gasket |
1 |
|
|
4 |
202-2300
|
Key switch with key entry (red) and ring (black) |
3 |
|
|
5 |
202-7203
|
Light,24V,Green,Bulb Style |
1 |
|
|
6 |
991-1634
|
Key (pkg of 2) |
1 |
|
|
7 |
202-7204
|
Light,24V,Yellow,Bulb Style |
1 |
|
|
8 |
202-1317
|
LCD window display |
1 |
|
|
9 |
202-7595
|
Breaker,4a |
1 |
|
|
10 |
202-3311
|
Access cover (red) |
1 |
|
|
11 |
202-3305
|
Hardware panel (black) |
1 |
|
|
12 |
202-3307
|
36V relay with mounting plate |
1 |
|
|
13 |
202-0521
|
Toggle switch |
2 |
|
|
14 |
202-3340
|
Toggle switch |
2 |
|
|
15 |
202-3377
|
Central command alarm |
1 |
|
|
16 |
202-1992
|
Toggle switch |
3 |
|
|
17 |
202-5155
|
Hour meter |
1 |
|
|
18 |
202-0097
|
Toggle switch |
1 |
|
|
19 |
202-1369
|
Main controller |
1 |
|
|
20 |
202-2499
|
15amp fuse |
2 |
|
|
21 |
202-2009
|
50amp connector (gray) |
1 |
|
|
22 |
202-0348
|
15amp relay |
1 |
|
|
23 |
202-8230
|
Control Panel, Pilot |
1 |
|
|
24 |
202-8269
|
Decal, Central Command |
1 |
(front) |
|
25 |
202-8269
|
Decal, Central Command |
1 |
(top) |
|
26 |
202-0879
|
Push button switch |
1 |
|
|
27 |
202-0541
|
Busbar |
2 |
|
|
28 |
202-0704
|
Hinge |
1 |
|
|
29 |
202-0830
|
Busbar (5 hole) |
2 |
|
|
30 |
202-1864
|
Toggle switch protective boot (red) |
1 |
|
|
31 |
202-1977
|
Toggle switch protective boot (yellow) |
1 |
|
|
32 |
202-1866
|
Toggle switch protective boot (green) |
1 |
|
|
33 |
202-1865
|
Toggle switch protective boot (blue) |
1 |
|
|
34 |
202-1355
|
Toggle switch protective boot (black) |
1 |
|
|
35 |
202-2221
|
Toggle switch protective boot (gray) |
1 |
|
|
36 |
202-3465
|
Toggle switch protective boot (orange) |
1 |
|
|
37 |
202-9214
|
Boot,Toggle Switch,Purple |
1 |
|
|
38 |
999-0190
|
Nut 1/4-20 hex plain finish |
6 |
|
|
39 |
202-3315
|
Blind rivet |
4 |
|
|
40 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
4 |
|
|
41 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
2 |
|
|
42 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
|
43 |
999-1464
|
Nut 8-32 keps lock with external tooth lockwasher ss |
4 |
|
|
44 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
10 |
|
|
45 |
202-2461
|
Washer 4 x 5/16 flat stainless steel |
4 |
|
|
46 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
47 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
|
48 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
6 |
|
|
49 |
202-2371
|
Screw 4-40 x 3/4 round pan head |
4 |
|
|
50 |
999-1919
|
#8-15 x 1/2 phillips pan head sheet metal SS |
10 |
|
|
51 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
4 |
|
|
53 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
9 |
|
|
