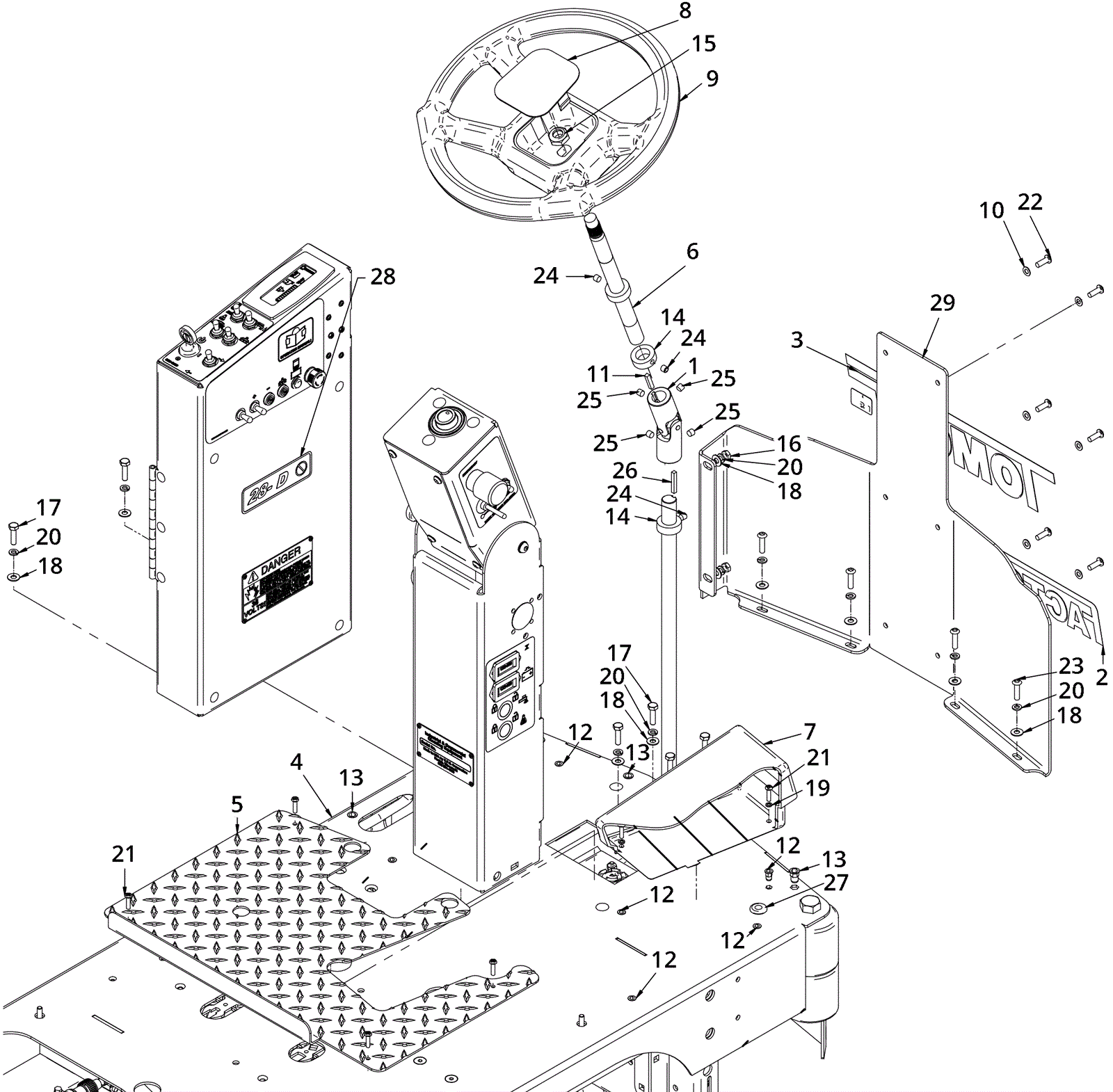

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-0760
|
U-joint |
1 |
|
|
2 |
202-0436
|
Tomcat front decal |
1 |
|
|
3 |
202-3322
|
Tomcat decal |
1 |
|
|
4 |
202-5561
|
Main frame (OBSOLETE) |
1 |
|
|
5 |
202-5607
|
Non skid floor plate |
1 |
|
|
6 |
202-5608
|
Upper steering shaft |
1 |
|
|
7 |
202-0362
|
Foot pedal assembly (includes potentiometer) |
1 |
|
|
8 |
202-0773
|
Steering cover |
1 |
|
|
9 |
202-0772
|
Steering wheel |
1 |
|
|
10 |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
6 |
|
|
11 |
202-0847
|
Square keyway |
1 |
|
|
12 |
202-2589
|
Nut 10-32 crimp hex |
8 |
|
|
13 |
999-0190
|
Nut 1/4-20 hex plain finish |
14 |
|
|
14 |
202-2216
|
Shaft collar with set screw |
3 |
|
|
15 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
1 |
|
|
16 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
6 |
|
|
17 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
6 |
|
|
18 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
14 |
|
|
19 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
20 |
999-0632
|
Washer 1/4 split lock stainless steel |
14 |
|
|
21 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
5 |
|
|
22 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
6 |
|
|
23 |
999-1294
|
Screw 1/4-20 x 1 button head socket cap stainless steel |
4 |
|
|
24 |
999-0346
|
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
3 |
|
|
25 |
999-1837
|
Screw 5/16-24 1/4 knurled point socket set |
4 |
|
|
26 |
202-0140
|
Steering shaft key |
1 |
|
|
27 |
202-3348
|
Rubber grommet |
1 |
|
|
28a |
202-5685
|
20-D decal |
1 |
|
|
28b |
202-5686
|
26-D decal |
1 |
|
|
28c |
202-5687
|
28-D decal |
1 |
|
|
28d |
202-5688
|
24-E decal |
1 |
|
|
28e |
202-5689
|
28-E decal |
1 |
|
|
29a |
202-5690
|
Front apron (granite) |
1 |
|
|
29b |
202-5691
|
Front apron (red gloss) |
1 |
|
|
