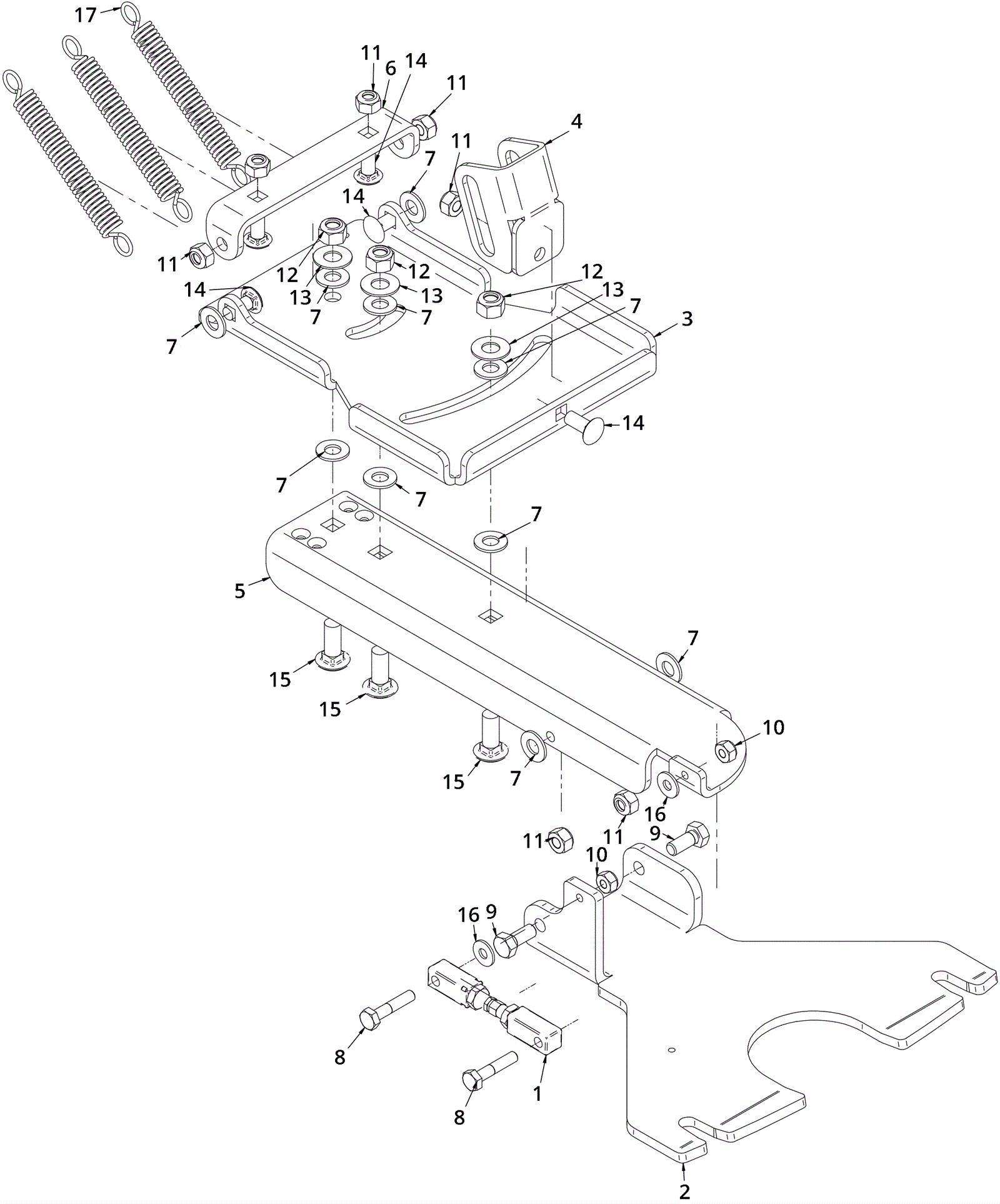

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-6432
|
Body, Adjustable Lateral Arm Assy |
1 |
|
|
2 |
202-7055
|
Plate,Triangle,Squeegee |
1 |
|
|
3 |
202-8254
|
Plate, Squeegee Swing |
1 |
|
|
4 |
202-8255
|
Bracket, Squeegee Actuator |
1 |
|
|
5 |
202-8256
|
Arm, Squeegee Trail |
1 |
|
|
6 |
202-8266
|
Bracket, Squeegee Drag, Mounting |
1 |
|
|
7 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
10 |
|
|
8 |
999-0298
|
Bolt 1/4-20 x 1 1/4 hex head stainless steel |
2 |
|
|
9 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
10 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
11 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
7 |
|
|
12 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
3 |
|
|
13 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
3 |
|
|
14 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
5 |
|
|
15 |
202-2832
|
Bolt 3/8 - 16 x 1 carriage head stainless steel |
3 |
|
|
16 |
999-0563
|
Washer 1/4 x 1/16 flat nylon |
2 |
|
|
17 |
202-2208
|
Compression spring |
3 |
|
|
