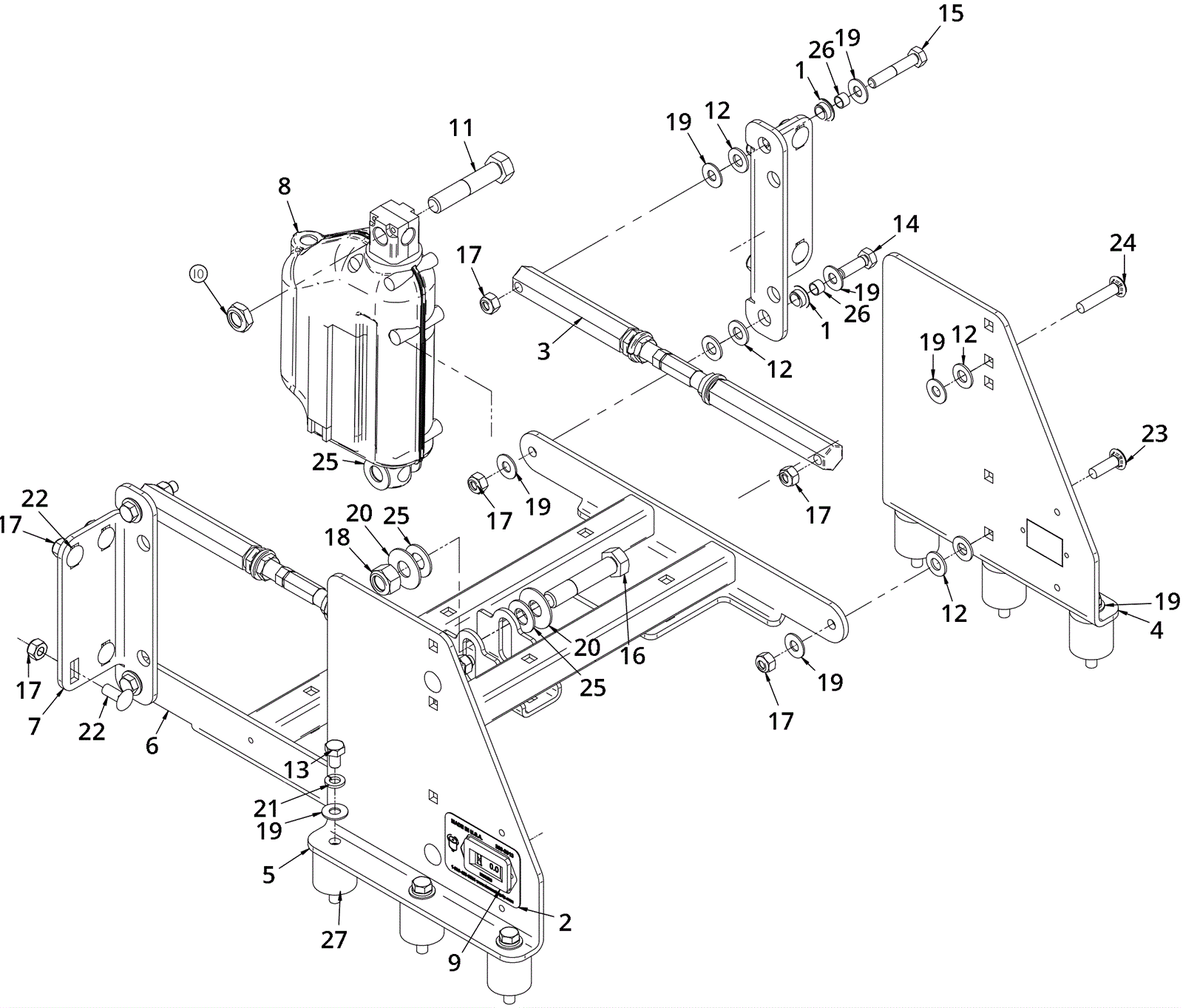

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-1239
|
Flanged bearing |
4 |
|
|
2 |
202-5091
|
Isolator decal |
1 |
|
|
3 |
202-5099
|
Adjustable lateral arm assembly |
2 |
|
|
4 |
202-5100
|
Left side deck lifting bracket |
1 |
|
|
5 |
202-5101
|
Right side deck lifting bracket |
1 |
|
|
6 |
202-5102
|
Lateral arm |
1 |
|
|
7 |
202-5103
|
Adjustable arm bracket |
2 |
|
|
8 |
202-5589
|
36V actuator |
1 |
|
|
9 |
202-0376
|
Hour meter |
1 |
|
|
10 |
999-9119
|
Nut 1/2-13 nylon hex jam |
1 |
|
|
11 |
999-0261
|
Bolt 1/2-13 x 2 hex head grade 5 |
1 |
|
|
12 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
12 |
|
|
13 |
999-0547
|
Bolt 5/16-18 x 1/2 hex head stainless steel |
6 |
|
|
14 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
15 |
999-0551
|
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
2 |
|
|
16 |
999-1113
|
Bolt 1/2-13 x 2 1/2 hex cap stainless steel |
1 |
|
|
17 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
16 |
|
|
18 |
999-1208
|
Nut 1/2-13 nylon insert lock stainless steel |
1 |
|
|
19 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
18 |
|
|
20 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
21 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
6 |
|
|
22 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
8 |
|
|
23 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
2 |
|
|
24 |
999-1370
|
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
2 |
|
|
25 |
999-0566
|
Washer 1/2 flat nylon |
4 |
|
|
26 |
202-3128
|
Sleeved bearing |
4 |
|
|
27 |
202-5111
|
Isolator kit (pkg of 6) |
1 |
(includes isolators, bolts, washers, lock washers, and nylock nuts) |
|
