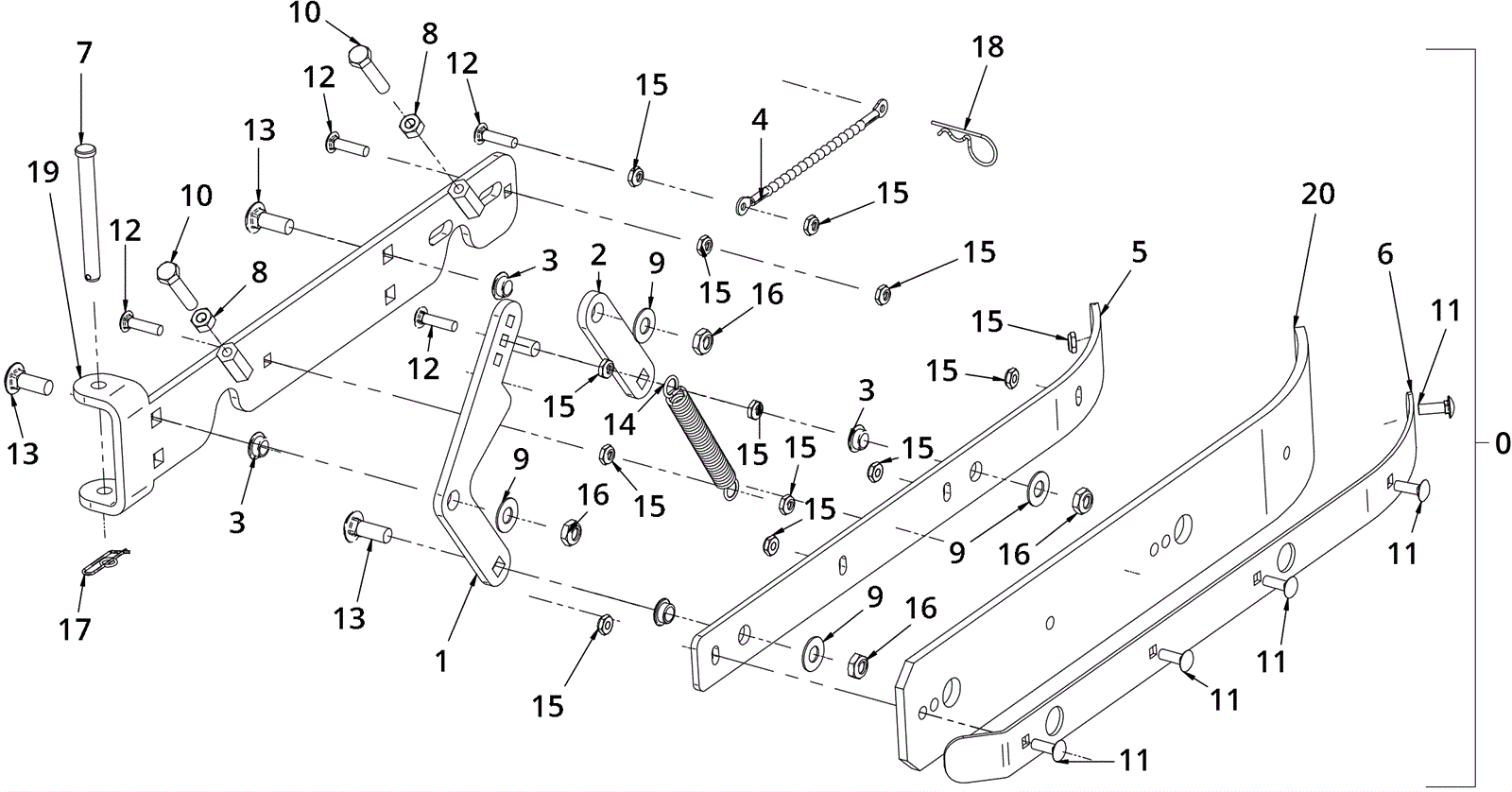

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
202-5708
|
Left hand wiper assembly |
1 |
(includes 1-18, 19a, 20a) |
|
0b |
202-5709
|
Right hand wiper assembly |
1 |
(includes 1-18, 19b, 20a) |
|
1 |
202-5121
|
Vertical arm |
1 |
|
|
2 |
202-5701
|
Vertical wiper arm |
1 |
|
|
3 |
202-1239
|
Flanged bearing |
4 |
|
|
4 |
202-3127
|
4 inch chain (6 inch no longer available) |
1 |
|
|
5 |
202-8217
|
Arm, Side Wiper |
1 |
|
|
6 |
202-8219
|
Band, Wiper |
1 |
|
|
7 |
999-1633
|
Clevis pin 3/8 x 3 1/2 |
1 |
|
|
8 |
999-0593
|
Nut 5/16-18 hex stainless steel |
2 |
|
|
9 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
4 |
|
|
10 |
999-1634
|
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
2 |
|
|
11 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
5 |
|
|
12 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
4 |
|
|
13 |
202-2832
|
Bolt 3/8 - 16 x 1 carriage head stainless steel |
4 |
|
|
14 |
202-2208
|
Compression spring |
1 |
|
|
15 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
13 |
|
|
16 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
4 |
|
|
17 |
202-2036
|
Cotter pin |
1 |
|
|
18 |
202-3129
|
Cotter pin |
1 |
|
|
19a |
202-5704
|
Left hand horizontal wiper arm |
1 |
|
|
19b |
202-5705
|
Right hand horizontal wiper arm |
1 |
|
|
20a |
202-8218
|
Wiper., Cylindrical Blade linatex |
1 |
|
|
20b |
202-3617
|
Side wiper gum rubber |
1 |
(optional) |
|
