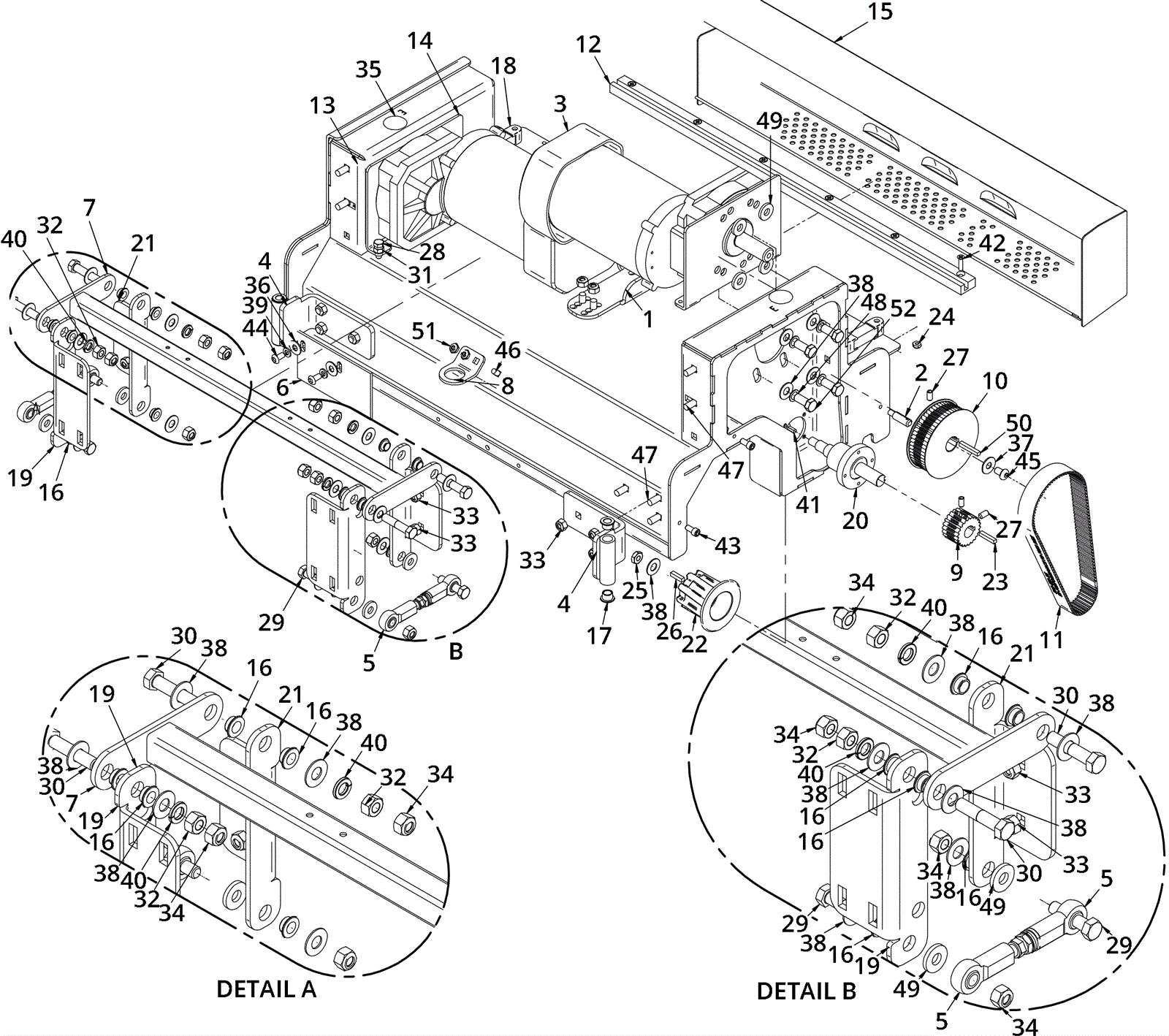

PRO Cylindrical Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-6095 Bracket, Deck Lifting $47.41 1 usually ships 3-11 days
2 202-3136 Retaining pin $18.70 2 usually ships 3-11 days
3 202-3616 36V motor Call for price 2 usually ships 3-11 days
4 202-3137 Hinge $70.62 2 usually ships 3-11 days
5 202-5700 Adjustable arm assembly $69.74 2 usually ships 3-11 days
6 202-3139 Curtain blade $7.04 1 usually ships 3-11 days
7 202-5127 Lateral arm $139.04 1 usually ships 1-5 days
8 202-4022 Quick disconnect bracket $11.66 1 usually ships 3-11 days
9 202-7058 Sprocket, Timing, 26 Tooth $215.27 2 usually ships 3-11 days
10 202-7059 Sprocket, Timing, 56 Tooth $233.09 2 usually ships 3-11 days
11 202-7060 Belt, Cylindrical $105.60 2 ships same day
12 202-7061 Hopper Rail, 25 inch $74.58 1 usually ships 3-11 days
13 202-7069 Brushhead, Cylindrical, 25 inch $617.76 1 usually ships 3-11 days
14 202-7071 Bracket, Motor Adjustment $65.56 2 usually ships 3-11 days
15 202-7079 Hopper, 25 inch $378.91 1 usually ships 3-11 days
16 202-1239 Flanged bearing $5.50 12 usually ships 3-11 days
17 202-0754 Flanged bearing $5.50 4 usually ships 3-11 days
18 202-5098 2 inch bolt on level $5.50 2 usually ships 3-11 days
19 202-5103 Adjustable arm bracket $177.23 2 usually ships 1-5 days
20 202-3146 Bearing housing $161.48 2 usually ships 3-11 days
21 202-8216 Bracket, Cylindrical, 25 inch $26.73 2 usually ships 3-11 days
22 202-8374 Driver, Cylindrical Spiral, 8 Spline, Alum HC W/Gasket $129.58 2 ships same day
23 202-0847 Square keyway $5.50 2 usually ships 3-11 days
24 999-1269 Nut 10-32 nylon insert jam stainless steel $0.99 6 usually ships 11-24 days
25 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 2 ships same day
26 202-3153 Square keyway $5.50 2 usually ships 3-11 days
27 999-1468 Screw 1/4-20 x 1/2 knurled point set alloy steel $0.99 8 ships same day
28 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
29 202-1970 Bolt 3/8-16 x 1-1/2 hex head stainless steel $5.50 4 usually ships 3-11 days
30 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 4 ships same day
31 999-0609 Nut 1/4-20 hex stainless steel $0.99 4 ships same day
32 999-0635 Nut 3/8-16 hex stainless steel $0.99 4 ships same day
33 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 14 ships same day
34 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 8 ships same day
35 202-2244 Hole plug 7/8 $5.50 2 usually ships 1-5 days
36 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
37 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
38 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 22 ships same day
39 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
40 999-0659 Washer 3/8 medium split lock stainless steel $0.39 4 ships same day
41 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel $0.99 8 ships same day
42 999-1189 Screw 10-32 x 3/4 flat head phillips stainless steel $0.99 6 ships same day
43 202-3157 Screw 1/4 x 1/4 inch socket head stainless steel $5.50 4 usually ships 3-11 days
44 202-3109 Screw 1/4 x 5/8 button head socket stainless steel $5.50 2 usually ships 3-11 days
45 999-1459 Screw 5/16-18 x 1/2 button socket head stainless steel $0.99 2 ships same day
47 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 14 ships same day
48 202-3158 Washer 3/8 inch serrated stainless steel $8.58 8 usually ships 1-5 days
49 999-0120 Washer 3/8 SAE flat $0.99 12 ships same day
50 202-0140 Steering shaft key $5.50 2 usually ships 3-11 days
51 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 5 ships same day
52 999-1469 Screw 3/8-24 x 7/8 hex head zinc plated $0.99 8 usually ships 1-5 days
