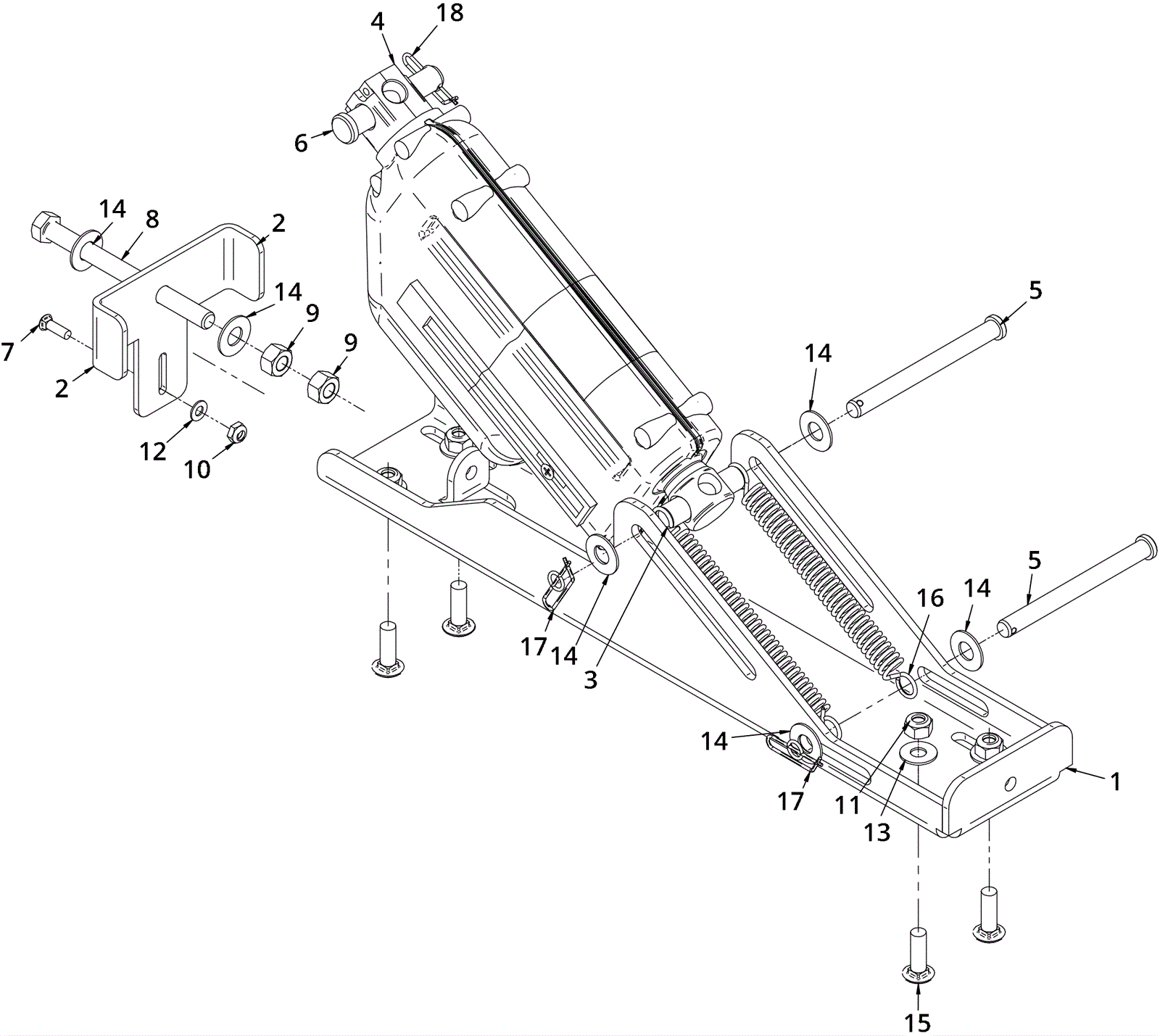

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-1942
|
Bracket |
1 |
|
|
2 |
202-5587
|
Disk deck height adjustment |
1 |
|
|
3 |
202-3089
|
Sleeved bearing |
1 |
|
|
4 |
202-5588
|
36V actuator |
1 |
|
|
5 |
202-1968
|
Clevis pin |
2 |
|
|
6 |
202-4141
|
Clevis pin 1/2 x 2 1/2 inch |
1 |
|
|
7 |
999-1508
|
Bolt 10-32 x 5/8 round carriage head stainless steel |
1 |
|
|
8 |
202-3095
|
Bolt 3/8 x 4 1/2 hex head full thread stainless steel |
1 |
|
|
9 |
999-0635
|
Nut 3/8-16 hex stainless steel |
2 |
|
|
10 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
1 |
|
|
11 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
12 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
13 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
14 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
6 |
|
|
15 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
4 |
|
|
16 |
202-2208
|
Compression spring |
2 |
|
|
17 |
202-2036
|
Cotter pin |
2 |
|
|
18 |
202-2059
|
Cotter ring |
1 |
|
|
