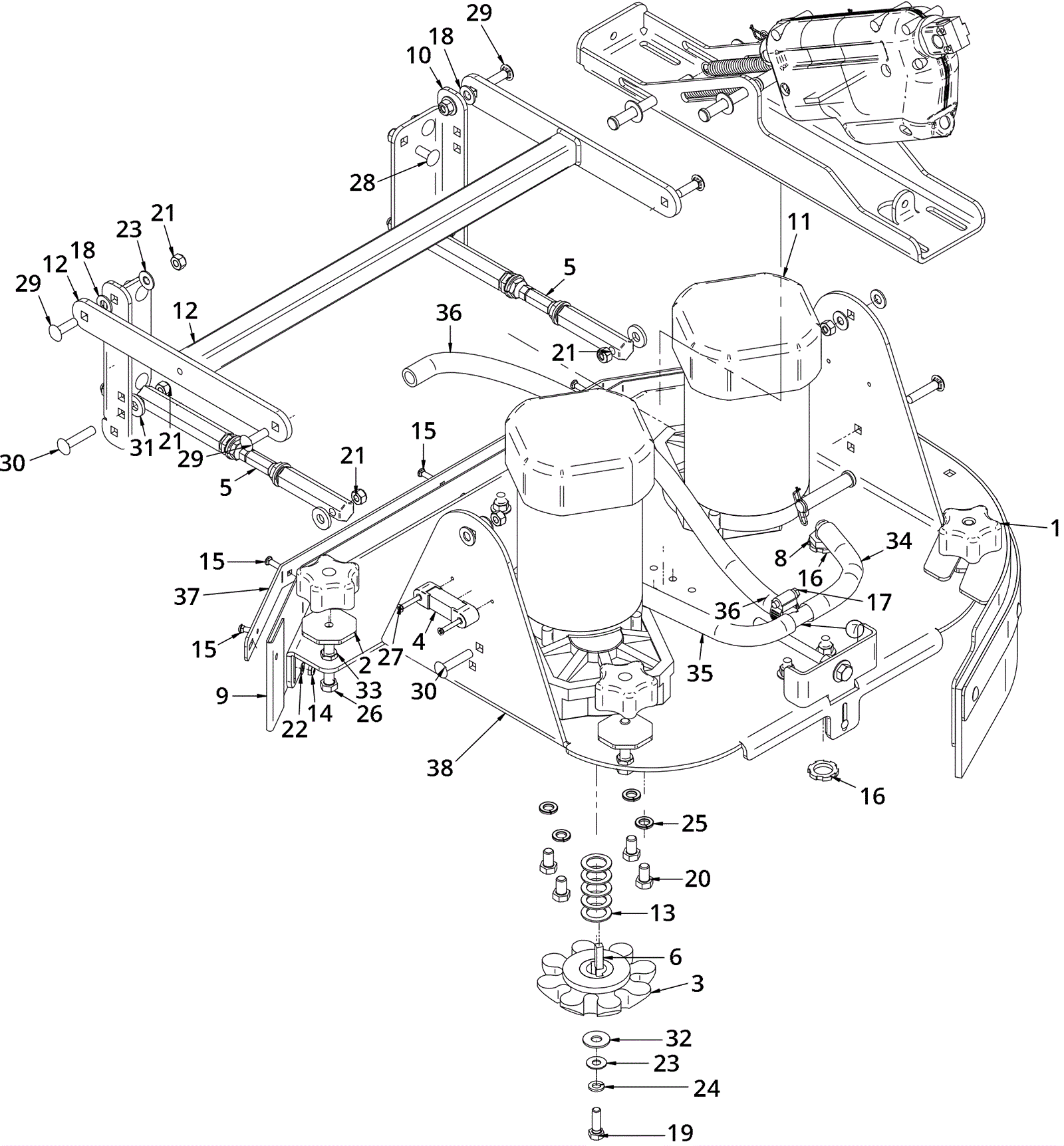

PRO Disk Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-5078 Star knob $14.63 4 ships same day
2 202-5080 Adjustment knob shroud $16.17 4 usually ships 3-11 days
3 202-7038 Driver, Brush, Rounded Tooth, Aluminum w/ Insert, Hard coate $150.59 2 usually ships 3-11 days
4 202-5098 2 inch bolt on level $5.50 2 usually ships 3-11 days
5 202-5099 Adjustable lateral arm assembly $109.45 2 usually ships 3-11 days
6 202-0331 Brush driver key (pkg of 2) $9.90 2 ships same day
7 202-0332 1/2 inch barbed tee $5.50 1 ships same day
8 202-0333 Elbow barb $5.50 2 ships same day
9 202-5582 Front deck curtain $71.50 1 usually ships 3-11 days
10 202-5583 Scrub arm bracket $31.79 2 usually ships 1-5 days
11 202-5579 36V motor $1,311.86 2 usually ships 3-11 days
12 202-5585 Lateral arm $80.63 1 usually ships 1-5 days
13 202-1204 Washer 3/4 x 1 1/8 flat stainless steel $5.50 10 usually ships 3-11 days
14 999-1269 Nut 10-32 nylon insert jam stainless steel $0.99 5 usually ships 11-24 days
15 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel $0.99 5 usually ships 1-5 days
16 999-0330 Nut 1/2-13 acorn brass $5.72 4 ships same day
17 202-0680 Hose clamp $5.50 1 usually ships 3-11 days
18 202-2210 Washer 3/8 x 3/4 flat nylon $5.50 4 usually ships 3-11 days
19 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
20 999-1856 Screw 3/8-24 x 5/8 hex cap stainless steel $2.10 8 usually ships 11-24 days
21 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 16 ships same day
22 999-0998 Washer #10 flat stainless steel $0.99 5 ships same day
23 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
24 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
25 999-0659 Washer 3/8 medium split lock stainless steel $0.39 8 ships same day
27 999-1603 Screw 8-32 x 1 flat head phillips SS $0.99 4 ships same day
28 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 8 ships same day
29 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel $1.34 4 ships same day
30 999-1370 Bolt 5/16-18 x 1 1/2 carriage head stainless steel $0.99 4 usually ships 1-5 days
31 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
32 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
33 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel $1.52 4 ships same day
34 202-5148 Tubing 1/2 x 9 inch $5.02 1 usually ships 1-5 days
35 202-5536 Hose (OBSOLETE) $17.27 1 usually ships 1-5 days
36 202-5586 Solution hose (OBSOLETE) Call for price 1 usually ships 1-5 days
37a 202-5661 26 inch front curtain band $43.89 1 usually ships 1-5 days
37b 202-5662 28 inch front curtain band $46.86 1 usually ships 1-5 days
38a 202-5659 26 inch scrub deck $326.48 1 usually ships 3-11 days
38b 202-5660 28 inch scrub deck $370.92 1 usually ships 1-5 days
