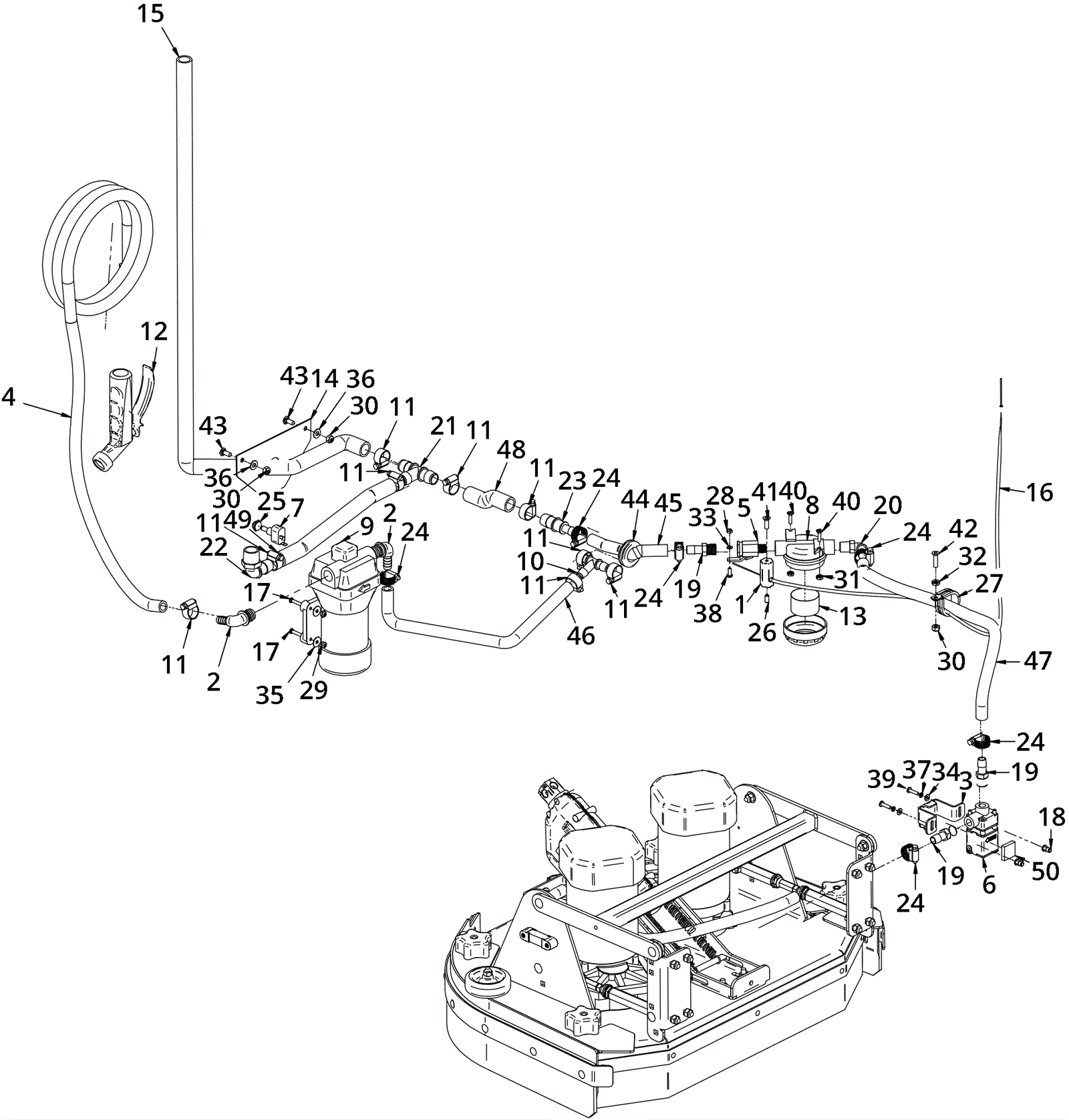

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5567
|
Cable guide |
1 |
|
|
2 |
202-1008
|
Barbed elbow |
2 |
|
|
3 |
202-3058
|
Valve bracket |
1 |
|
|
4 |
202-0104
|
18 foot rubber hose (blue) |
1 |
|
|
5 |
202-3057
|
Ball valve |
1 |
|
|
6 |
202-3038
|
36V solenoid valve |
1 |
|
|
7 |
202-0097
|
Toggle switch |
1 |
|
|
8 |
202-3234
|
Inline filter |
1 |
|
|
9 |
202-2368
|
36V water jet pump |
1 |
|
|
10 |
202-0332
|
1/2 inch barbed tee |
1 |
|
|
11 |
202-1031
|
Clamp |
9 |
|
|
12 |
202-0103
|
Spray nozzle |
1 |
|
|
13 |
202-2874
|
Filter screen |
1 |
|
|
14 |
202-5568
|
Rear frame curtain |
1 |
|
|
15 |
202-5569
|
Rear sight tube |
1 |
|
|
16 |
202-5570
|
Pilot valve cable |
1 |
|
|
17 |
999-1570
|
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
3 |
|
|
18 |
202-2589
|
Nut 10-32 crimp hex |
2 |
|
|
19 |
202-3236
|
Threaded barb |
3 |
|
|
20 |
202-3059
|
Elbow barb |
1 |
|
|
21 |
202-5571
|
3/4 inch plastic barb tee |
1 |
|
|
22 |
202-0884
|
Barbed elbow |
1 |
|
|
23 |
202-5145
|
Coupling |
1 |
|
|
24 |
202-0680
|
Hose clamp |
6 |
|
|
25 |
202-1865
|
Toggle switch protective boot (blue) |
1 |
|
|
26 |
999-1468
|
Screw 1/4-20 x 1/2 knurled point set alloy steel |
1 |
|
|
27 |
202-3175
|
P clamp |
1 |
|
|
28 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
1 |
|
|
29 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
1 |
|
|
30 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
|
31 |
202-2067
|
Nut 10-32 keps |
1 |
|
|
32 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
1 |
|
|
33 |
999-0266
|
Washer #8 SAE flat stainless steel |
1 |
|
|
34 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
35 |
202-3316
|
Washer flat stainless steel |
1 |
|
|
36 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
37 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
38 |
202-2621
|
Screw 6-32 x 1/2 round head phillips |
1 |
|
|
39 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
1 |
|
|
40 |
999-1189
|
Screw 10-32 x 3/4 flat head phillips stainless steel |
2 |
|
|
41 |
999-1571
|
Screw 1/4-20 x 3/4 flat head socket stainless steel |
1 |
|
|
42 |
202-3539
|
Screw 1/4-20 x 1 fillister head stainless steel |
1 |
|
|
43 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
2 |
|
|
44 |
202-2592
|
Grommet |
1 |
|
|
45 |
202-5206
|
Valve filter (OBSOLETE) |
1 |
|
|
46 |
202-5148
|
Tubing 1/2 x 9 inch |
1 |
|
|
47 |
202-5573
|
Tubing 1/2 x 23 inch |
1 |
|
|
48 |
202-5574
|
Tubing 3/4 x 5 inch |
1 |
|
|
49 |
202-5575
|
Tubing 3/4 x 14 inch (OBSOLETE) |
1 |
|
|
50 |
202-5208
|
Valve pad |
1 |
|
|
