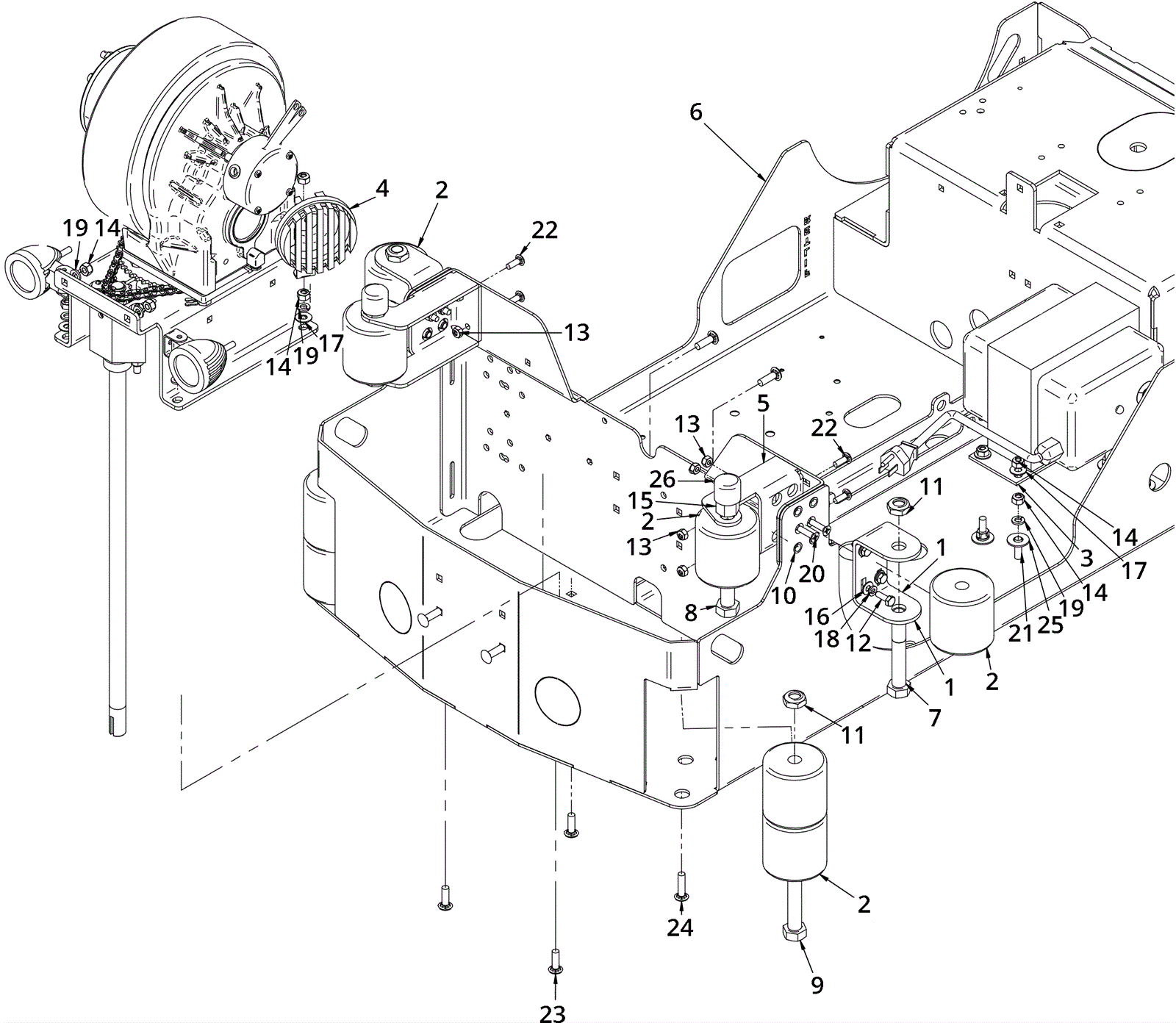

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-0976
|
20 inch roller bracket |
2 |
|
|
2 |
202-0756
|
Guide roller |
8 |
|
|
3 |
202-1877
|
36V 35amp onboard battery charger |
1 |
|
|
4 |
202-3082
|
Horn |
1 |
|
|
5 |
202-5560
|
Lower roller bracket |
2 |
|
|
6 |
202-5561
|
Main frame (OBSOLETE) |
1 |
|
|
7 |
999-1209
|
Bolt 5/8-11 x 4 hex head zinc plated |
2 |
|
|
8 |
999-1209
|
Bolt 5/8-11 x 4 hex head zinc plated |
2 |
|
|
9 |
999-6723
|
Bolt 5/8-11 x 7 hex head grade 5 zinc plated |
1 |
|
|
10 |
999-0190
|
Nut 1/4-20 hex plain finish |
8 |
|
|
11 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
3 |
|
|
12 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
3 |
|
|
13 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
|
14 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
12 |
|
|
15 |
999-0704
|
Nut 5/8-11 nylon insert lock stainless steel |
2 |
|
|
16 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
17 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
5 |
|
|
18 |
999-0632
|
Washer 1/4 split lock stainless steel |
3 |
|
|
19 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
9 |
|
|
20 |
999-1345
|
Screw 1/4-20 x 1 flat head phillips stainless steel |
4 |
|
|
21 |
202-2343
|
Screw 5/16-18 x 1 1/4 flat head stainless steel |
4 |
|
|
22 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
4 |
|
|
23 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
7 |
|
|
24 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
1 |
|
|
25 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
4 |
|
|
26 |
202-5562
|
Bolt 15/16 inch plastic hex cap |
2 |
|
|
