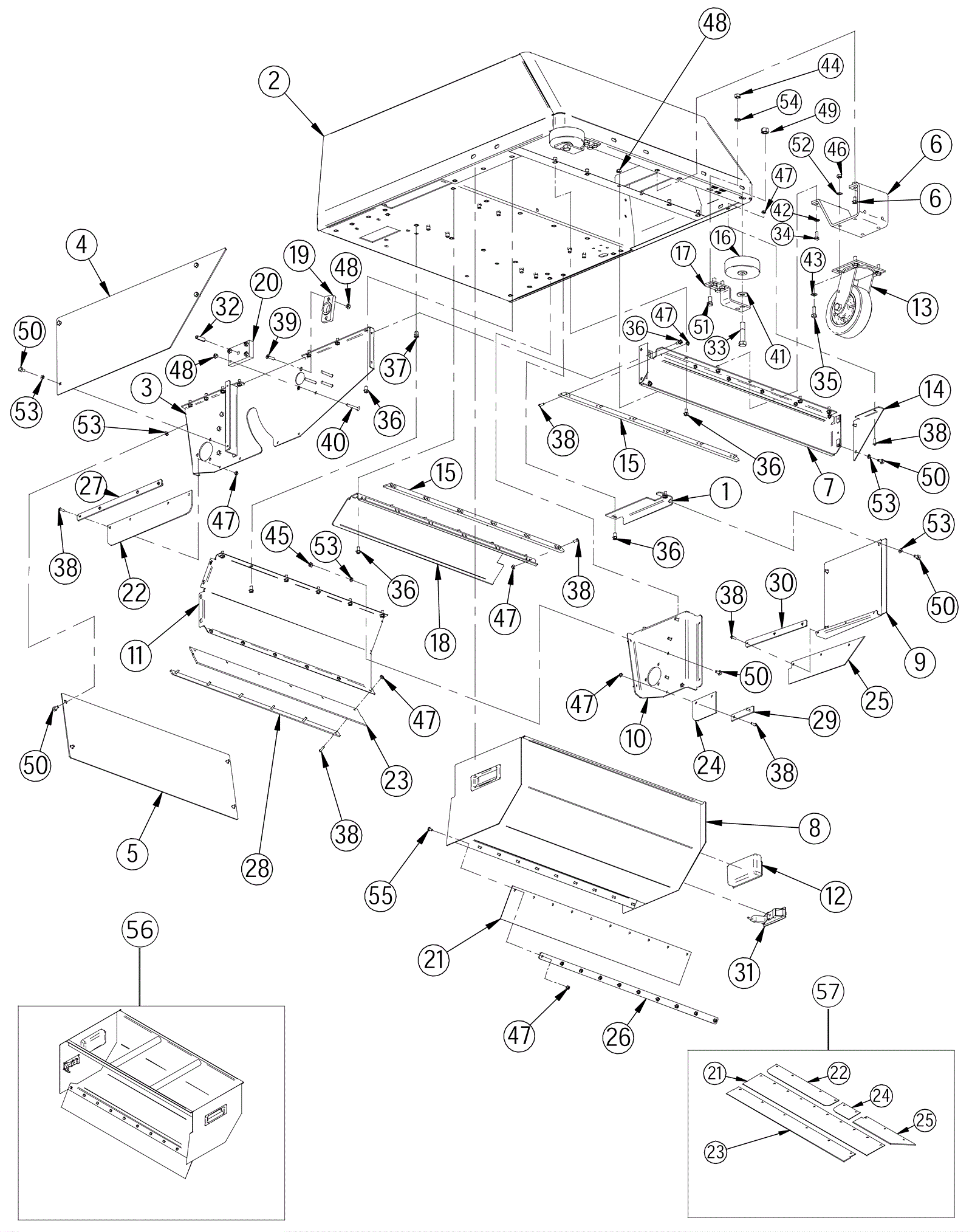

3300 Lower Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-2711 Door mount angle $45.65 1 usually ships 1-5 days
2 202-2673 Main body $1,890.35 1 usually ships 1-5 days
3 202-2710 Right inner side panel $171.05 1 usually ships 1-5 days
4 202-2517 Right skirt plate $102.08 1 usually ships 1-5 days
5 202-2712 Rear skirt plate $92.07 1 usually ships 1-5 days
6 202-2713 Caster mounting bracket $72.93 1 usually ships 1-5 days
7 202-2714 Front cross panel $108.68 1 usually ships 1-5 days
8 202-2715 Hopper body $407.99 1 usually ships 8-13 days
9 202-2716 Broom access hatch $70.73 1 usually ships 1-5 days
10 202-2717 Rear inner panel $129.47 1 usually ships 1-5 days
11 202-2718 Inner curved panel $112.86 1 usually ships 1-5 days
12 202-0308 Handle $24.09 2 usually ships 8-13 days
13a 202-0461 Caster wheel assembly (black) $198.99 1 usually ships 8-13 days
13b 202-1321 Caster wheel assembly (gray) $143.22 1 usually ships 8-13 days
14 202-2719 Panel, Lower Front Cross Panel Gussett $45.65 1 usually ships 1-5 days
15 202-2720 Hopper slide $47.85 2 usually ships 1-5 days
16 202-2721 Roller $28.82 2 ships same day
17 202-2722 Roller bracket $28.16 2 usually ships 8-13 days
18 202-2723 Attenuator plate $112.75 1 usually ships 1-5 days
19 202-2724 Support block $45.65 1 usually ships 8-13 days
20 202-2725 Broom mounting block $22.55 1 usually ships 1-5 days
21 202-2726 Hopper floor seal $21.12 1 usually ships 8-13 days
22 202-2727 Right floor seal $19.47 1 usually ships 8-13 days
23 202-2728 Rear floor seal $32.45 1 usually ships 8-13 days
24 202-2730 Broom floor seal $13.42 1 usually ships 8-13 days
25 202-2730 Broom floor seal $13.42 1 usually ships 8-13 days
26 202-2731 Hopper seal strip $33.11 1 usually ships 8-13 days
27 202-2732 Righthand seal strip $16.72 1 usually ships 8-13 days
28 202-2733 Rear seal strip $29.81 1 usually ships 8-13 days
29 202-2734 Corner seal strip $9.02 1 usually ships 8-13 days
30 202-0474 Curtain clamp $16.94 1 usually ships 8-13 days
31 202-0404 Latch $51.04 1 usually ships 8-13 days
32 202-5304 Spring roll pin $5.50 1 usually ships 8-13 days
33 202-2736 Bolt 1/2 inch -13 x 2 1/2 inch hex (OBSOLETE) Call for price 2 usually ships 1-5 days
34 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
35 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 4 ships same day
36 202-2687 Bolt 1/4-20 x 1/2 case hardened zinc flange $7.04 29 usually ships 1-5 days
37 999-0190 Nut 1/4-20 hex plain finish $0.99 50 ships same day
38 202-2122 Screw 10-32 x 5/8 inch phillips pan head $5.50 28 usually ships 8-13 days
39 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel $0.99 2 ships same day
40 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel $0.99 4 ships same day
41 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
42 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
43 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
44 999-0635 Nut 3/8-16 hex stainless steel $0.99 8 ships same day
45 999-0190 Nut 1/4-20 hex plain finish $0.99 8 ships same day
46 999-0069 Nut 5/16-18 hex $0.99 4 ships same day
47 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 35 ships same day
48 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
49 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 2 ships same day
50 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 21 ships same day
51 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 8 ships same day
52 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
53 999-0632 Washer 1/4 split lock stainless steel $0.99 23 ships same day
54 999-0659 Washer 3/8 medium split lock stainless steel $0.39 8 ships same day
55 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.99 10 ships same day
56 202-5308 Hopper with flap clamp and handle $503.03 1 usually ships 8-13 days
57 202-2887 Floor seal kit $108.24 1 (includes 21-25) usually ships 8-13 days
