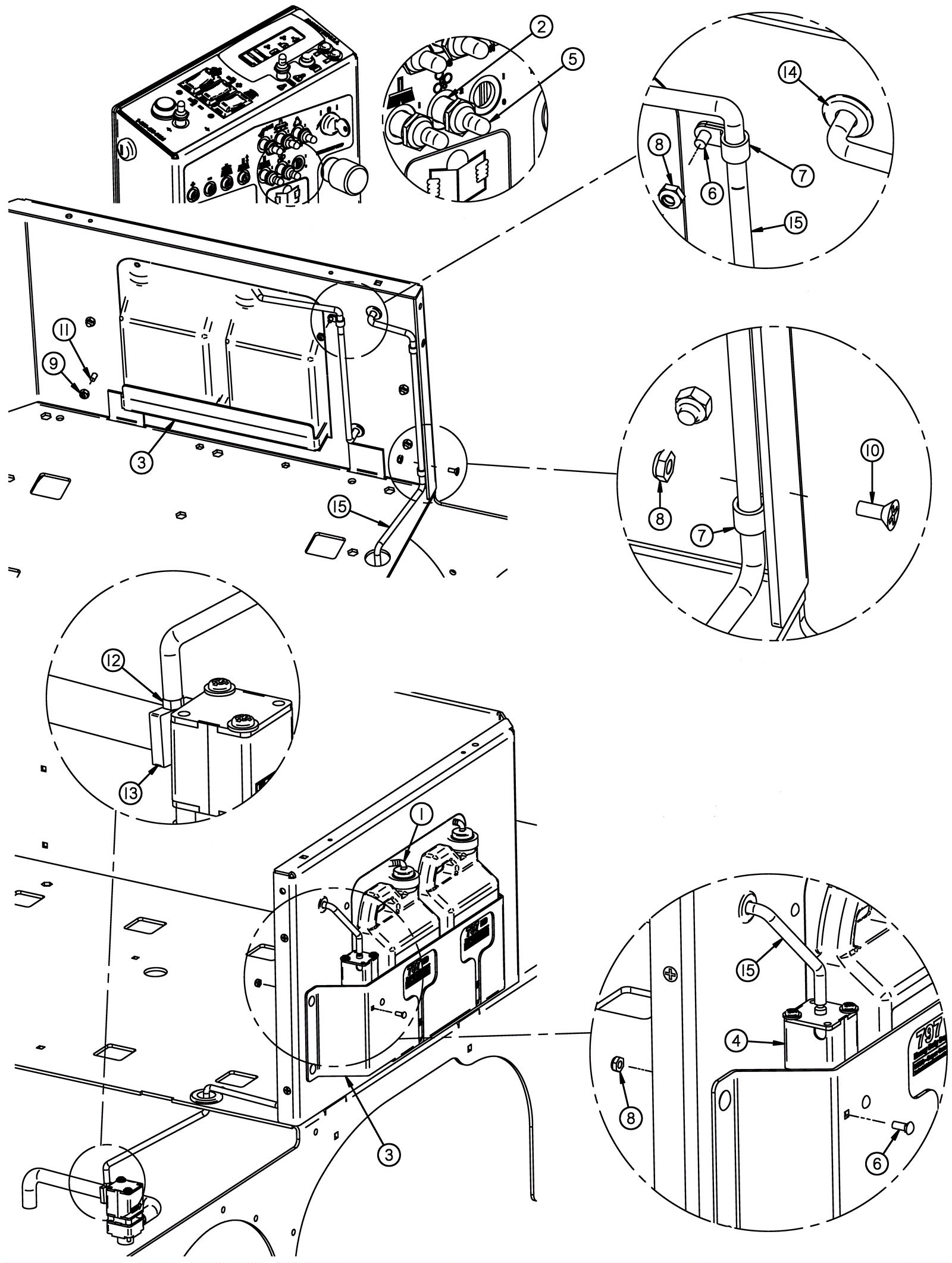

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3347
|
Soap jug cap |
2 |
|
|
2 |
202-3340
|
Toggle switch |
1 |
|
|
3 |
202-3297
|
Industrial soap tray |
1 |
|
|
4 |
202-3301
|
36V soap pump |
1 |
|
|
5 |
202-1866
|
Toggle switch protective boot (green) |
1 |
|
|
6 |
999-1486
|
Bolt 10-32 x 1/2 round head carriage stainless steel |
3 |
|
|
7 |
202-2431
|
P clamp |
3 |
|
|
8 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
5 |
|
|
9 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
10 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
2 |
|
|
11 |
999-1484
|
Bolt 1/4-20 x 5/8 round head carriage stainless steel |
4 |
|
|
12 |
202-3343
|
Barbed fitting |
1 |
|
|
13 |
202-3343
|
Barbed fitting |
1 |
|
|
14 |
202-3348
|
Rubber grommet |
2 |
|
|
15 |
202-3346
|
Hose 3/16 x 32 inch (clear) (OBSOLETE) |
2 |
|
|
