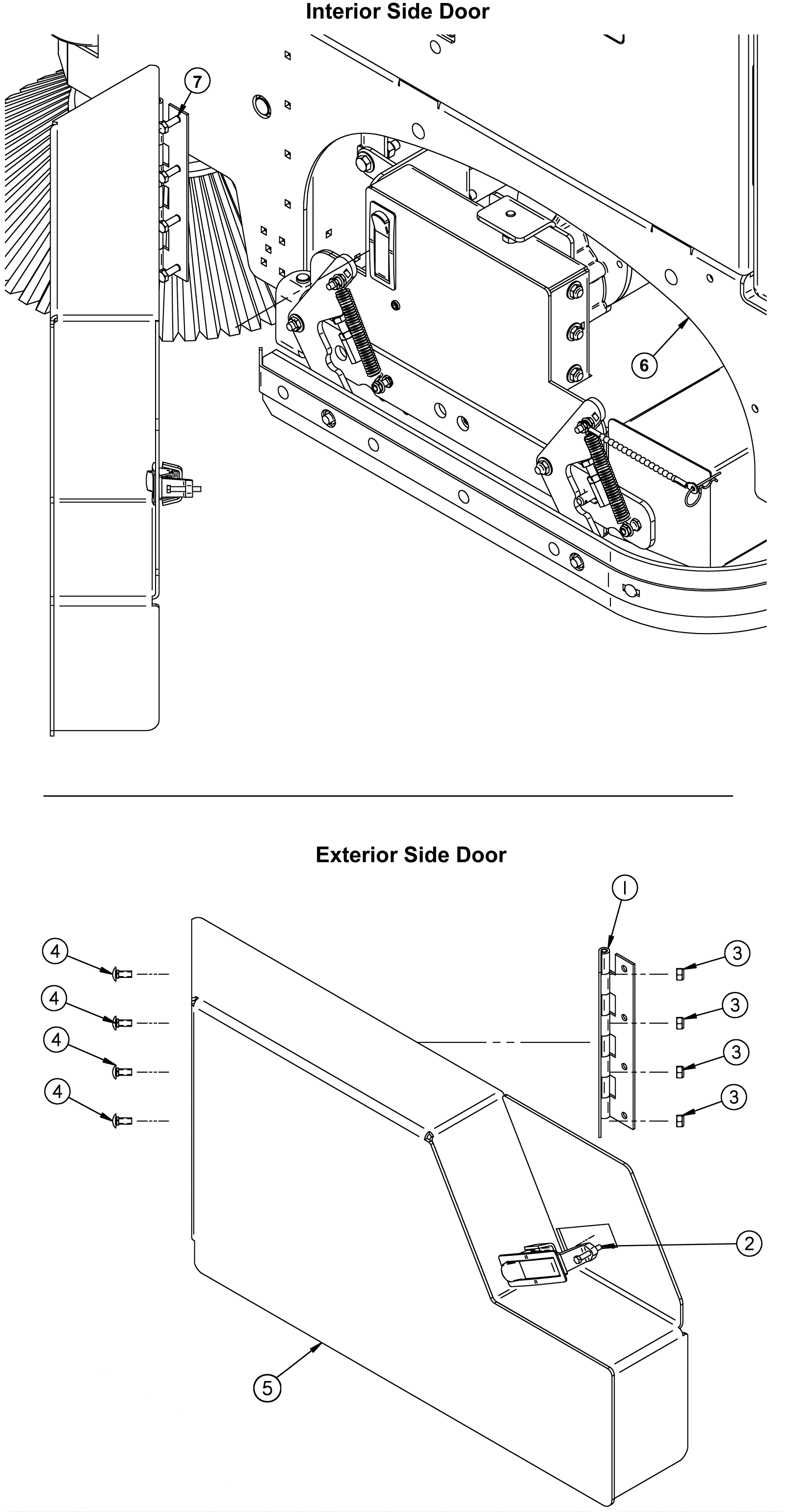

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-0403
|
Hinge |
1 |
|
|
2 |
202-0404
|
Latch |
1 |
|
|
3 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
4 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
4 |
|
|
5a |
202-3329
|
40 inch left side door |
1 |
|
|
5b |
202-3330
|
40 inch right side door |
1 |
|
|
5c |
202-3331
|
45 inch left side door |
1 |
|
|
5d |
202-3332
|
45 inch right side door |
1 |
|
|
6 |
202-3080
|
Chassis |
1 |
|
|
7a |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
7b |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
