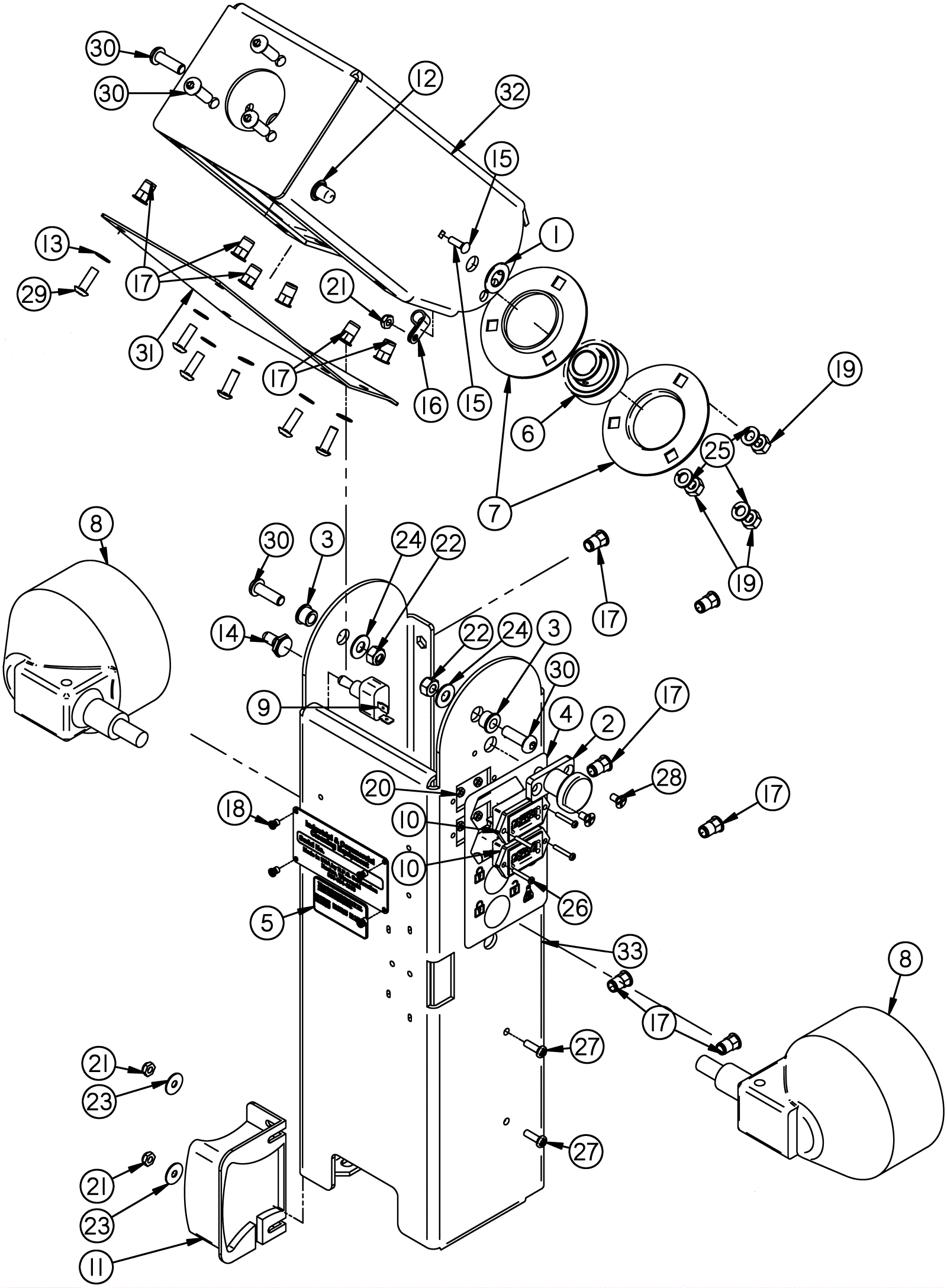

Steering Column Assembly

#PartDescription ReqNotesAvailability
1 202-1181 Washer 1/2 flat bronze 2
2 202-0719 Index plunger 1
3 202-3312 Flanged bearing 2
4 202-3313 Hour meter decal 1
5 202-3314 Patent plate 1
6 202-0142 Upper steering bearing 1
7 202-0143 Bearing mount 2
8 202-2010 48V headlight 2
9 202-0097 Toggle switch 1
10 202-0376 Hour meter 2
11 202-0385 Backup alarm 1
12 202-0381 Horn button 1
13 999-0563 Washer 1/4 x 1/16 flat nylon 6
14 202-1355 Toggle switch protective boot (black) 1
15 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel 1
16 202-2431 P clamp 1
17 999-0190 Nut 1/4-20 hex plain finish 12
18 202-3315 Blind rivet 4
19 999-0593 Nut 5/16-18 hex stainless steel 4
20 999-0295 Nut 4-40 nylon insert lock stainless steel 4
21 999-0086 Nut 10-32 nylon insert lock zinc plated 3
22 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
23 999-1485 Washer #10 flat large stainless steel 2
24 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
25 999-0553 Washer 5/16 medium split lock stainless steel 4
26 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated 4
27 999-1486 Bolt 10-32 x 1/2 round head carriage stainless steel 2
28 999-1509 Screw 10-32 x 3/8 flat head phillips stainless steel 2
29 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 6
30 999-1507 Screw 5/16-18 x 1 button head socket stainless steel 6
31a 202-0716 Pedestal cover (red) 1
31b 202-2013 Pedestal cover (granite) 1
32a 202-0715 Upper steering column (red) 1
32b 202-2012 Upper steering column (granite) 1
33a 202-0714 Lower steering column (red) 1
33b 202-2011 Lower steering column (granite) 1
