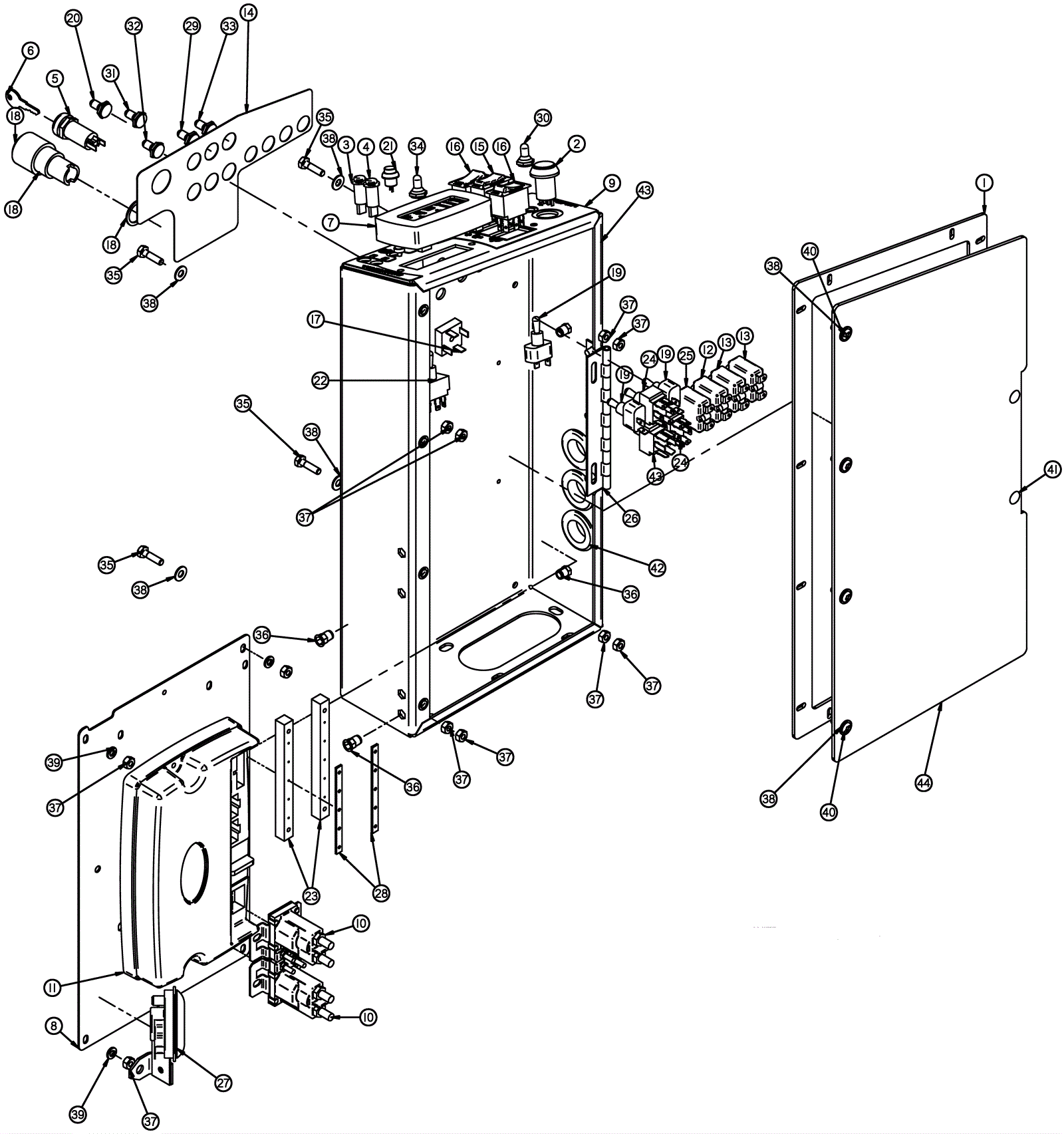

XR Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-0818 Access cover gasket $59.07 1 usually ships 1-5 days
2 202-1356 One touch button $83.60 1 (activates brush, squeegee and solution at once) (new button is slightly larger - drill hole out to 1 inch; old hole was 7/8 inch) usually ships 3-11 days
3 202-0831 Low solution indicator (amber) $16.56 1 ships same day
4 202-0832 Full recovery indicator (red) $28.16 1 usually ships 3-11 days
5a 202-2300 Key switch with key entry (red) and ring (black) $33.55 1 (OEM) ships same day
5b 991-5161 Key switch with key and ring $16.04 1 (NON-OEM) ships same day
6 991-1634 Key (pkg of 2) $10.67 1 ships same day
7 202-1317 LCD window display $390.50 1 usually ships 3-11 days
8 202-3305 Hardware panel (black) $72.71 1 usually ships 1-5 days
9 202-3306 Control panel top plate decal $25.85 1 usually ships 3-11 days
10 202-3307 36V relay with mounting plate $66.55 2 usually ships 3-11 days
11 202-1369 Main controller $1,508.54 1 usually ships 3-11 days
12 202-2500 10amp fuse $29.48 1 (side broom motors) usually ships 3-11 days
13 202-2499 15amp fuse $41.80 2 (positive and negative busbar) usually ships 3-11 days
14 202-3308 Control panel decal $22.22 1 usually ships 1-5 days
15 202-0368 Switch $32.89 1 (solution flow) usually ships 3-11 days
16 202-0369 2 position rocker switch $26.18 2 (squeegee and scrub deck raising and lowering) usually ships 3-11 days
17 202-0345 Diode bridge $42.57 1 usually ships 1-5 days
18 202-0826 Emergency shut-off switch $173.47 1 usually ships 3-11 days
19 202-0097 Toggle switch $15.73 5 (spray jet, vacuum wand and scrub deck pressure) usually ships 3-11 days
20 202-0098 Toggle switch boot (gray) $13.20 1 usually ships 3-11 days
21 202-0879 Push button switch $51.15 1 (menu display) usually ships 3-11 days
22 202-0521 Toggle switch $34.76 1 usually ships 3-11 days
23 202-0541 Busbar $8.14 2 usually ships 1-5 days
24 202-1992 Toggle switch $52.47 1 usually ships 3-11 days
25 202-0822 2amp fuse $42.02 1 (side broom and lift actuator) usually ships 3-11 days
26 202-0704 Hinge $11.66 1 usually ships 1-5 days
27 202-0380 Horn $126.06 1 usually ships 3-11 days
28 202-0830 Busbar (5 hole) $11.77 2 usually ships 3-11 days
29 202-1976 Toggle switch protective boot (white) $13.20 1 usually ships 3-11 days
30 202-1864 Toggle switch protective boot (red) $13.20 1 usually ships 3-11 days
31 202-1977 Toggle switch protective boot (yellow) $13.20 1 usually ships 3-11 days
32 202-1866 Toggle switch protective boot (green) $13.20 1 usually ships 3-11 days
33 202-1865 Toggle switch protective boot (blue) $13.20 1 usually ships 3-11 days
34 202-1355 Toggle switch protective boot (black) $13.20 1 ships same day
35 999-9072 Bolt 1/4-20 x 1 hex head cap $7.32 4 ships same day
36 999-0190 Nut 1/4-20 hex plain finish $0.99 8 ships same day
37 999-0609 Nut 1/4-20 hex stainless steel $0.99 12 ships same day
38 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
39 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
40 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel $0.99 4 ships same day
41 999-1442 Bolt 1/4-20 x 1/2 carriage stainless steel $0.99 5 usually ships 1-5 days
42 202-2592 Grommet $5.50 3 usually ships 3-11 days
43a 202-3309 Control box (red) $420.31 1 usually ships 1-5 days
43b 202-3310 Control box (granite) $444.84 1 usually ships 1-5 days
44a 202-3311 Access cover (red) $126.39 1 usually ships 1-5 days
44b 202-2574 Access cover (granite) $139.48 1 usually ships 1-5 days
