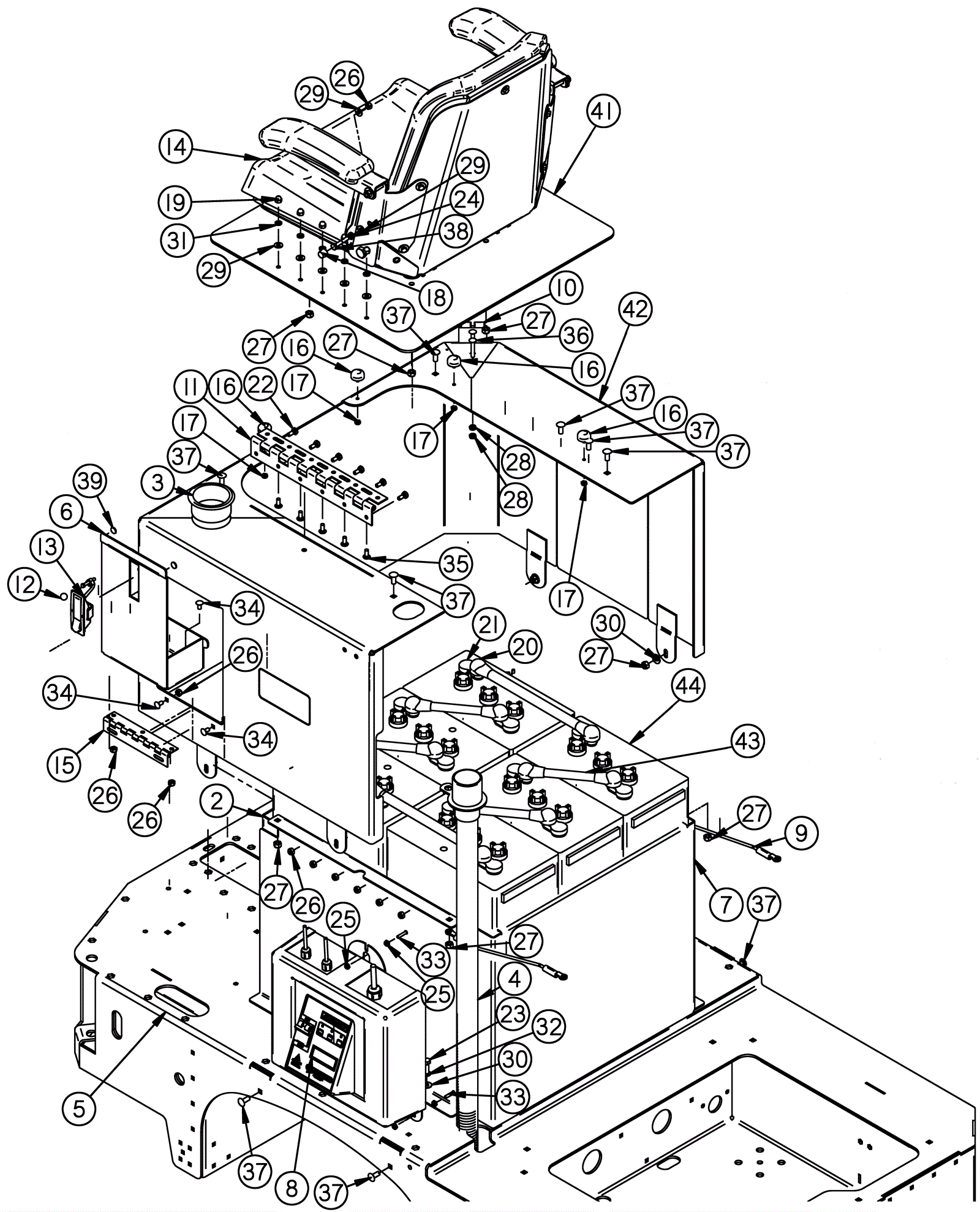

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
202-3281
|
Battery box (OBSOLETE) |
1 |
|
|
3 |
202-5192
|
Cup holder |
1 |
|
|
4 |
202-3259
|
Hose |
1 |
(tank to vacuum motor) |
|
5 |
202-3080
|
Chassis |
1 |
|
|
6a |
202-3283
|
Tray (red) |
1 |
|
|
6b |
202-3284
|
Tray (granite) |
1 |
|
|
7 |
202-3285
|
Seat support |
1 |
|
|
8 |
202-2148
|
36V 30amp wet SCR battery charger with large SB175 gray plug |
1 |
|
|
9 |
202-3286
|
Tank cable |
2 |
|
|
10 |
202-3287
|
Battery connector housing |
1 |
|
|
11 |
202-2363
|
Hinge |
1 |
|
|
12 |
202-3170
|
Grommet |
1 |
|
|
13 |
202-0404
|
Latch |
1 |
|
|
14 |
202-0081
|
Seat with switch, cover, locking track and mounting |
1 |
|
|
15 |
202-0704
|
Hinge |
1 |
|
|
16 |
202-3543
|
10-24 x 1 threaded stud |
4 |
|
|
17 |
999-1504
|
Nut 10-24 jam insert lock stainless steel |
4 |
|
|
18 |
202-3288
|
Bolt |
1 |
|
|
19 |
999-0429
|
Nut 1/4-20 acorn nickel plated |
5 |
|
|
20 |
202-2850
|
Battery boot |
12 |
|
|
21 |
202-2849
|
Terminal cover |
12 |
|
|
22 |
999-0633
|
Bolt 1/4-20 x 5/8 hex head stainless steel |
6 |
|
|
23 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
|
24 |
999-0609
|
Nut 1/4-20 hex stainless steel |
1 |
|
|
25 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
6 |
|
|
26 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
11 |
|
|
27 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
16 |
|
|
28 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
2 |
|
|
29 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
7 |
|
|
30 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
8 |
|
|
31 |
999-0632
|
Washer 1/4 split lock stainless steel |
5 |
|
|
32 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
4 |
|
|
33 |
999-1471
|
Screw #10-21 x 1 flat head phillips stainless steel |
3 |
|
|
34 |
999-1442
|
Bolt 1/4-20 x 1/2 carriage stainless steel |
4 |
|
|
35 |
999-1484
|
Bolt 1/4-20 x 5/8 round head carriage stainless steel |
5 |
|
|
36 |
999-0604
|
Screw 1/4-20 x 1 1/2 carriage head stainless steel |
2 |
|
|
37 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
10 |
|
|
38 |
999-0506
|
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
1 |
|
|
39 |
202-3289
|
Felt tab |
2 |
|
|
41a |
202-7630
|
Lid Battery Box, Red Gloss |
1 |
|
|
41b |
202-3292
|
Battery box lid (granite) |
1 |
|
|
42a |
202-3293
|
Battery compartment (red) |
1 |
|
|
42b |
202-3294
|
Battery compartment (granite) |
1 |
|
|
43 |
998-0010
|
Battery jumper cable - ring type (red) |
1 |
|
|
N/S |
202-0721
|
Microswitch |
1 |
|
|
