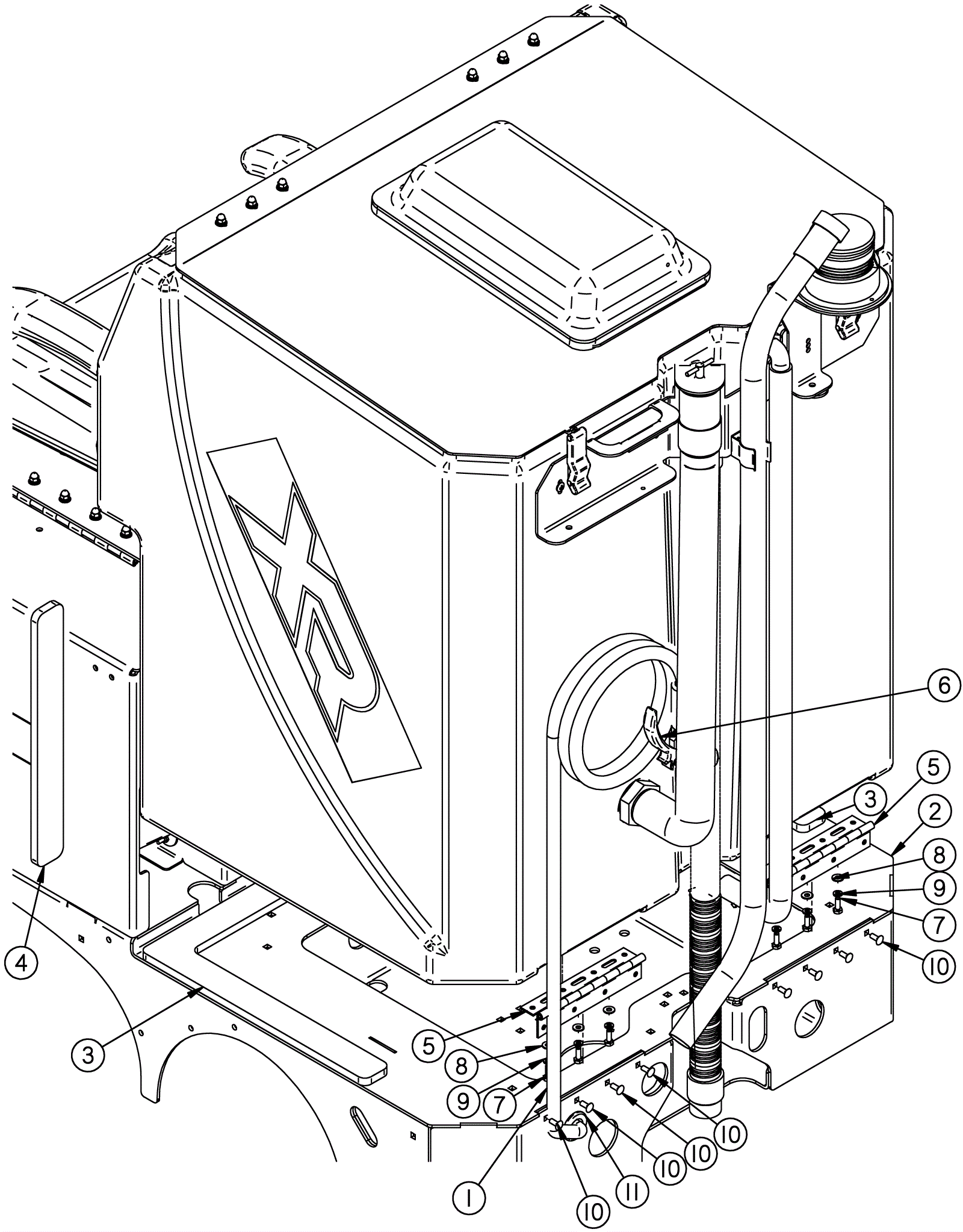

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-0104
|
18 foot rubber hose (blue) |
1 |
|
|
2 |
202-3080
|
Chassis |
1 |
|
|
3 |
202-3233
|
Tank gasket (large) |
2 |
|
|
4 |
202-3268
|
Tank gasket (small) |
2 |
|
|
5 |
202-0403
|
Hinge |
2 |
|
|
6 |
202-0103
|
Spray nozzle |
1 |
|
|
7 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
6 |
|
|
8 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
5 |
|
|
9 |
999-0632
|
Washer 1/4 split lock stainless steel |
6 |
|
|
10 |
999-1484
|
Bolt 1/4-20 x 5/8 round head carriage stainless steel |
8 |
|
|
11 |
202-2592
|
Grommet |
1 |
|
|
