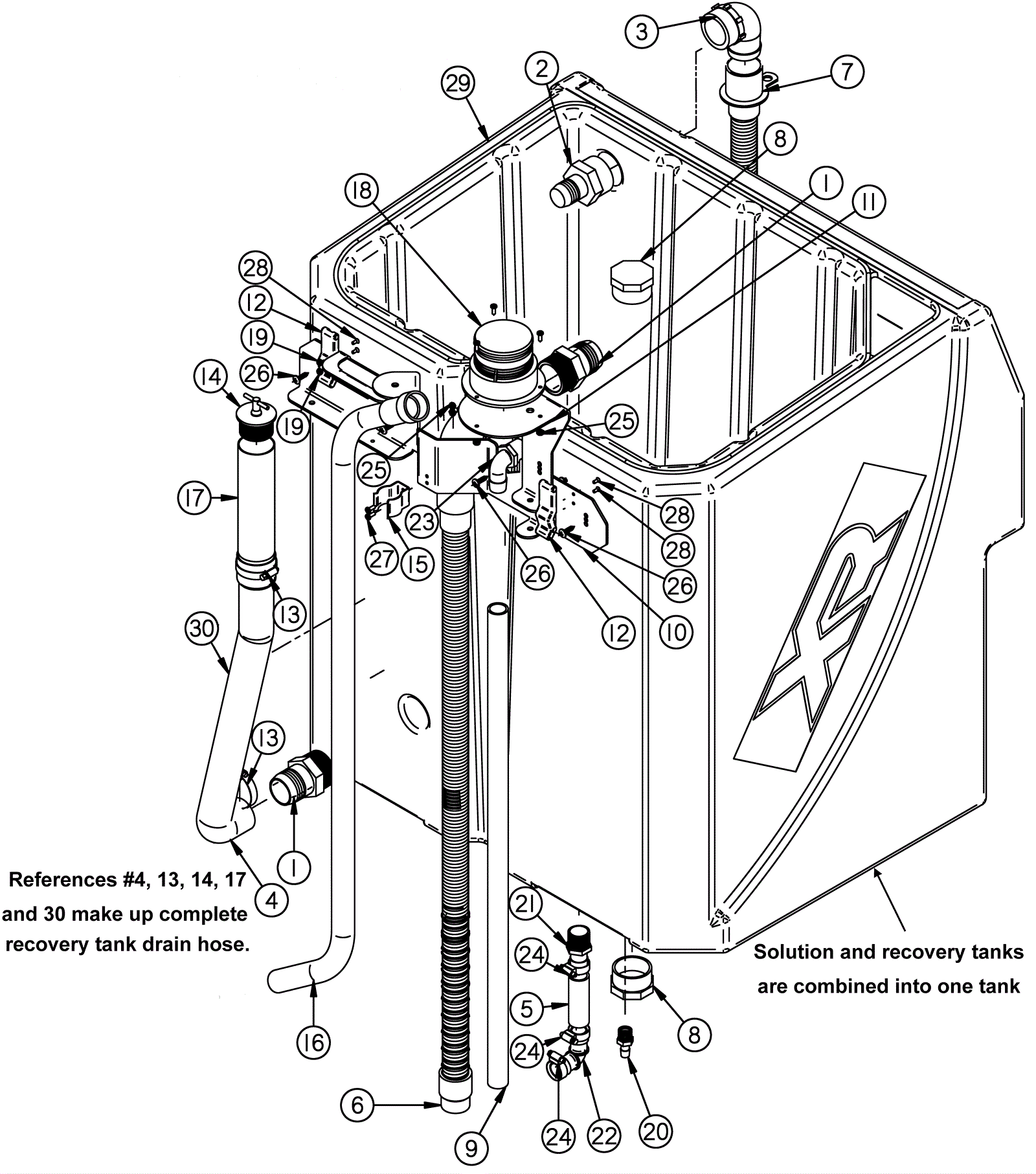

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-2025
|
Hosebarb |
2 |
|
|
2 |
202-2118
|
Hosebarb |
1 |
|
|
3 |
202-0703
|
Elbow |
2 |
|
|
4a |
202-0708
|
Drain hose |
1 |
(recovery tank drain hose) |
|
4b |
991-2415
|
Drain hose |
1 |
(NON-OEM) |
|
5 |
202-3258
|
Reinforced tube |
1 |
|
|
6 |
202-3257
|
Squeegee vacuum hose |
1 |
(squeegee to tank) |
|
7 |
202-3259
|
Hose |
1 |
(tank to vacuum motor) |
|
8 |
202-3033
|
Tank plug |
2 |
|
|
9 |
202-3260
|
Sight tube |
1 |
(solution tank drain hose and solution level) |
|
10 |
202-3261
|
Utility handle |
1 |
|
|
11 |
202-3262
|
Strobe light bracket |
1 |
|
|
12 |
202-1487
|
Latch |
2 |
|
|
13 |
997-2011
|
Hose clamp |
2 |
|
|
14 |
202-0240
|
Drain hose plug |
1 |
|
|
15 |
202-0090
|
Wand clip |
1 |
|
|
16 |
202-0094
|
54 inch wand tube |
1 |
(optional wand accessory) |
|
17 |
202-0694
|
Drain hose end tube |
1 |
(recovery tank drain hose) |
|
18 |
202-0383
|
Strobe light |
1 |
|
|
19 |
999-1036
|
Nut 8-32 hex NTM nylon insert jam lock stainless steel |
4 |
|
|
20 |
202-3263
|
Fitting 1/2 x 1/2 inch |
1 |
|
|
21 |
202-3264
|
Fitting 1 x 1 inch |
1 |
|
|
22 |
202-3265
|
Coupler |
1 |
|
|
23 |
202-3266
|
Elbow barb |
1 |
|
|
24 |
202-2066
|
Hose clamp |
3 |
|
|
25 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
26 |
999-1290
|
Screw #14 x 1 truss head phillips stainless steel |
5 |
|
|
27 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
5 |
|
|
28 |
999-1505
|
Screw 8-32 x 3/8 flat head phillips stainless steel |
4 |
|
|
29a |
202-3063
|
Tank (red) |
1 |
|
|
29b |
202-3064
|
Complete conversion kit to new tank-in-tank style (granite) |
1 |
|
|
30 |
202-3039
|
Drain hose |
1 |
(recovery tank drain hose) |
|
