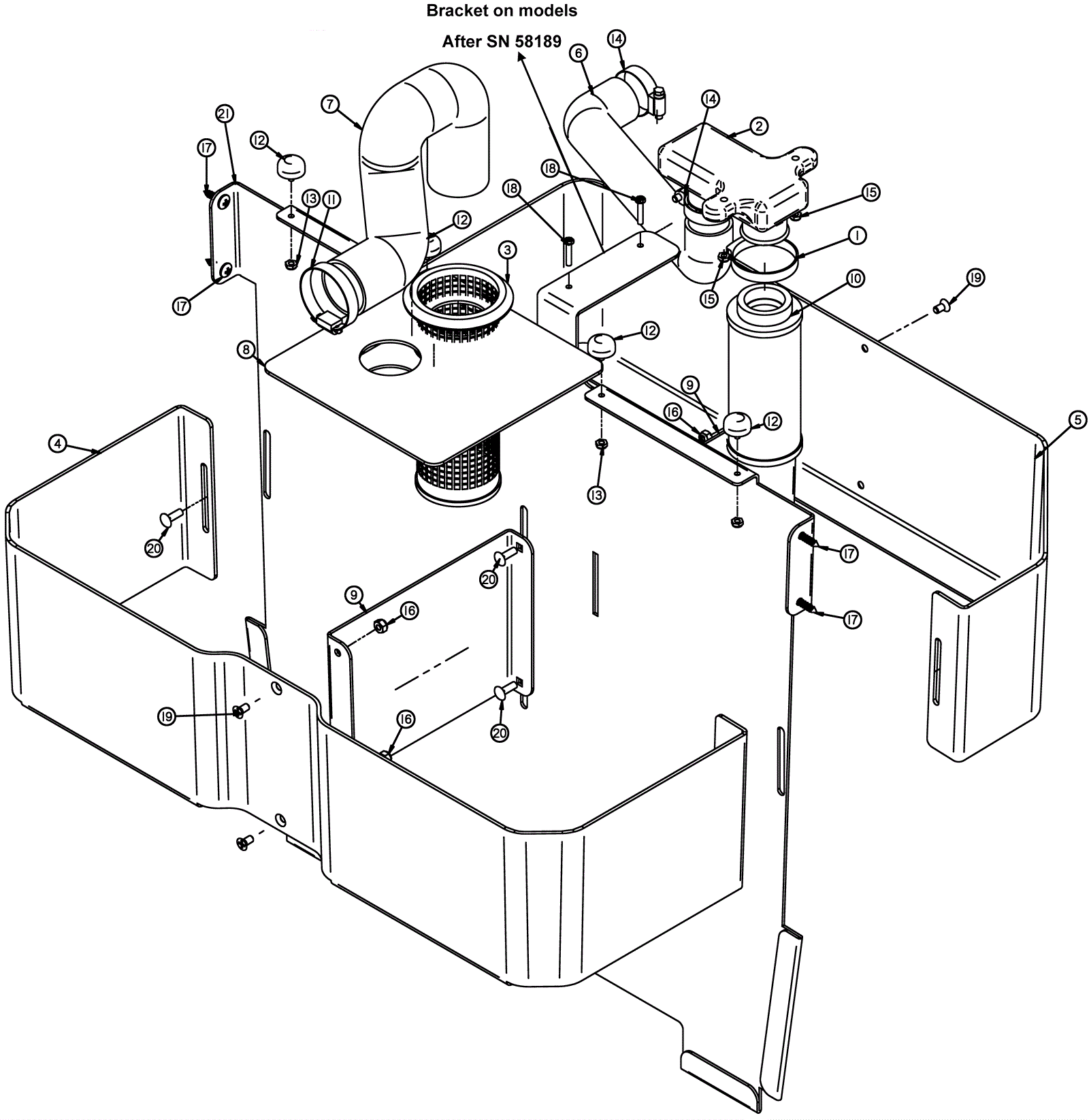

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-1640
|
Nylon clamp |
1 |
|
|
2a |
202-0897
|
Vacuum box |
1 |
|
|
2b |
202-1644
|
Vac box filter |
1 |
|
|
3 |
202-2027
|
Strainer |
1 |
|
|
4 |
202-3247
|
Rear tank band |
1 |
|
|
5 |
202-3248
|
Front tank band |
1 |
|
|
6 |
202-4101
|
Wire reinforced hose 1 1/2 x 15 inch (black) |
1 |
|
|
7 |
202-3250
|
Hose 2 x 15 inch |
1 |
|
|
8 |
202-3251
|
Splash panel |
1 |
|
|
9 |
202-3254
|
Tank brace |
2 |
|
|
10 |
202-3255
|
Vacuum screen |
1 |
|
|
11 |
997-2011
|
Hose clamp |
1 |
|
|
12 |
202-3543
|
10-24 x 1 threaded stud |
4 |
|
|
13 |
999-1504
|
Nut 10-24 jam insert lock stainless steel |
4 |
|
|
14 |
202-3256
|
Hose clamp |
2 |
|
|
15 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
16 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
|
17 |
999-1290
|
Screw #14 x 1 truss head phillips stainless steel |
4 |
|
|
18 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
2 |
|
|
19 |
999-1492
|
Screw 1/4-20 x 1/2 flat head full thread stainless steel |
4 |
|
|
20 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
4 |
|
|
21a |
202-3252
|
Tank baffle (black) |
1 |
|
|
21b |
202-3253
|
Tank baffle (stainless steel) |
1 |
|
|
