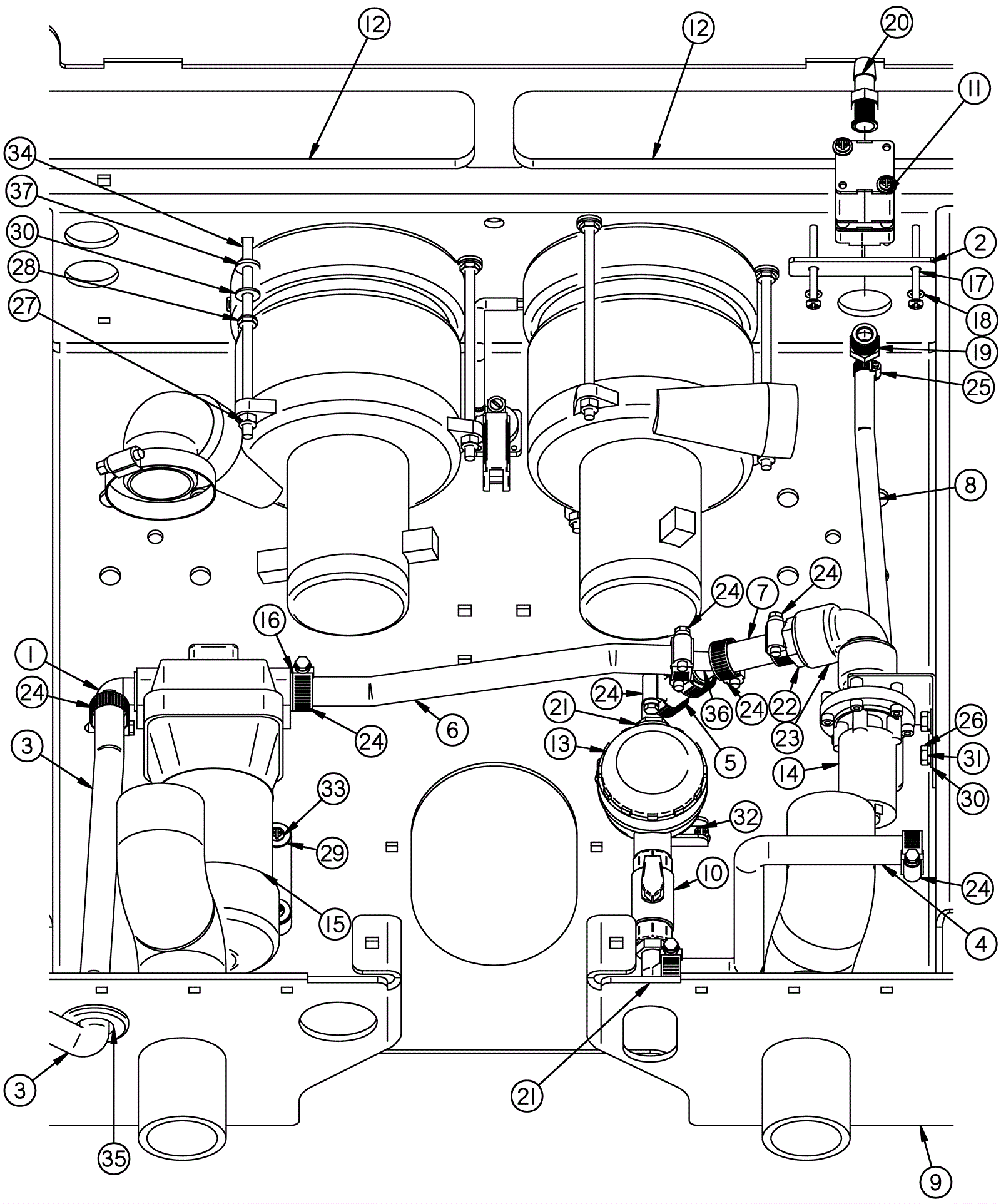

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-1008
|
Barbed elbow |
1 |
|
|
2 |
202-3058
|
Valve bracket |
1 |
|
|
3 |
202-0104
|
18 foot rubber hose (blue) |
1 |
|
|
4 |
202-3228
|
Hose 1/2 x 12 inch (clear) |
1 |
|
|
5 |
202-3229
|
Operator's manual holder |
1 |
|
|
6 |
202-3230
|
Hose 1/2 x 10 inch (clear) |
1 |
|
|
7 |
202-3231
|
Hose 1/2 x 8 inch (clear) |
1 |
|
|
8 |
202-3232
|
Hose 3/8 x 16 inch (clear) |
1 |
|
|
9 |
202-3080
|
Chassis |
1 |
|
|
10 |
202-3057
|
Ball valve |
1 |
|
|
11 |
202-3038
|
36V solenoid valve |
1 |
|
|
12 |
202-3233
|
Tank gasket (large) |
2 |
|
|
13 |
202-3234
|
Inline filter |
1 |
|
|
14 |
202-2895
|
36V wand spray pump |
1 |
|
|
15 |
202-2368
|
36V water jet pump |
1 |
|
|
16 |
202-0107
|
1/2 inch hosebarb |
1 |
|
|
17 |
999-1017
|
Screw 10-32 x 2 1/4 pan head phillips stainless steel |
2 |
|
|
18 |
202-2589
|
Nut 10-32 crimp hex |
6 |
|
|
19 |
202-3235
|
90 degree elbow |
1 |
|
|
20 |
202-3236
|
Threaded barb |
1 |
|
|
21 |
202-3059
|
Elbow barb |
2 |
|
|
22 |
202-3241
|
Threaded barb |
1 |
|
|
23 |
202-3237
|
Threaded elbow |
1 |
|
|
24 |
202-0680
|
Hose clamp |
9 |
|
|
25 |
202-3238
|
Hose clamp |
1 |
|
|
26 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
27 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
6 |
|
|
28 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
6 |
|
|
29 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
30 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
31 |
999-0632
|
Washer 1/4 split lock stainless steel |
2 |
|
|
32 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
2 |
|
|
33 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
2 |
|
|
34 |
999-1219
|
Bolt 1/4-20 x 6 carriage head stainless steel |
6 |
|
|
35 |
202-2592
|
Grommet |
1 |
|
|
36 |
202-3239
|
Tee |
1 |
|
|
37 |
202-1986
|
Washer 3/8 x 1-1/8 x 3/32 neoprene thread |
6 |
|
|
