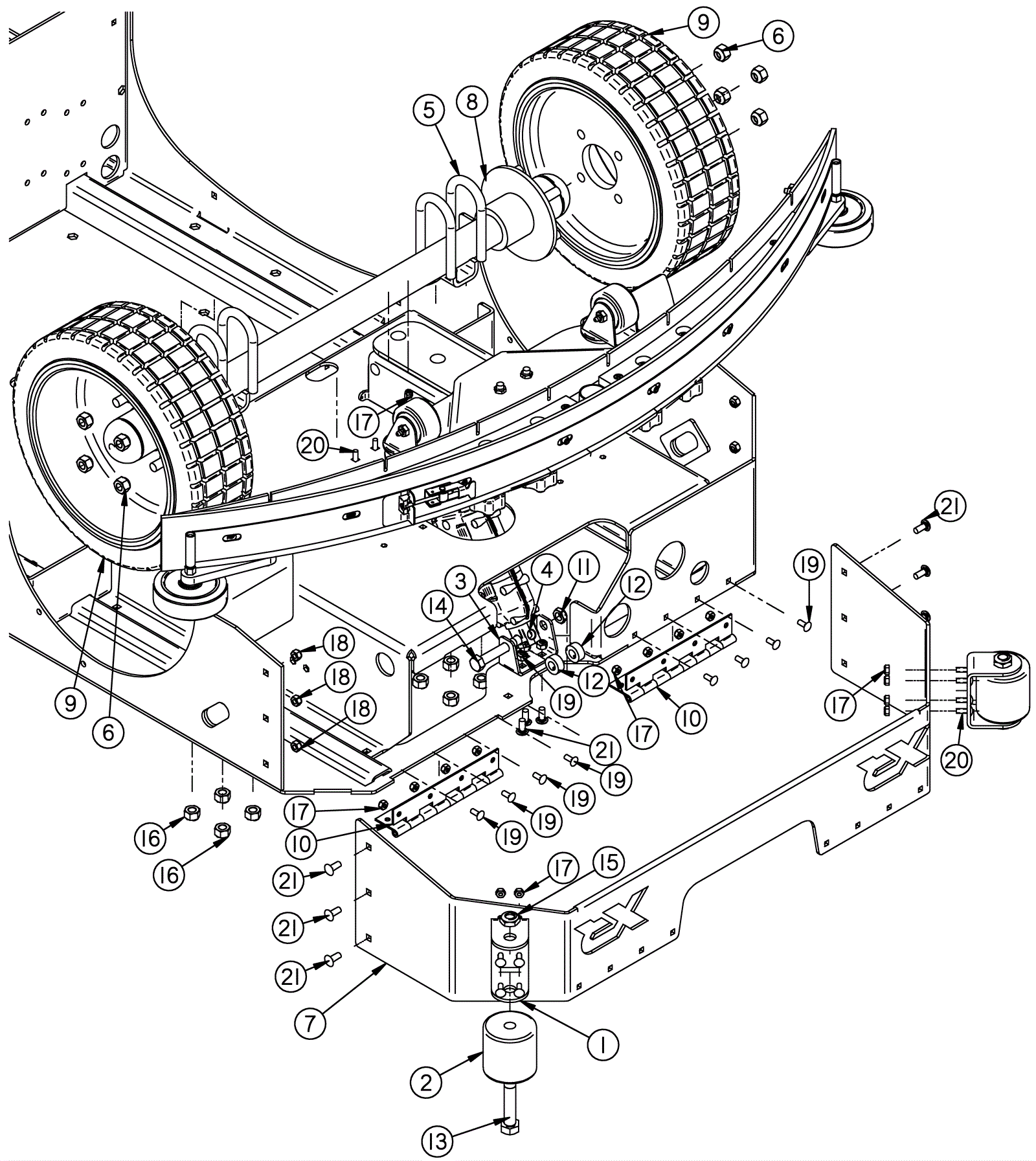

XR Rear Axle Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-0976 20 inch roller bracket $36.52 2 usually ships 3-11 days
2 202-0756 Guide roller $28.16 2 usually ships 3-11 days
3 202-1903 Lifting bracket $83.38 1 usually ships 3-11 days
4 202-1932 36V actuator $577.61 1 usually ships 3-11 days
5 202-1154 U bolt 1/2-13 x 1 1/4 $5.50 4 usually ships 1-5 days
6 202-1153 Nut 1/2-20 lug $5.50 8 usually ships 1-5 days
7 202-3219 Rear bumper $331.21 1 usually ships 1-5 days
8 202-3220 Rear axle $515.46 1 usually ships 1-5 days
9 202-3221 14 inch wheel (black) $1,111.77 2 usually ships 3-11 days
10 202-0403 Hinge $24.42 2 usually ships 3-11 days
11 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 1 ships same day
12 202-3222 Shaft collar with set screw $7.48 2 usually ships 3-11 days
13 999-1209 Bolt 5/8-11 x 4 hex head zinc plated $6.09 2 ships same day
14 999-0049 Bolt 1/2-13 x 3 1/2 hex head grade 5 $2.74 1 ships same day
15 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated $2.27 2 ships same day
16 999-0842 Nut 1/2-20 nylon insert lock zinc plated $1.40 8 ships same day
17 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 17 ships same day
18 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 9 ships same day
19 999-1484 Bolt 1/4-20 x 5/8 round head carriage stainless steel $0.99 8 ships same day
20 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 12 ships same day
21 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 9 ships same day
