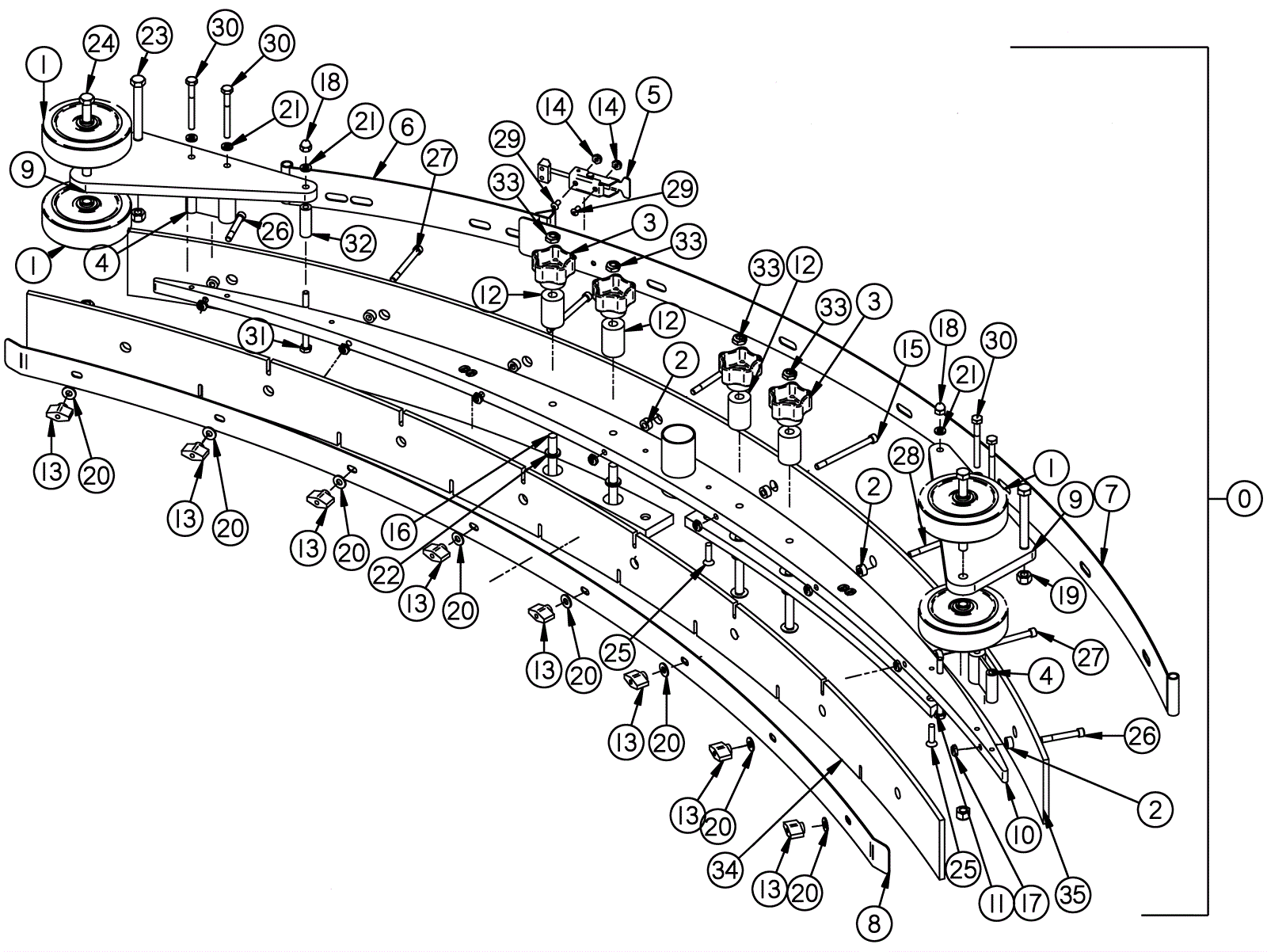

Squeegee Assembly - 45 inch

#PartDescription ReqNotesAvailability
0 202-3218 45 inch squeegee assembly 1 (includes 1-33)
1 202-2098 4 inch wheel (gray) 4
2 202-0702 Spacer 8
3 202-1999 Star knob 4
4 302-0261 Squeegee roller spacer (set of 3) 2
5 202-2898 Latch 1
6 202-3205 40 and 45 inch right side rear squeegee band 1
7 202-3213 45 inch left side rear squeegee band 1
8 202-3214 45 inch front squeegee band 1
9 202-3188 Caster bracket 2
10 202-3215 45 inch squeegee weldment 1
11 202-3216 45 inch bottom weldment plate 2
12 202-3189 Spacer 4
13 202-0711 Clamping knob (pkg of 2) 8
14 999-1269 Nut 10-32 nylon insert jam stainless steel 2
15 202-3191 Screw 1/4-20 x 3 1/4 socket head stainless steel 2
16 999-1499 Screw 3/8-16 x 3 button head socket stainless steel 4
17 999-0304 Nut 1/4-20 nylon lock jam stainless steel 8
18 999-0429 Nut 1/4-20 acorn nickel plated 2
19 999-1482 Nut 3/8-16 nylon lock stainless steel 4
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
21 999-0632 Washer 1/4 split lock stainless steel 6
22 999-0659 Washer 3/8 medium split lock stainless steel 4
23 999-1500 Bolt 3/8-16 x 3 hex head tapping stainless steel 2
24 999-0795 Bolt 3/8-16 x 4 hex head stainless steel 2
25 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel 4
26 999-1447 Screw 1/4-20 x 1 3/4 flat socket head stainless steel 2
27 999-1502 Screw 1/4-20 x 2 1/2 hex head socket stainless steel 2
28 999-1503 Screw 1/4-20 x 3 hex head socket stainless steel 2
29 999-1270 Screw 10-32 x 3/8 button head socket stainless steel 2
30 999-1187 Bolt 1/4-20 x 2 1/2 hex head stainless steel 4
31 999-1096 Bolt 1/4-20 x 3 hex head stainless steel 2
32 202-7599 Spacer, Squeegee Roller 2
33 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 4
34a 202-2947 Squeegee blade 45 inch linatex front 1
34b 202-2948 Squeegee blade 45 inch gum rubber front 1
35a 202-2951 Squeegee blade 45 inch linatex rear 1
35b 202-2952 Squeegee blade 45 inch gum rubber rear 1
35c 202-2954 Rear urethane squeegee blade 60 inch 1
