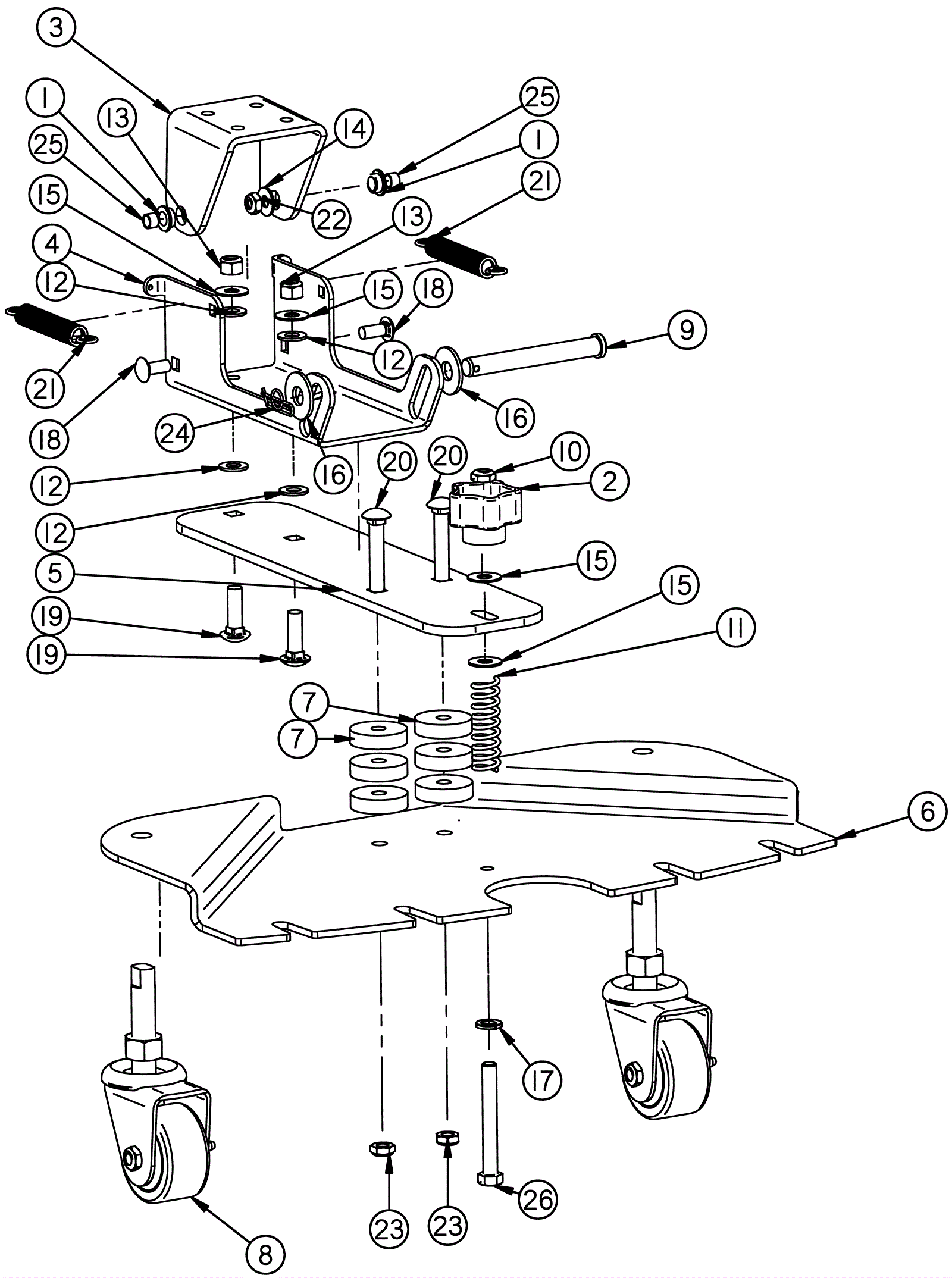

XR Squeegee Trail Arm Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-1239 Flanged bearing $5.50 2 usually ships 3-11 days
2 202-0809 Brass star knob $41.14 1 usually ships 3-11 days
3 202-3177 Pivot bracket $43.89 1 usually ships 1-5 days
4 202-3178 Swing plate $59.73 1 usually ships 1-5 days
5 202-3179 Trail arm $61.05 1 usually ships 3-11 days
6 202-3180 Triangle plate $154.88 1 usually ships 3-11 days
7 202-0151 Grommet $4.40 6 usually ships 3-11 days
8 202-2445 Caster wheel $147.51 2 usually ships 3-11 days
9 202-3083 Clevis pin $6.71 1 usually ships 3-11 days
10 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 1 ships same day
11 202-2945 Spring $5.50 1 usually ships 3-11 days
12 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 4 ships same day
13 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 2 ships same day
14 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
15 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
16 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
17 999-0659 Washer 3/8 medium split lock stainless steel $0.39 1 ships same day
18 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
19 999-1150 Bolt 3/8-16 x 1 1/4 carriage head stainless steel $4.54 2 ships same day
20 999-1149 Bolt 3/8-16 x 2 carriage head stainless steel $6.57 2 ships same day
21 202-2208 Compression spring $6.38 2 usually ships 3-11 days
22 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
23 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel $1.52 2 ships same day
24 202-2059 Cotter ring $5.50 1 usually ships 3-11 days
25 202-3128 Sleeved bearing $5.50 2 usually ships 3-11 days
26 999-1441 Bolt 3/8-16 x 3 1/2 hex head stainless steel $7.99 1 ships same day
