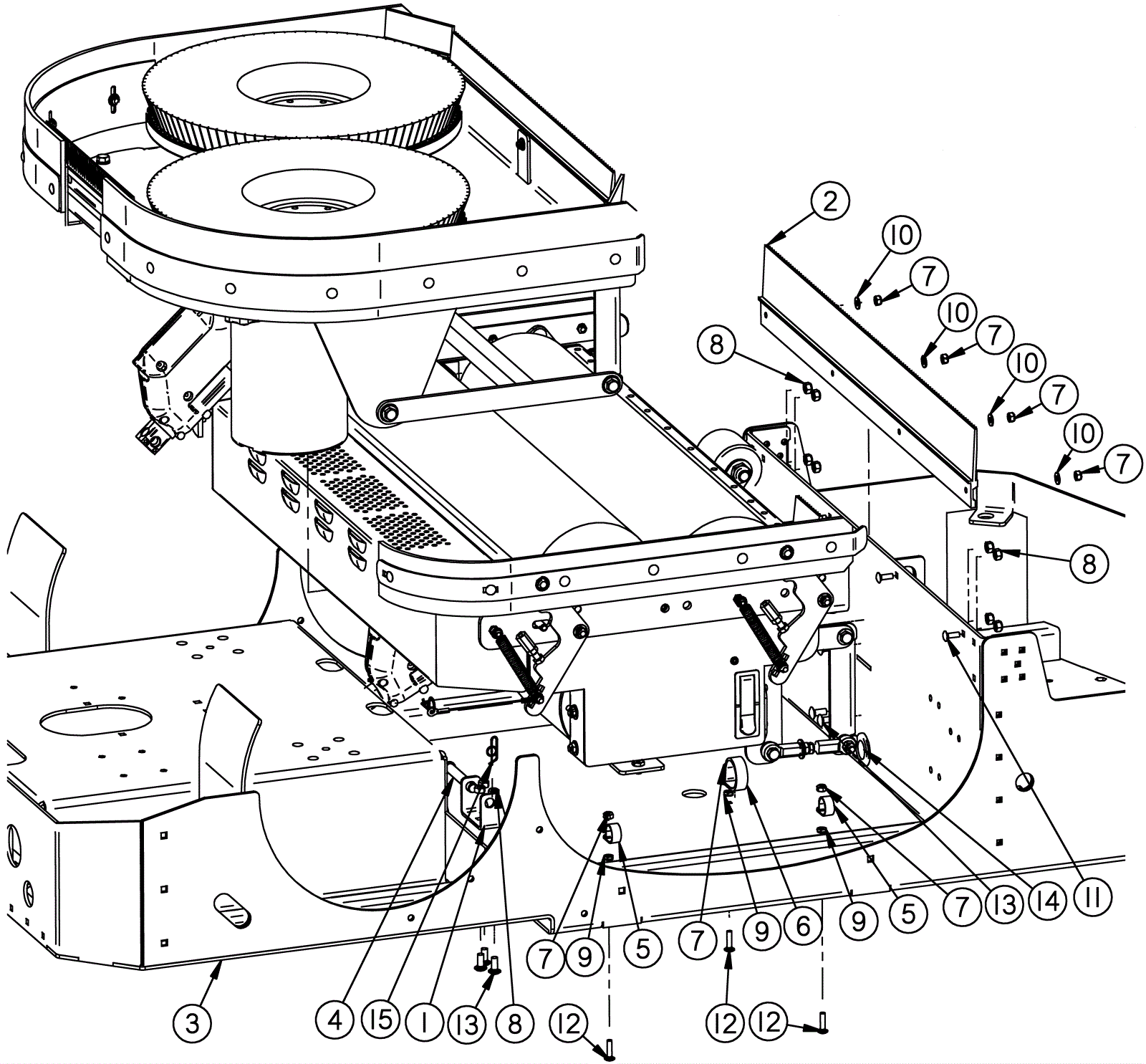

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-1903
|
Lifting bracket |
$75.80
|
1 |
|
usually ships 3-10 days |
2 |
202-3172
|
Front curtain blade |
$64.00
|
1 |
|
usually ships 3-10 days |
3 |
202-3080
|
Chassis |
$2,594.00
|
1 |
|
usually ships 1-5 days |
4 |
202-3173
|
Clevis pin |
$6.10
|
1 |
|
usually ships 1-5 days |
5 |
202-3174
|
P clamp |
$5.20
|
2 |
(small) |
usually ships 1-5 days |
6 |
202-3175
|
P clamp |
$8.10
|
1 |
(large) |
usually ships 1-5 days |
7 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
7 |
|
ships same day |
8 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
16 |
|
ships same day |
9 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
$0.90
|
3 |
|
ships same day |
10 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
11 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
$1.36
|
3 |
|
ships same day |
12 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
$0.94
|
3 |
|
ships same day |
13 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
$1.96
|
6 |
|
ships same day |
14 |
202-2592
|
Grommet |
$5.00
|
3 |
|
usually ships 3-10 days |
15 |
202-2059
|
Cotter ring |
$5.50
|
1 |
|
usually ships 3-10 days |
