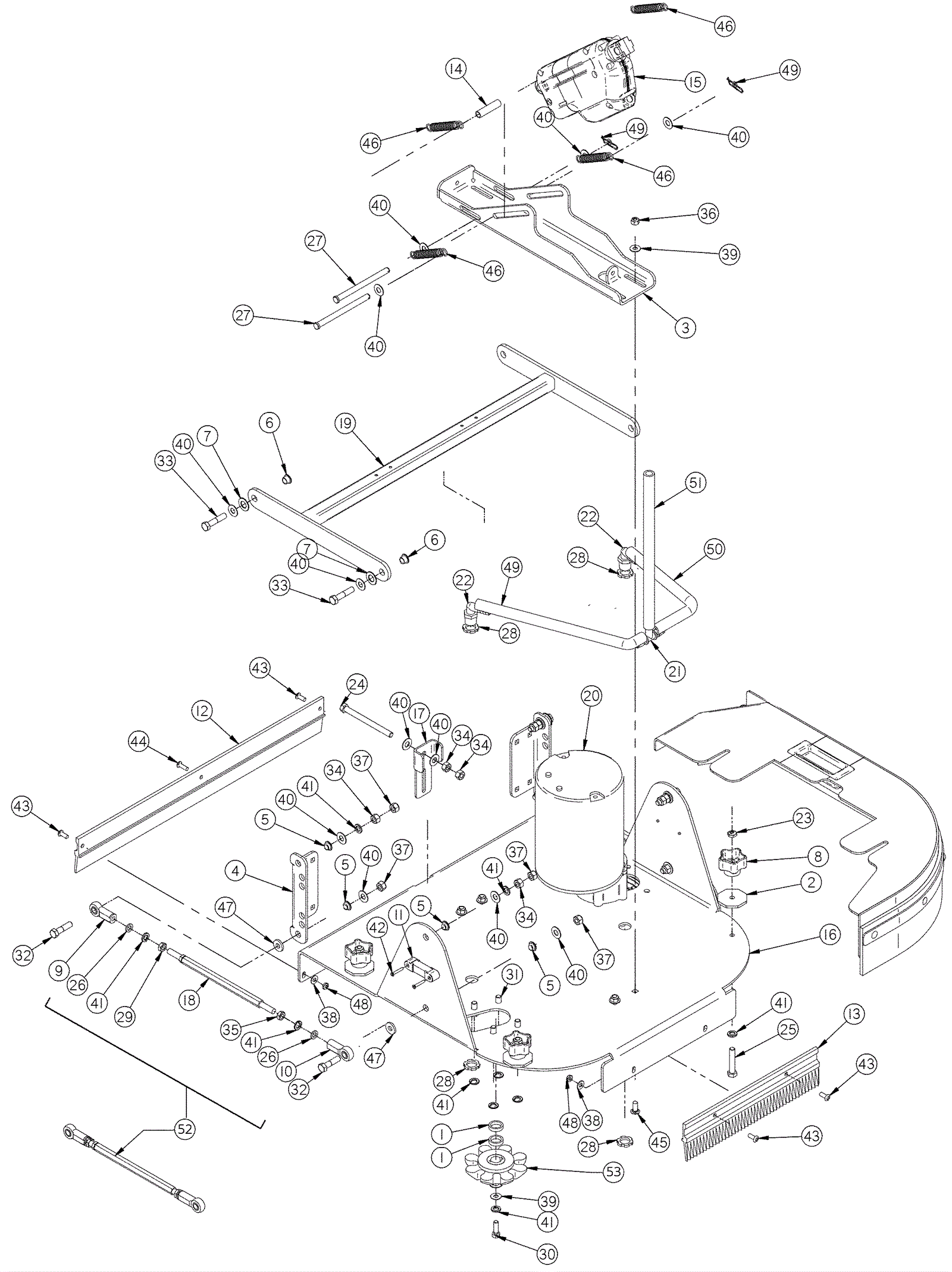

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-6063
|
Spacer. Driver |
4 |
|
|
2 |
202-1946
|
Adjustment knob plate |
4 |
|
|
3 |
202-1942
|
Bracket |
1 |
|
|
4 |
202-1879
|
Bracket |
2 |
|
|
5 |
202-1239
|
Flanged bearing |
8 |
|
|
6 |
202-0754
|
Flanged bearing |
4 |
|
|
7 |
202-1181
|
Washer 1/2 flat bronze |
4 |
|
|
8a |
202-0809
|
Brass star knob |
4 |
|
|
8b |
991-2411
|
Brass star knob |
4 |
(NON-OEM) |
|
9 |
202-3085
|
Left thread rod end |
2 |
|
|
10 |
202-3086
|
Right thread rod end |
2 |
|
|
11 |
202-5098
|
2 inch bolt on level |
2 |
|
|
12a |
202-3087
|
Front curtain blade |
1 |
(34 and 40 inch) |
|
12b |
202-3103
|
Front curtain blade |
1 |
(45 inch) |
|
13a |
202-3088
|
Rear curtain blade |
1 |
(34 and 40 inch) |
|
13b |
202-3104
|
45 inch rear deck curtain |
1 |
(45 inch) |
|
14 |
202-3089
|
Sleeved bearing |
1 |
|
|
15 |
202-5588
|
36V actuator |
1 |
|
|
16a |
202-3090
|
34 and 40 inch scrub deck |
1 |
(34 and 40 inch) |
|
16b |
202-3105
|
45 inch scrub deck |
1 |
(45 inch) |
|
17 |
202-3091
|
Adjustment bracket |
1 |
|
|
18 |
202-3092
|
Adjustable lateral arm |
2 |
|
|
19a |
202-3093
|
Lateral brush arm w/ bushings (disk) |
1 |
(34 inch) |
|
19b |
202-3106
|
Lateral brush arm |
1 |
(45 inch) |
|
20 |
202-3094
|
36V brush motor |
2 |
|
|
21 |
202-0332
|
1/2 inch barbed tee |
1 |
|
|
22 |
202-0333
|
Elbow barb |
2 |
|
|
23 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
4 |
|
|
24 |
202-3095
|
Bolt 3/8 x 4 1/2 hex head full thread stainless steel |
1 |
|
|
25 |
999-1567
|
Screw 3/8-24 x 2 hex head stainless steel |
4 |
|
|
26 |
202-3096
|
Shim |
4 |
|
|
27 |
202-3097
|
Clevis pin |
2 |
|
|
28 |
999-0330
|
Nut 1/2-13 acorn brass |
4 |
|
|
29 |
202-3098
|
Nut hex jam left hand thread |
2 |
|
|
30 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
31 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
8 |
|
|
32 |
202-1970
|
Bolt 3/8-16 x 1-1/2 hex head stainless steel |
4 |
|
|
33 |
999-1006
|
Screw 3/8-16 x 1 3/4 hex head stainless steel |
4 |
|
|
34 |
999-0635
|
Nut 3/8-16 hex stainless steel |
6 |
|
|
35 |
202-3099
|
Nut |
2 |
|
|
36 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
37 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
8 |
|
|
38 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
5 |
|
|
39 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
|
40 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
20 |
|
|
41 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
22 |
|
|
42 |
999-1603
|
Screw 8-32 x 1 flat head phillips SS |
4 |
|
|
43 |
999-1480
|
Screw 1/4-20 x 5/8 button head socket cap stainless steel |
4 |
|
|
44 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
1 |
|
|
45 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
4 |
|
|
46 |
202-2208
|
Compression spring |
4 |
|
|
47 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
48 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
5 |
|
|
49 |
202-2036
|
Cotter pin |
2 |
|
|
50 |
202-3100
|
Tube (clear) |
2 |
|
|
51 |
202-3101
|
Wire reinforced hose 1/2 x 14 inch |
1 |
|
|
52 |
202-3102
|
Lateral arm kit |
1 |
(includes 9-10, 18, 26, 29, and 41) |
|
53a |
202-0330
|
Metal brush driver |
1 |
(before SN 89940) |
|
53b |
202-7038
|
Driver, Brush, Rounded Tooth, Aluminum w/ Insert, Hard coate |
1 |
(after SN 89939) |
|
