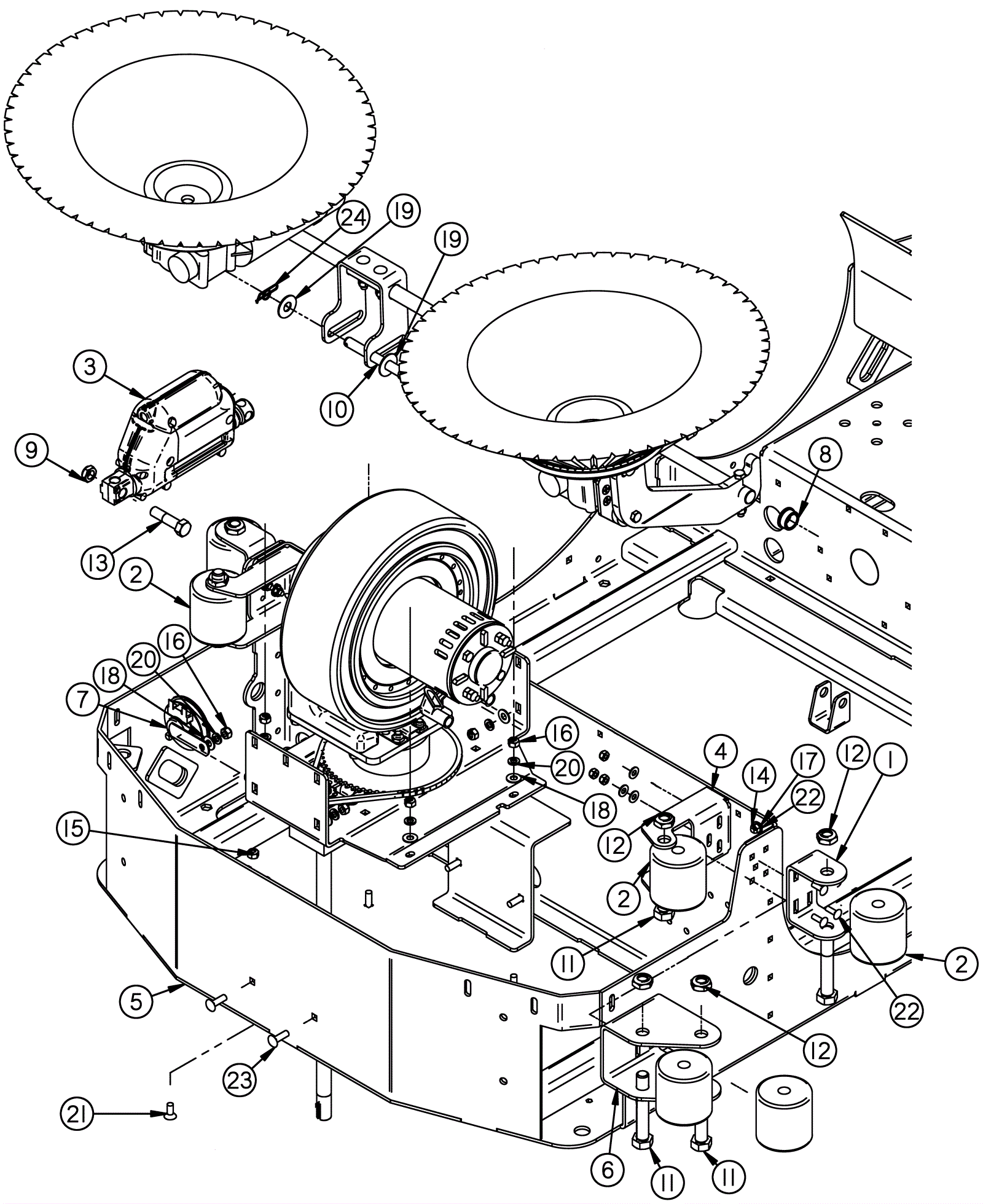

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-0976
|
20 inch roller bracket |
2 |
(40 inch deck) |
|
2 |
202-0756
|
Guide roller |
6 |
|
|
3 |
202-1932
|
36V actuator |
1 |
|
|
4 |
202-5560
|
Lower roller bracket |
2 |
(34 inch deck) |
|
5 |
202-3080
|
Chassis |
1 |
|
|
6 |
202-3081
|
Double roller bracket |
1 |
(40 inch deck) |
|
7 |
202-3082
|
Horn |
1 |
|
|
8 |
202-1397
|
Flanged bushing |
2 |
|
|
9 |
999-0262
|
Nut 1/2-13 nylon insert jam lock zinc plated |
1 |
|
|
10 |
202-3083
|
Clevis pin |
1 |
|
|
11 |
999-1209
|
Bolt 5/8-11 x 4 hex head zinc plated |
6 |
|
|
12 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
6 |
|
|
13 |
999-0657
|
Bolt 1/2-13 x 2 18-8 hex head stainless steel |
1 |
|
|
14 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
9 |
|
|
15 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
16 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
|
17 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
18 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
7 |
|
|
19 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
20 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
8 |
|
|
21 |
999-1494
|
Screw 5/16-18 x 3/4 flat head socket stainless steel |
1 |
|
|
22 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
13 |
|
|
23 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
8 |
|
|
24 |
202-2059
|
Cotter ring |
1 |
|
|
