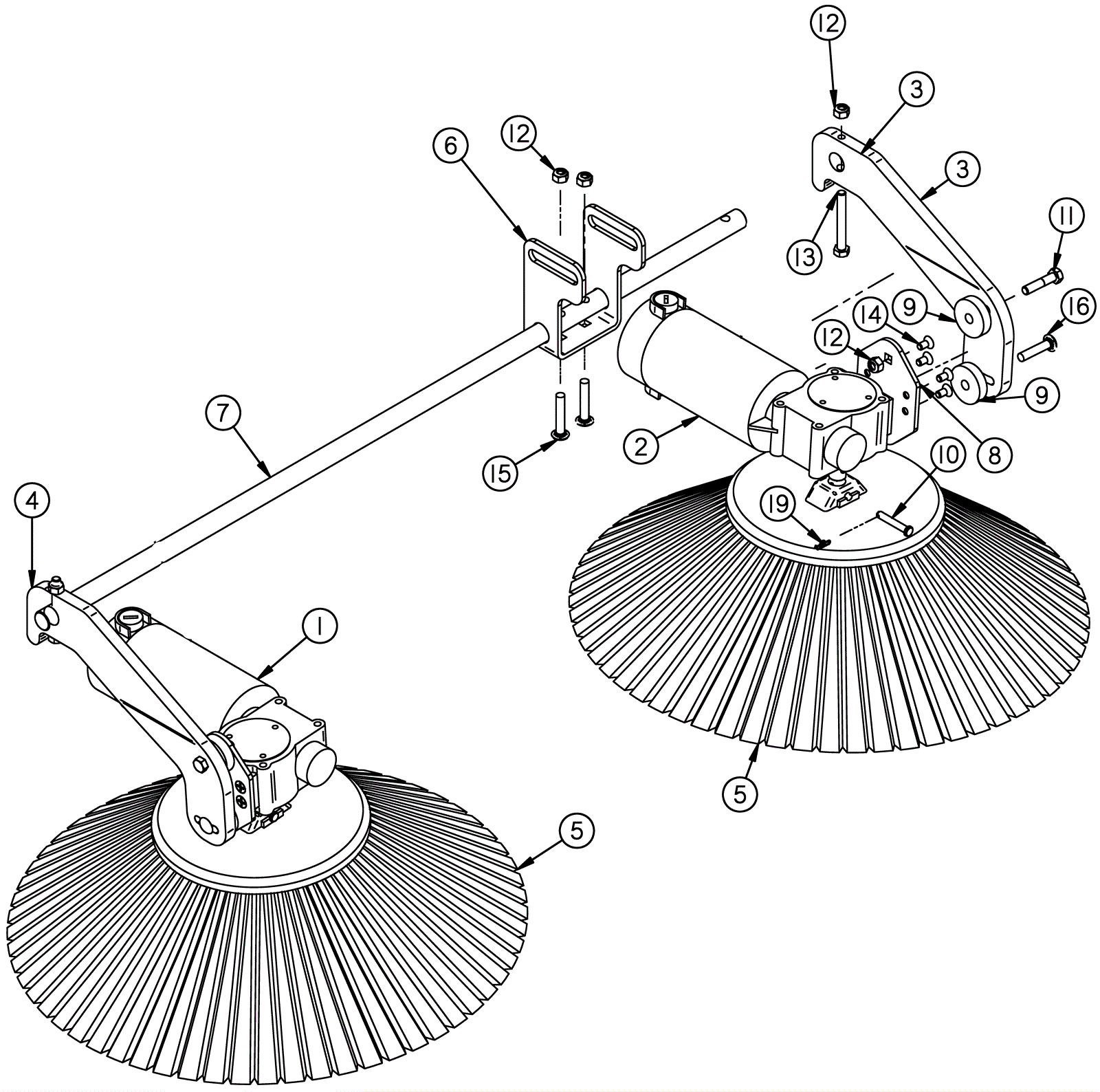

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
302-0131
|
36V motor |
1 |
(after SN 5001) (right side) |
|
1b |
202-3079
|
36V motor |
1 |
(before SN 5000) (right side) |
|
2a |
202-3066
|
36V motor left hand |
1 |
(after SN 5001) (left side) |
|
3 |
202-3068
|
Left side lifting arm |
1 |
|
|
4 |
202-3069
|
Right side lifting arm |
1 |
|
|
5 |
202-3070
|
Polypropelene side broom |
2 |
|
|
6 |
202-3071
|
Pivot bracket |
1 |
|
|
7 |
202-3072
|
Axle |
1 |
|
|
8 |
202-3073
|
Mounting plate |
2 |
|
|
9 |
202-0151
|
Grommet |
4 |
|
|
10 |
202-0805
|
Clevis pin |
2 |
|
|
11 |
999-0552
|
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
2 |
|
|
12 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
|
13 |
999-1491
|
Bolt 5/16-18 x 2 1/2 tapping full thread hex head |
2 |
|
|
14 |
999-1492
|
Screw 1/4-20 x 1/2 flat head full thread stainless steel |
8 |
|
|
15 |
999-1493
|
Bolt 5/16-18 x 1 3/4 round head carriage stainless steel |
2 |
|
|
16 |
999-1370
|
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
2 |
|
|
19 |
202-0585
|
Cotter ring |
2 |
|
|
