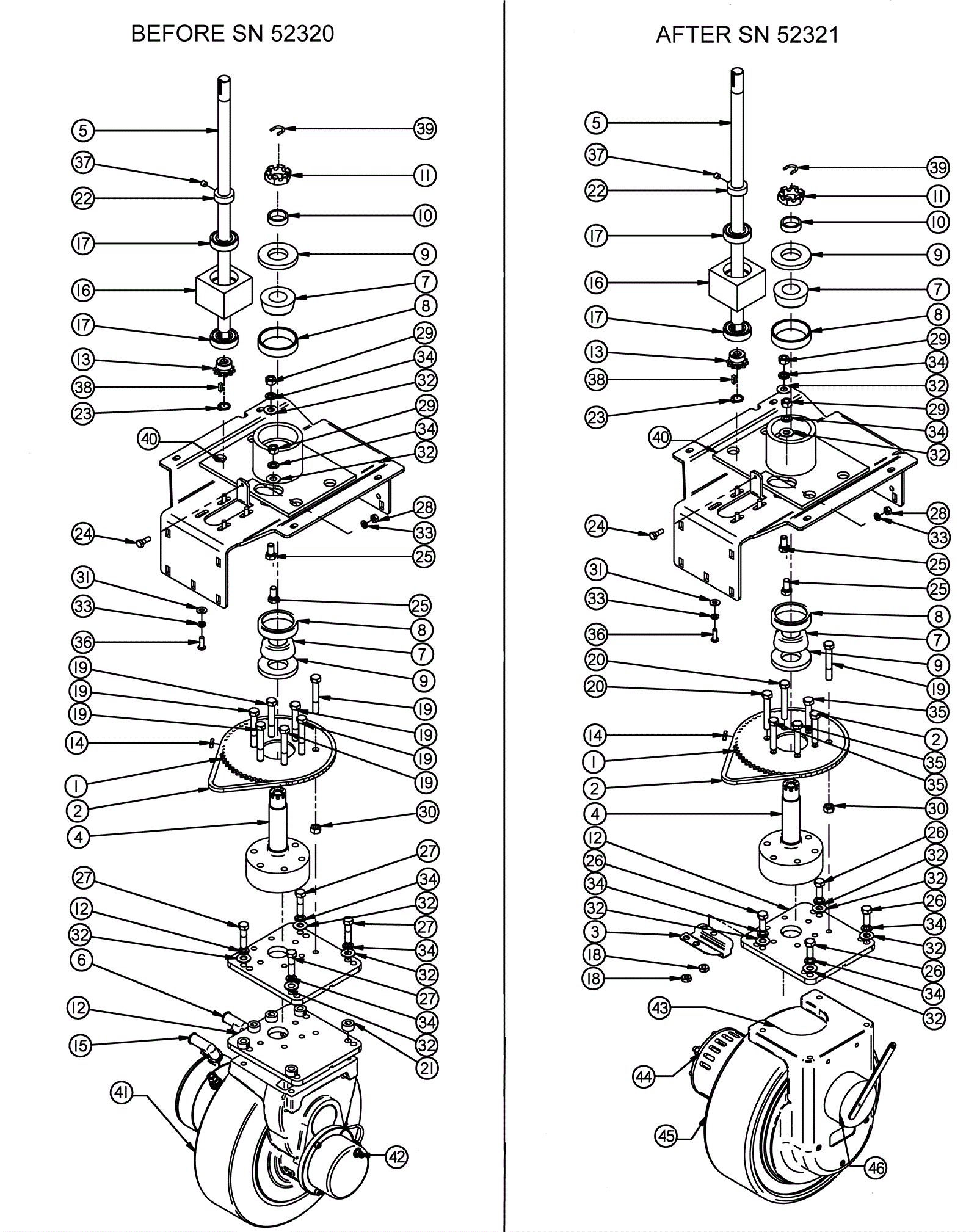

Front Drive Wheel Assembly

#PartDescription ReqNotesAvailability
1 202-1894 60 toothed sprocket 1
2 202-1897 Steering chain 1
3 202-2960 Wire guide 1 (after SN 52321)
4 202-2308 Steering shaft spindle 1
5 202-2527 Lower sheering shaft 1
6 202-2961 Terminal cover (black) 1 (before SN 52320)
7 202-0766 Tapered bearing 2
9 202-0768 Seal 2
10 202-0769 Sleeved bearing 1
11 202-1166 Slotted castle nut 1
12 202-2962 Pivot plate 2
13 202-0280 10 toothed sprocket 1
14 202-0283 Master link 1
15 202-2961 Terminal cover (black) 1 (before SN 52320)
16 202-0771 Bearing block 1
17 202-0160 Bearing 2
18 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 2 (after SN 52321)
19 999-1488 Bolt 3/8-24 x 2 1/2 hex head stainless steel 7
20 999-1488 Bolt 3/8-24 x 2 1/2 hex head stainless steel 2
21 202-2964 Shaft collar 6 (before SN 52320)
22 202-2216 Shaft collar with set screw 1
23 202-0281 Snap ring 1
24 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
25 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
26 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4 (after SN 52321)
27 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel 4 (before SN 52320)
28 999-0609 Nut 1/4-20 hex stainless steel 1
29 999-0635 Nut 3/8-16 hex stainless steel 2
30 999-0169 Nut 3/8-24 hex jam plain finish 1
31 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
32 999-0617 Washer 3/8 x 1 flat stainless steel 10
33 999-0632 Washer 1/4 split lock stainless steel 5
34 999-0659 Washer 3/8 medium split lock stainless steel 10
35 999-1490 Screw 12-11 x 1 pan head slotted stainless steel 4 (after SN 52321)
36 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 4
37 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 1
38 202-0278 Square keyway 1
39 202-2967 S hook 1
41 202-5041 36V 12 inch front drive wheel assembly w/ plate and hardware 1 (before SN 52320 - Polyurethane tire no longer available - Must upgrade to new style drive wheel)
42 202-5041 36V 12 inch front drive wheel assembly w/ plate and hardware 1 (before SN 52320 - Brake no longer available, must upgrade to new style drive wheel)
43a 202-5041 36V 12 inch front drive wheel assembly w/ plate and hardware 1 (includes 44-46) (after SN 52321)
43b 202-3532 36V front drive wheel assembly 1 (for better grip)
44 202-5041 36V 12 inch front drive wheel assembly w/ plate and hardware 1 (after SN 52321)
45a 202-0777 Drive wheel (black) (wheel only) 1 (after SN 52321)
45b 202-0776 Drive wheel (gray) (wheel only) 1 (after SN 52321)
46 202-2455 Brake assembly 1 (after SN 52321)
47 202-0767 Bearing cap 2
48 202-2968 Plate 1 (inlcudes 47)
