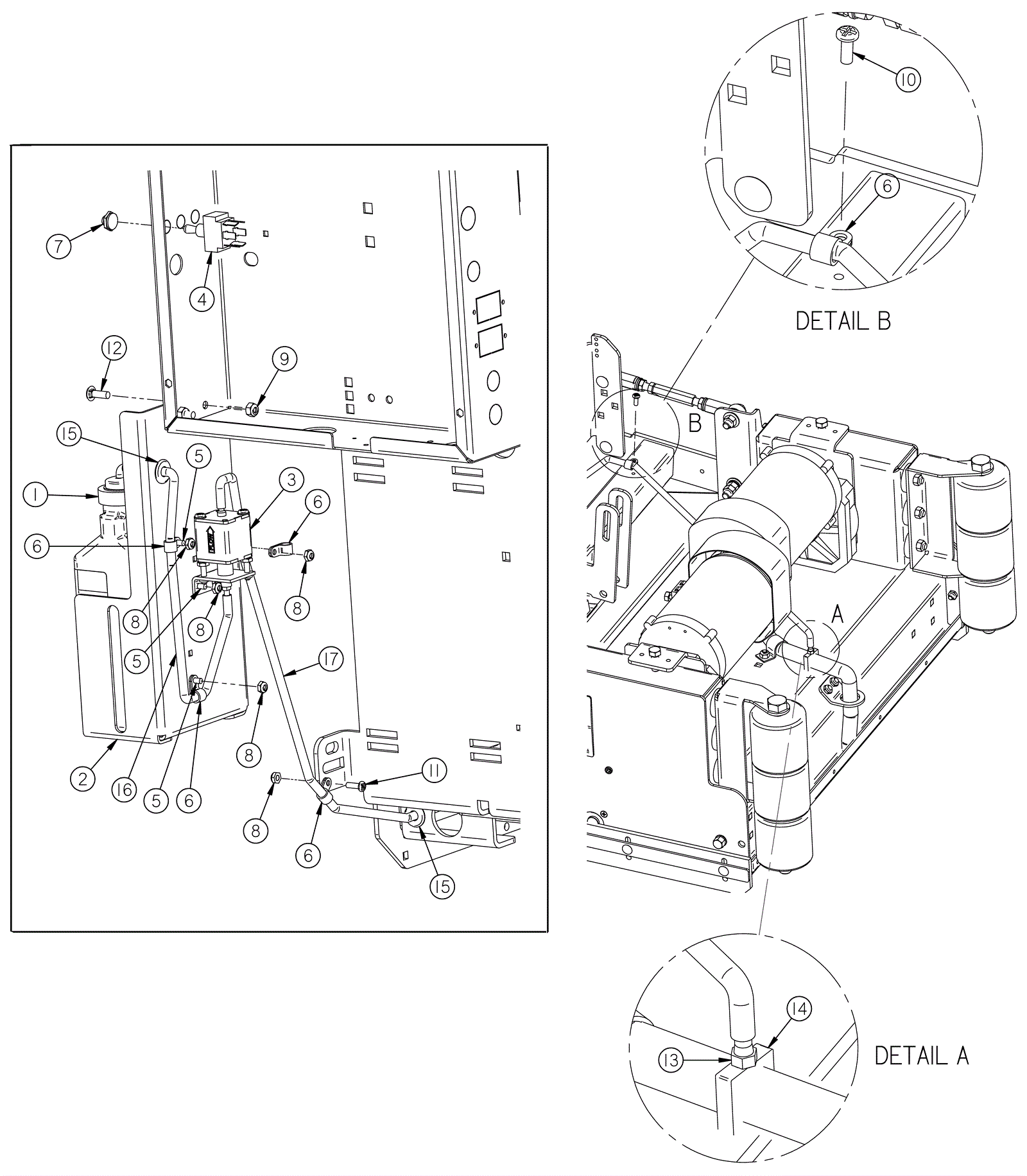

MAGNUM SUDS System Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-3347 Soap jug cap $29.15 1 usually ships 3-11 days
2 202-3502 Soap tray $118.03 1 usually ships 1-5 days
3 202-3503 24V soap pump $961.40 1 usually ships 1-5 days
4 202-3340 Toggle switch $30.69 1 (SUDS main power) usually ships 3-11 days
5 999-1486 Bolt 10-32 x 1/2 round head carriage stainless steel $1.05 5 ships same day
6 202-2431 P clamp $5.50 5 usually ships 1-5 days
7 202-1866 Toggle switch protective boot (green) $13.20 1 usually ships 3-11 days
8 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 6 ships same day
9 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
10 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.99 1 ships same day
11 999-1486 Bolt 10-32 x 1/2 round head carriage stainless steel $1.05 1 ships same day
12 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 2 ships same day
13 202-3343 Barbed fitting $23.54 1 usually ships 1-5 days
14 202-3343 Barbed fitting $23.54 1 usually ships 1-5 days
15 202-3348 Rubber grommet $4.40 3 usually ships 3-11 days
16 202-3504 Hose 3/16 x 20 inch $11.84 1 usually ships 3-11 days
17 202-3505 Hose 3/16 x 72 inch $62.15 1 usually ships 1-5 days
