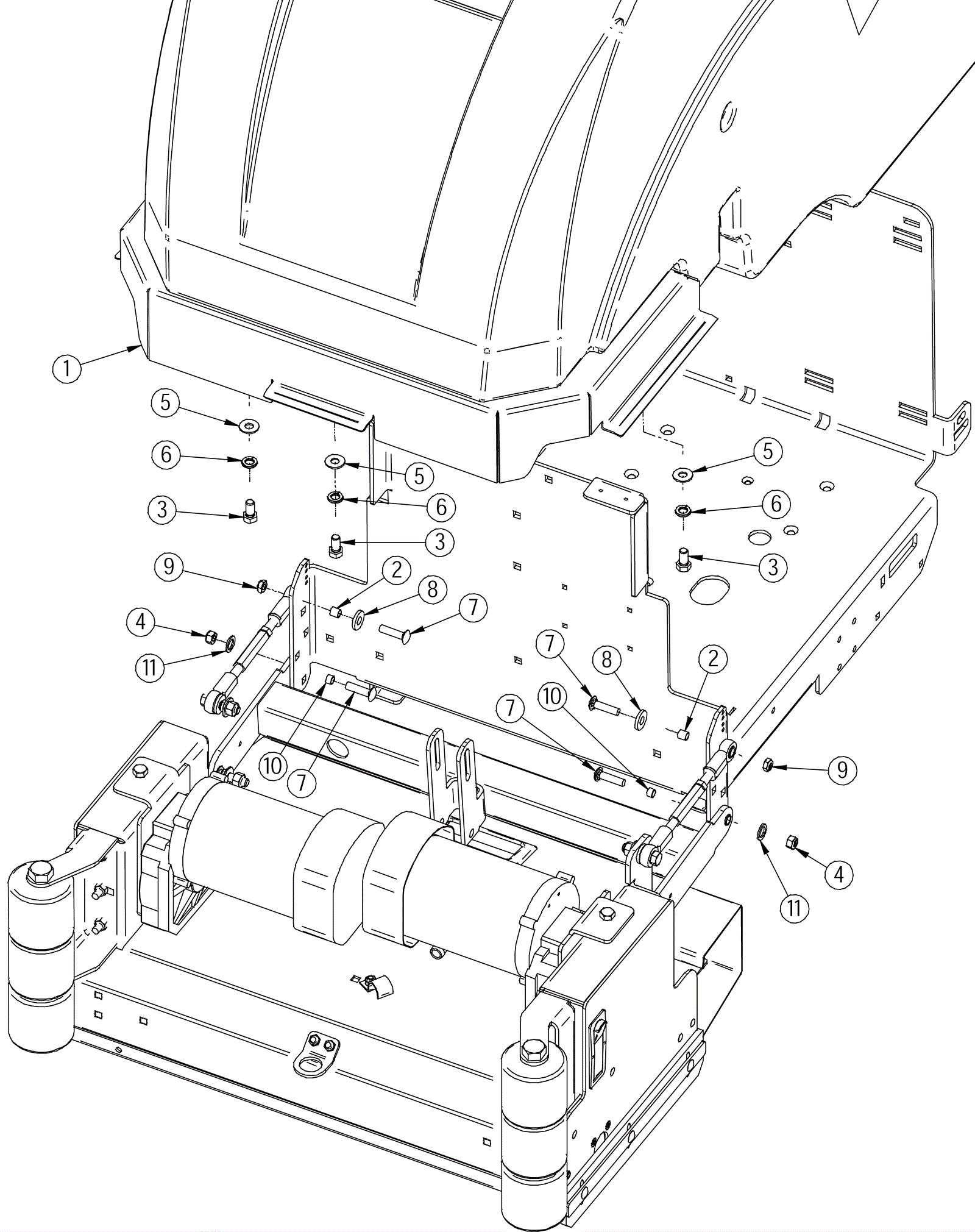

| # | Part | Description |
Req | Notes | Availability |
|---|
1b |
202-3484
|
Side brooms bandeau cover |
1 |
(optional) |
|
2 |
202-3481
|
Sleeved bearing |
2 |
|
|
3 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
3 |
|
|
4 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
5 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
3 |
|
|
6 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
3 |
|
|
7 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
4 |
|
|
8 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
9 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
10 |
202-3128
|
Sleeved bearing |
2 |
|
|
11 |
202-3482
|
Shim |
2 |
|
|
