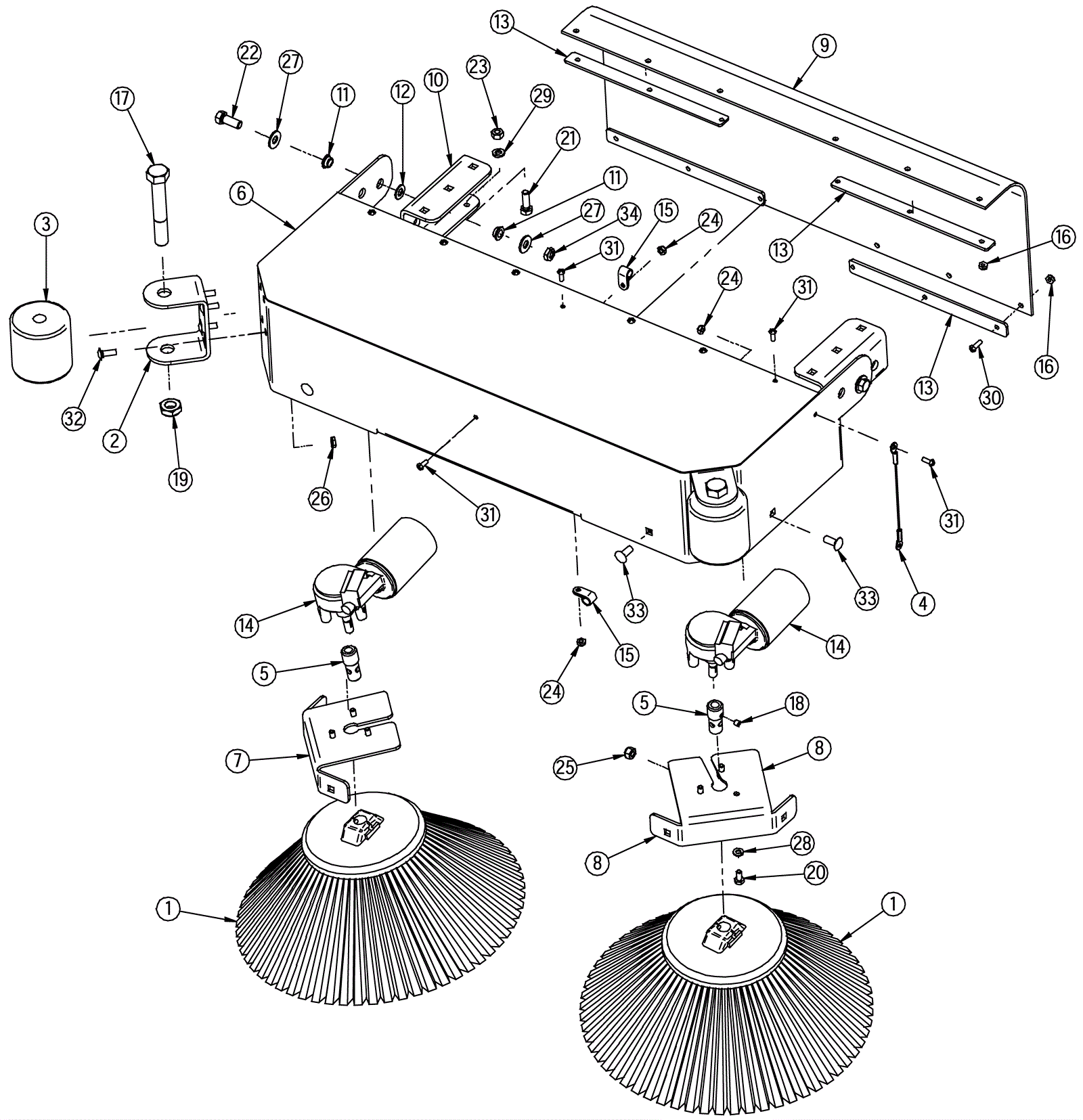

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-1495
|
Polypropylene side broom |
2 |
|
|
2 |
202-0976
|
20 inch roller bracket |
2 |
|
|
3 |
202-0756
|
Guide roller |
2 |
|
|
4 |
202-0902
|
Lanyard |
2 |
|
|
5 |
202-4004
|
Coupler |
2 |
|
|
6 |
202-4005
|
Lifting arm |
1 |
|
|
7 |
202-4006
|
Right side bracket |
1 |
|
|
8 |
202-4007
|
Left side bracket |
1 |
|
|
9 |
202-4008
|
Side broom curtain blade (OBSOLETE) |
1 |
|
|
10 |
202-4009
|
Bracket |
2 |
|
|
11 |
202-1239
|
Flanged bearing |
4 |
|
|
12 |
202-1181
|
Washer 1/2 flat bronze |
2 |
|
|
13 |
202-0474
|
Curtain clamp |
4 |
|
|
14 |
202-2144
|
Side broom motor |
2 |
|
|
15 |
202-2189
|
Loop clamp rubber |
2 |
|
|
16 |
999-1269
|
Nut 10-32 nylon insert jam stainless steel |
12 |
|
|
17 |
999-1209
|
Bolt 5/8-11 x 4 hex head zinc plated |
2 |
|
|
18 |
202-3154
|
Screw 1/4-20 x 1/4 set |
2 |
|
|
19 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
2 |
|
|
20 |
999-1465
|
Screw M6-1 x 14mm hex head zinc plated |
6 |
|
|
21 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
22 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
2 |
|
|
23 |
999-0593
|
Nut 5/16-18 hex stainless steel |
2 |
|
|
24 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
25 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
26 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
8 |
|
|
27 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
4 |
|
|
28 |
999-0632
|
Washer 1/4 split lock stainless steel |
6 |
|
|
29 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
30 |
999-1467
|
Screw #10-32 x 5/8 round head slotted stainless steel |
6 |
|
|
31 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
10 |
|
|
32 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
8 |
|
|
33 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
4 |
|
|
34 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
2 |
|
|
