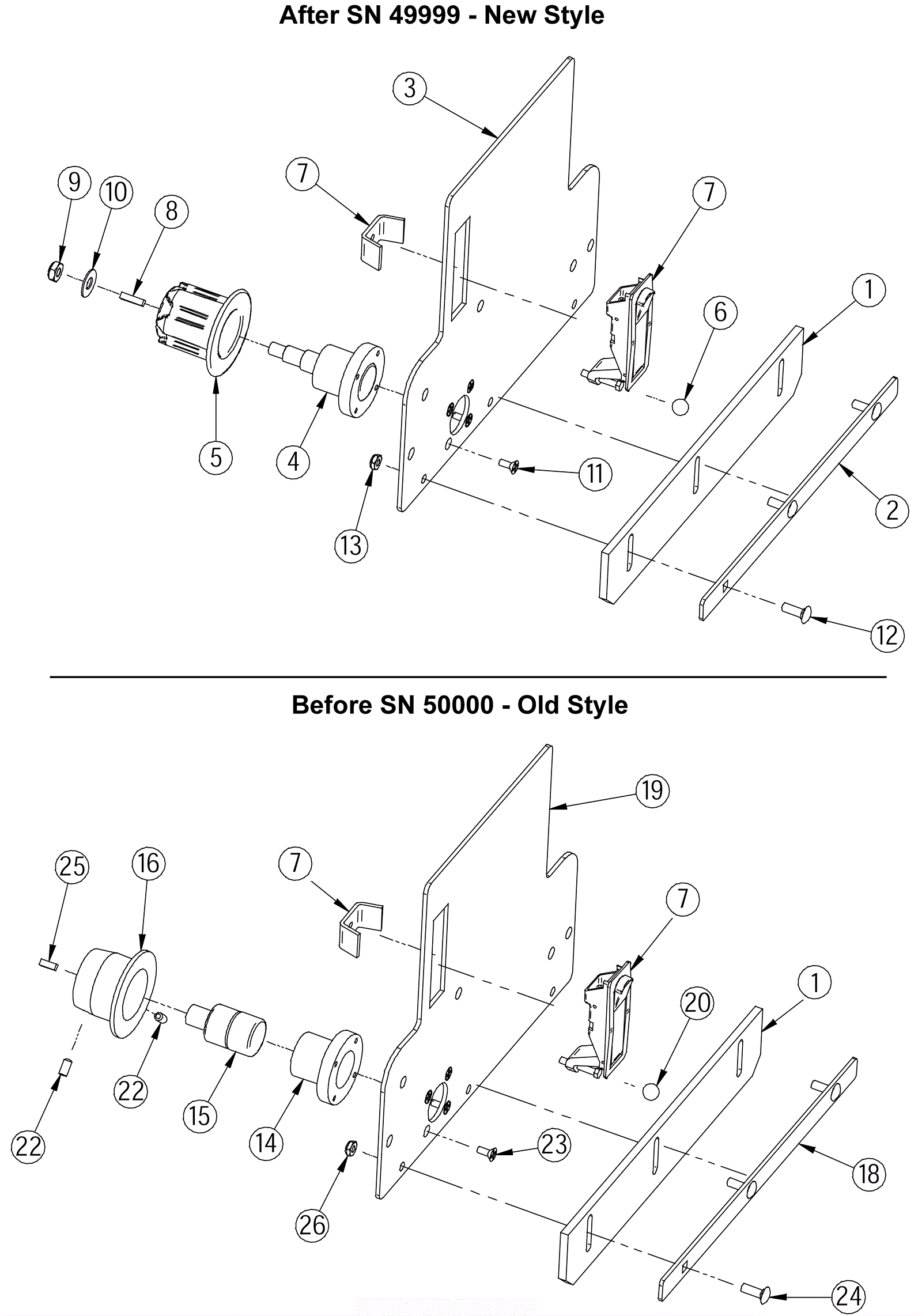

MAGNUM Cylindrical Door Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-3047 Wiper $24.86 1 usually ships 3-11 days
2 202-4075 Wiper band $16.94 1 (after SN 49999) usually ships 3-11 days
3 202-4076 Driver cover $129.58 1 (after SN 49999) usually ships 3-11 days
4 202-3168 Idler drive bearing $141.57 1 (after SN 49999) usually ships 3-11 days
5 202-3147 Brush driver $105.60 1 (after SN 49999) usually ships 3-11 days
6 202-3170 Grommet $8.58 1 (after SN 49999) usually ships 3-11 days
7 202-0404 Latch $49.06 1 ships same day
8 164-1029 Square keyway $13.22 1 (after SN 49999) ships same day
9 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 1 (after SN 49999) ships same day
10 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 (after SN 49999) ships same day
11 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel $0.99 4 (after SN 49999) ships same day
12 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 3 (after SN 49999) ships same day
13 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 3 (after SN 49999) ships same day
14 202-0265 Idler bearing housing $54.23 1 (before SN 50000) usually ships 3-11 days
15 202-4077 Idler bearing $167.86 1 (before SN 50000) usually ships 3-11 days
16 202-4078 Brush idler $79.09 1 (before SN 50000) usually ships 3-11 days
18 202-4075 Wiper band $16.94 1 (before SN 50000) usually ships 3-11 days
19 202-4076 Driver cover $129.58 1 (before SN 50000) usually ships 3-11 days
20 202-3170 Grommet $8.58 1 (before SN 50000) usually ships 3-11 days
22 999-1468 Screw 1/4-20 x 1/2 knurled point set alloy steel $0.99 2 (before SN 50000) ships same day
23 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel $0.99 4 (before SN 50000) ships same day
24 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 3 (before SN 50000) ships same day
25 202-0278 Square keyway $5.50 1 (before SN 50000) usually ships 3-11 days
26 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 3 (before SN 50000) ships same day
N/S 202-3550 Cylindrical door assembly $478.72 2 usually ships 3-11 days
