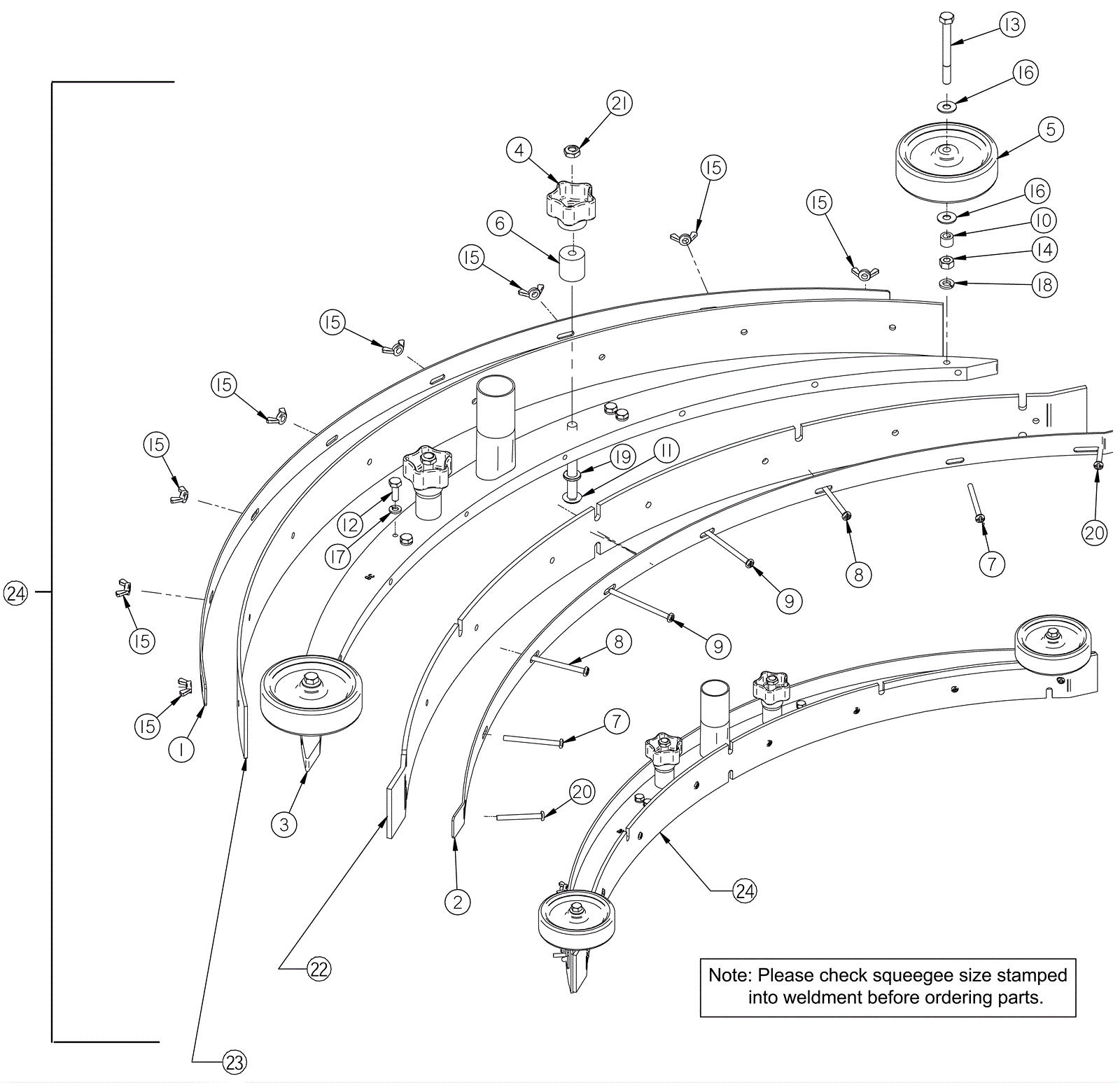

MAGNUM Squeegee Assembly - 38 inch

#PartDescriptionPriceReqNotesAvailability
1 202-0576 38 inch rear squeegee band $71.94 1 ships same day
2 202-0580 38 inch front squeegee band $53.79 1 usually ships 3-11 days
3 202-0578 38 inch squeegee weldment $462.77 1 usually ships 3-11 days
4 202-1999 Star knob $43.89 2 usually ships 3-11 days
5 202-0174 Squeegee guide wheels w/ collar and hardware (pkg of 2) $50.49 2 usually ships 3-11 days
6 202-0582 Stand-off $11.88 2 usually ships 3-11 days
7 999-1017 Screw 10-32 x 2 1/4 pan head phillips stainless steel $1.67 2 ships same day
8 999-0860 Screw 10-32 x 2 1/2 pan head slotted stainless steel $2.20 2 ships same day
9 999-1244 Screw 10-32 x 3 pan head phillips stainless steel $1.85 2 ships same day
10 202-0807 Shaft collar $5.50 2 usually ships 3-11 days
11 999-1273 Screw 3/8-16 x 3 1/2 button head socket stainless steel $14.63 2 ships same day
12 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
13 999-0911 Screw 5/16-18 x 3 hex head stainless steel $4.75 2 ships same day
14 999-0593 Nut 5/16-18 hex stainless steel $0.99 2 ships same day
15 999-0058 Nut 10-32 wing zinc plated $3.85 8 ships same day
16 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
17 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
18 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
19 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
20 999-0868 Screw 10-32 x 1 3/4 pan head phillips stainless steel $3.85 2 ships same day
21 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel $1.52 2 ships same day
22a 202-2931 Squeegee blade 38 inch linatex front $79.95 1 ships same day
22b 202-0577 Squeegee blade 38 inch gum rubber front $34.54 1 usually ships 3-11 days
23a 202-2930 Squeegee blade 38 inch linatex rear (red) $52.25 1 usually ships 3-11 days
23b 202-0579 Squeegee blade 38 inch gum rubber rear $39.27 1 usually ships 3-11 days
N/S 202-2934 Squeegee mounting hardware kit $28.93 1 usually ships 3-11 days
