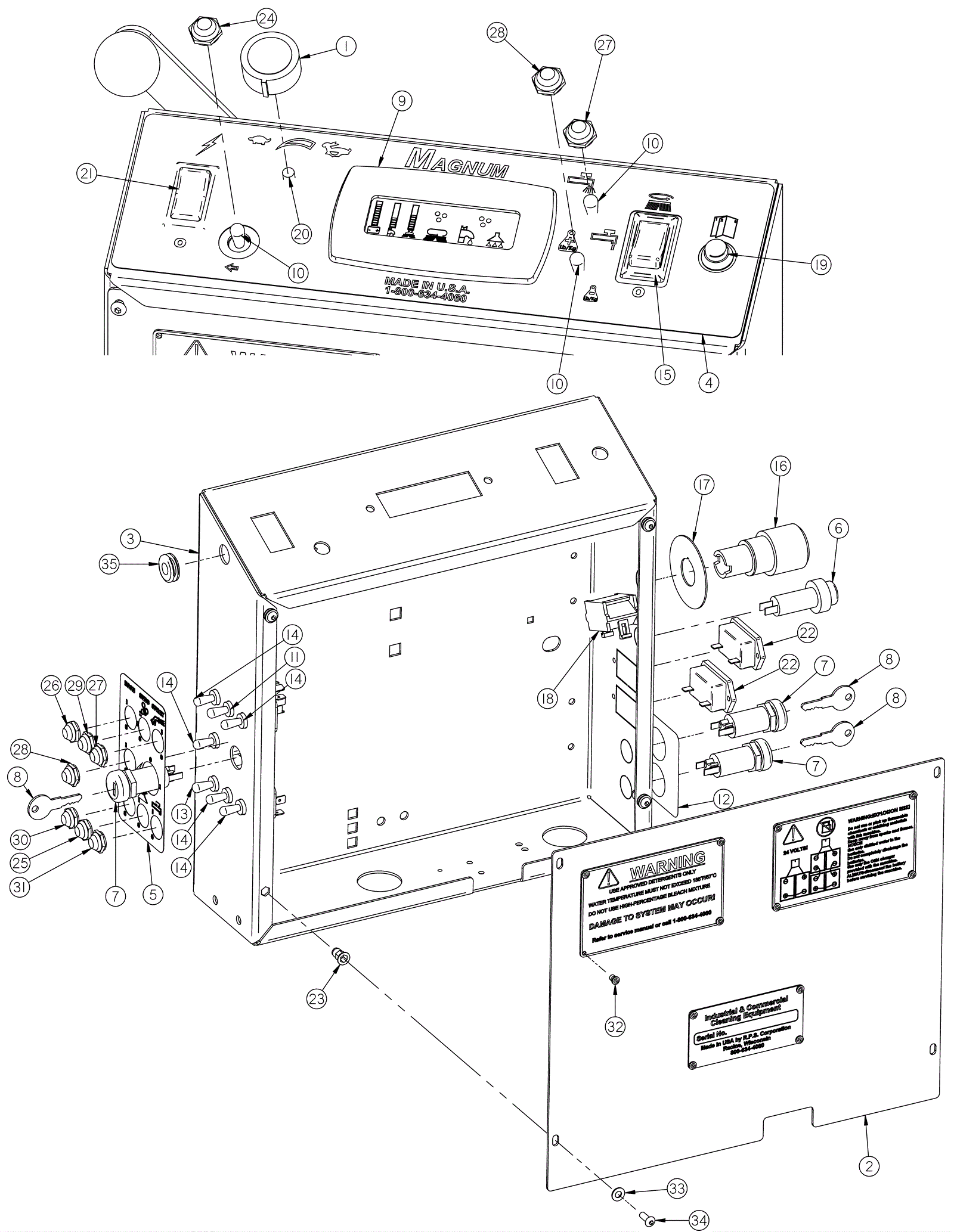

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-0989
|
Control knob with washer (red) |
1 |
(speed) |
|
2 |
202-3460
|
Control panel plate |
1 |
|
|
3 |
202-3461
|
Control panel box |
1 |
|
|
4 |
202-3462
|
Control panel decal |
1 |
|
|
5 |
202-3463
|
SUDS decal |
1 |
|
|
6 |
202-3464
|
Charger status indicator |
1 |
|
|
7a |
202-2300
|
Key switch with key entry (red) and ring (black) |
3 |
(optional) (OEM) |
|
7b |
991-5161
|
Key switch with keys |
3 |
(optional) (NON-OEM) |
|
8 |
991-1634
|
Key (pkg of 2) |
2 |
(optional) |
|
9 |
202-1317
|
LCD window display |
1 |
|
|
10 |
202-0521
|
Toggle switch |
3 |
(solution flow, reverse and brush pressure) |
|
11 |
202-3340
|
Toggle switch |
1 |
(dispenses soap into solution tank) |
|
12 |
202-3313
|
Hour meter decal |
1 |
|
|
13 |
202-1992
|
Toggle switch |
1 |
(oscillates scrub head to increase stripping) |
|
14 |
202-0097
|
Toggle switch |
5 |
(optional) (side broom, water shut-off, vacuum wand and energy saving functions) |
|
15 |
202-0369
|
2 position rocker switch |
1 |
(scrub deck raising and lowering) |
|
16 |
202-0826
|
Emergency shut-off switch |
1 |
(optional) |
|
17 |
202-0827
|
Emergency legend plate |
1 |
(optional) |
|
19 |
202-0879
|
Push button switch |
1 |
(toggles display screens) |
|
20 |
202-0535
|
Speed control potentiometer |
1 |
|
|
21 |
202-0370
|
Switch |
1 |
(main power) |
|
22 |
202-0376
|
Hour meter |
2 |
|
|
23 |
999-0460
|
Nut 10-32 hex |
2 |
|
|
24 |
202-1864
|
Toggle switch protective boot (red) |
1 |
|
|
25 |
202-1977
|
Toggle switch protective boot (yellow) |
1 |
(optional) |
|
26 |
202-1866
|
Toggle switch protective boot (green) |
1 |
|
|
27 |
202-1865
|
Toggle switch protective boot (blue) |
2 |
(optional) |
|
28 |
202-1355
|
Toggle switch protective boot (black) |
2 |
|
|
29 |
202-2221
|
Toggle switch protective boot (gray) |
1 |
(optional) |
|
30 |
202-3465
|
Toggle switch protective boot (orange) |
1 |
(optional) |
|
31 |
202-3466
|
Toggle switch protective boot (light blue) |
1 |
(optional) |
|
33 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
34 |
999-0965
|
Screw 10-32 x 1/2 button head socket cap stainless steel |
2 |
|
|
35 |
202-3467
|
Rubber grommet |
1 |
|
|
N/S |
202-0825
|
Emergency contact |
1 |
(optional) |
|
N/S |
202-3315
|
Blind rivet |
12 |
|
|
