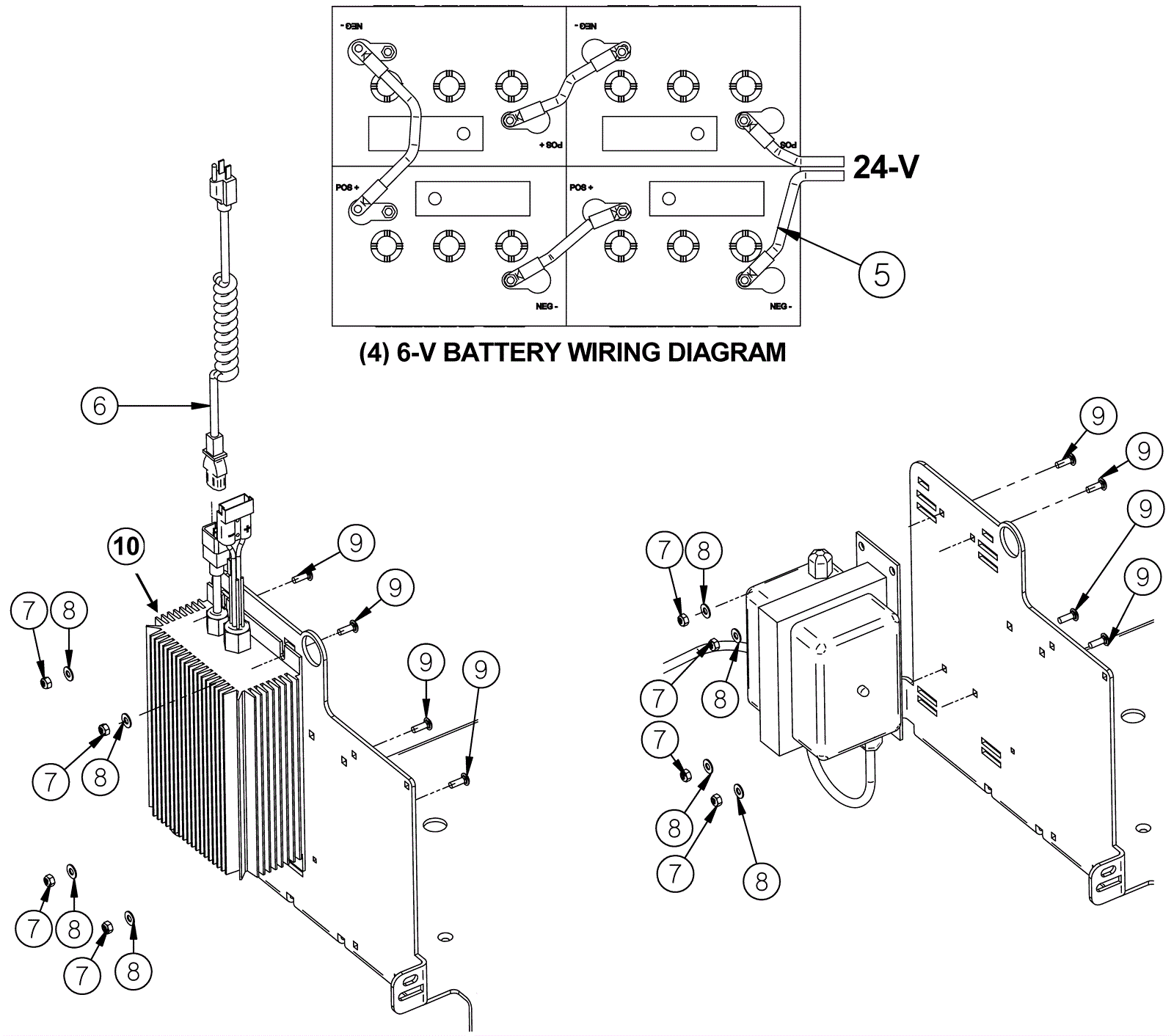

| # | Part | Description |
Req | Notes | Availability |
|---|
5 |
202-3476
|
Wire harness assembly |
1 |
|
|
6 |
202-3370
|
Power cord |
1 |
|
|
7 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
|
8 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
9 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
8 |
|
|
10 |
202-3396
|
24V 25amp onboard battery charger |
1 |
|
|
