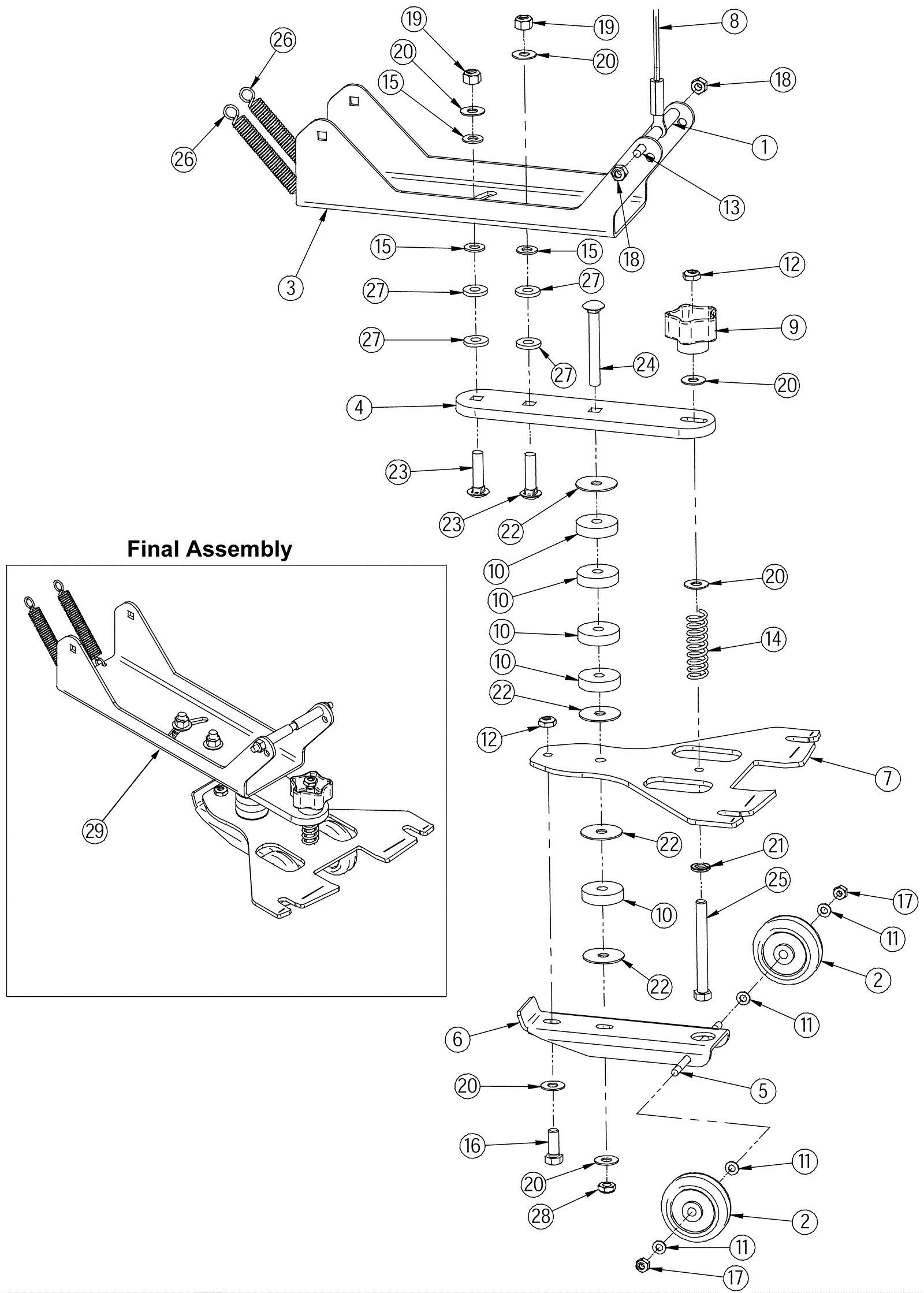

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-2205
|
Tube |
2 |
|
|
2 |
202-0008
|
Squeegee wheel with hardware (pkg of 2) |
1 |
|
|
3 |
202-3456
|
Swing plate |
1 |
|
|
4 |
202-3457
|
Plate |
1 |
|
|
5 |
202-3368
|
Threaded stud |
1 |
|
|
6 |
202-3458
|
Squeegee trail mount |
1 |
|
|
7 |
202-3459
|
Squeegee triangle plate |
1 |
|
|
8 |
202-3387
|
Squeegee lifting cable |
1 |
|
|
9a |
202-0809
|
Brass star knob |
1 |
|
|
9b |
991-2411
|
Brass star knob |
1 |
(NON-OEM) |
|
10 |
202-0151
|
Grommet |
5 |
|
|
11 |
999-0563
|
Washer 1/4 x 1/16 flat nylon |
4 |
|
|
12 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
2 |
|
|
13 |
202-0811
|
Double ended stud |
1 |
|
|
14 |
202-2945
|
Spring |
1 |
|
|
15 |
999-1007
|
Washer 3/8 x 1/16 flat nylon |
3 |
|
|
16 |
999-1498
|
Screw 3/8-24 x 1 hex head stainless steel |
1 |
|
|
17 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
18 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
19 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
2 |
|
|
20 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
6 |
|
|
21 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
1 |
|
|
22 |
999-1446
|
Washer 3/8 x 1 1/2 fender stainless steel |
4 |
|
|
23 |
999-1348
|
Bolt 3/8-16 x 1 1/2 carriage head stainless steel |
2 |
|
|
24 |
999-0626
|
Screw 3/8-16 x 3 carriage head stainless steel |
1 |
|
|
25 |
202-1054
|
Bolt 3/8-24 x 3 1/2 hex head stainless steel |
1 |
|
|
26 |
202-2208
|
Compression spring |
2 |
|
|
27 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
28 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
1 |
|
|
29 |
202-2971
|
Squeegee trail arm assembly |
1 |
(includes 1-28) |
|
