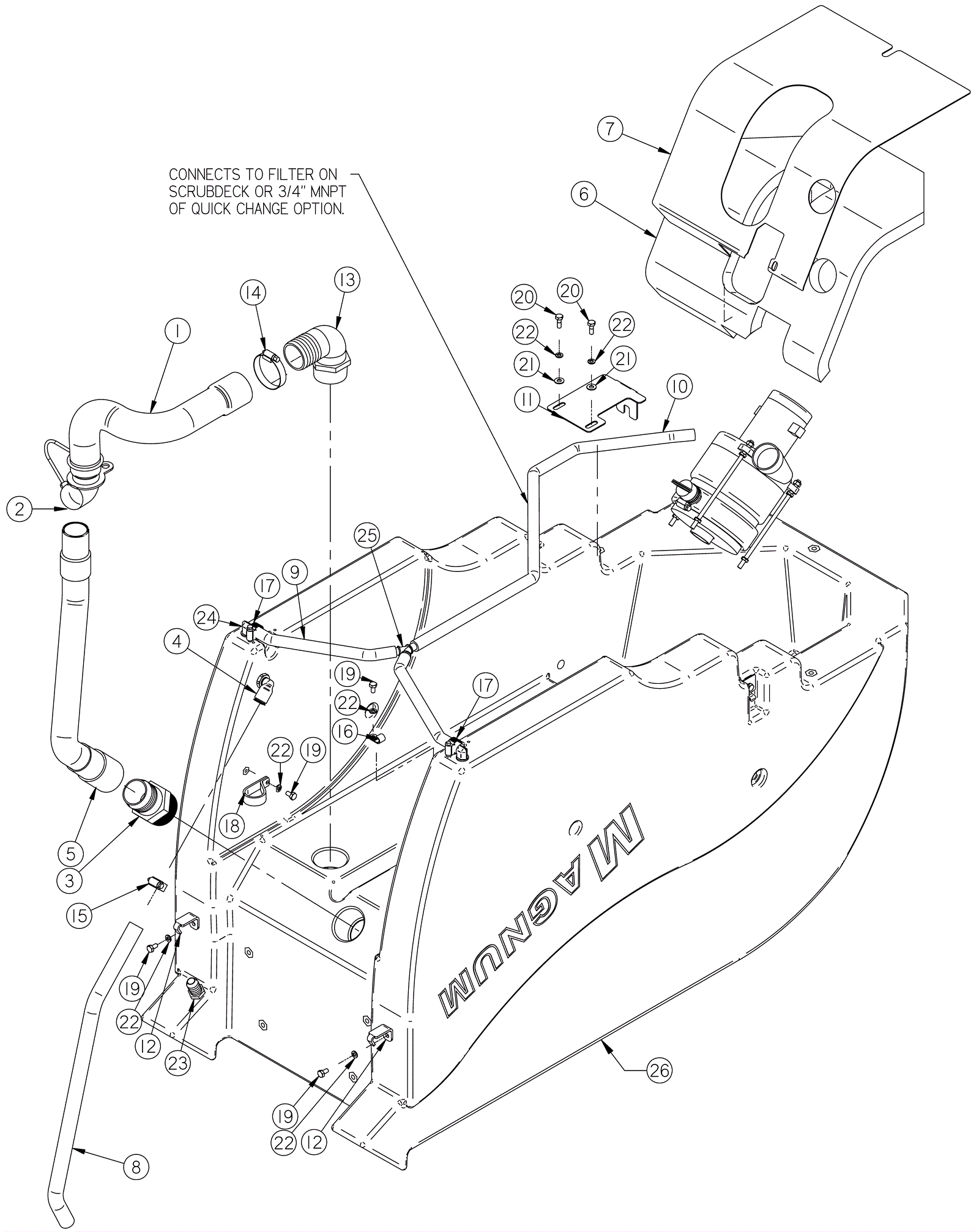

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-2882
|
Drain hose with cap |
1 |
(recovery tank) |
|
2 |
202-3373
|
Drain hose cap |
1 |
|
|
3 |
202-2025
|
Hosebarb |
1 |
|
|
4 |
202-2108
|
Nylon elbow |
1 |
|
|
5 |
202-3023
|
Squeegee vacuum hose |
1 |
|
|
6 |
202-3430
|
Vacuum motor insulation |
1 |
|
|
7 |
202-3431
|
Insulation support |
1 |
|
|
8 |
202-3432
|
Hose 3/4 x 26 inch (clear) |
1 |
|
|
9 |
202-3433
|
Hose 1/2 x 11 1/2 inch (clear) |
2 |
|
|
10 |
202-3434
|
Hose 1/2 x 36 1/2 inch (clear) |
1 |
|
|
11 |
202-3435
|
Plate |
1 |
|
|
12 |
202-3436
|
Hook |
2 |
|
|
13 |
202-0703
|
Elbow |
1 |
|
|
14 |
997-2011
|
Hose clamp |
1 |
|
|
15 |
202-1031
|
Clamp |
1 |
|
|
16 |
202-2189
|
Loop clamp rubber |
1 |
|
|
17 |
202-0680
|
Hose clamp |
2 |
|
|
18 |
202-3175
|
P clamp |
1 |
|
|
19 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
4 |
|
|
20 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
21 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
22 |
999-0632
|
Washer 1/4 split lock stainless steel |
6 |
|
|
23 |
202-3439
|
Male brass fitting |
1 |
|
|
24 |
202-3440
|
Barbed elbow |
1 |
|
|
25 |
202-3239
|
Tee |
1 |
|
|
26a |
202-3428
|
Tank (granite) |
1 |
|
|
26b |
202-3429
|
Tank assembly (red) |
1 |
|
|
