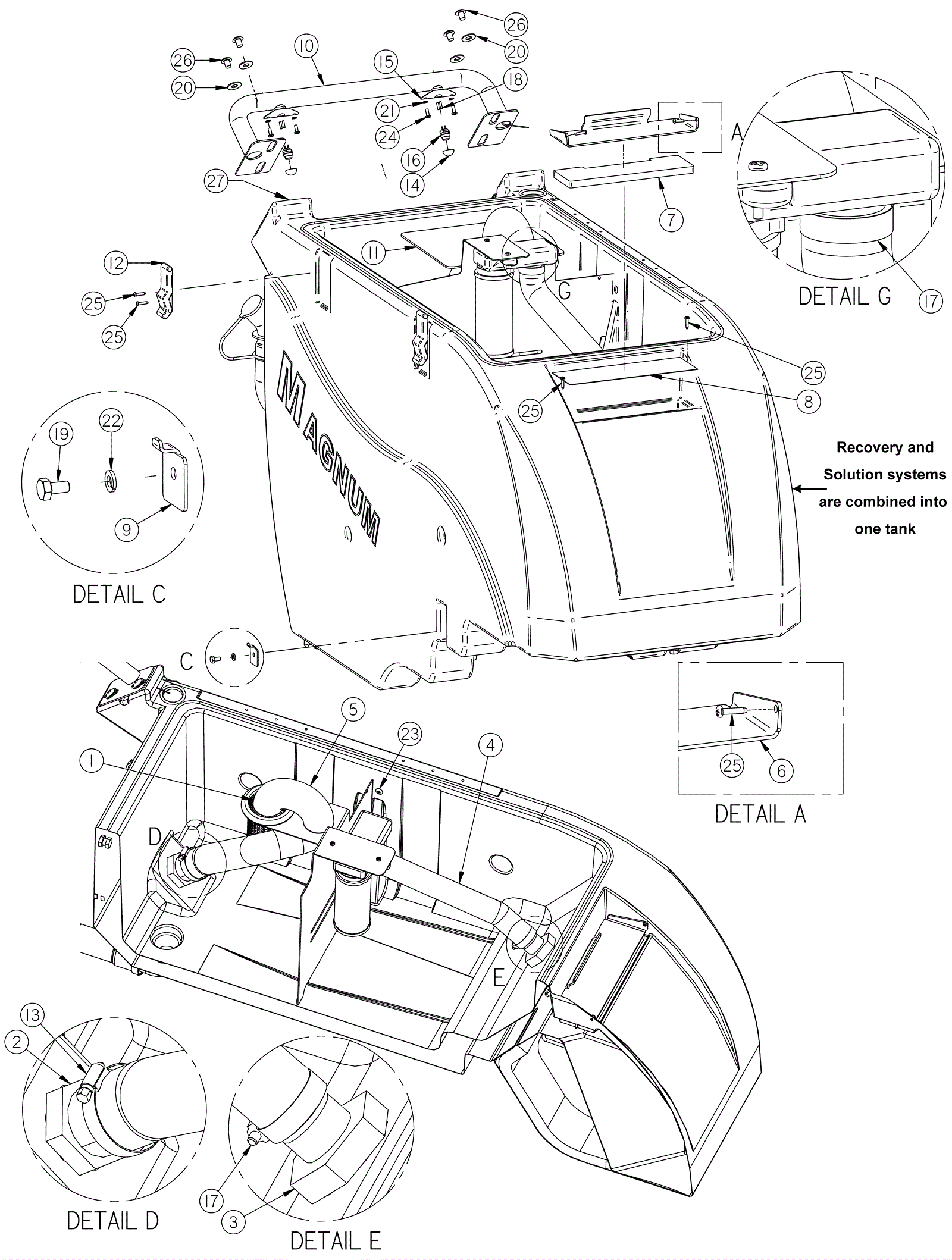

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3036
|
Strainer screen |
1 |
|
|
2 |
202-2025
|
Hosebarb |
1 |
|
|
3 |
202-2118
|
Hosebarb |
1 |
|
|
4 |
202-3422
|
Hose |
1 |
(vacuum motor) |
|
5 |
202-3277
|
Hose 2 x 27 inch (gray) |
1 |
(squeegee hose to drain saver to catch debris) |
|
6 |
202-3423
|
Solution fill lid stainless steel |
1 |
|
|
7 |
202-3424
|
Solution fill lid gasket |
1 |
|
|
8 |
202-3425
|
Screen |
1 |
|
|
9 |
202-3044
|
Clip |
2 |
|
|
10 |
202-3426
|
Handlebar (OBSOLETE) |
1 |
|
|
11 |
202-3251
|
Splash panel |
1 |
|
|
12 |
202-1487
|
Latch |
2 |
|
|
13 |
997-2011
|
Hose clamp |
1 |
|
|
14 |
202-3427
|
Button cover |
1 |
|
|
15 |
202-0869
|
Switch cover |
1 |
|
|
16 |
202-0879
|
Push button switch |
1 |
|
|
17 |
202-3256
|
Hose clamp |
2 |
|
|
18 |
202-2254
|
Heat shrink |
1 |
|
|
19 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
2 |
|
|
20 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
21 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
22 |
999-0632
|
Washer 1/4 split lock stainless steel |
1 |
|
|
23 |
999-1290
|
Screw #14 x 1 truss head phillips stainless steel |
2 |
|
|
24 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
1 |
|
|
25 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
5 |
|
|
26 |
999-1481
|
Screw 3/8-16 x 1/2 button head stainless steel |
2 |
|
|
27a |
202-3428
|
Tank (granite) |
1 |
|
|
27b |
202-3429
|
Tank assembly (red) |
1 |
|
|
