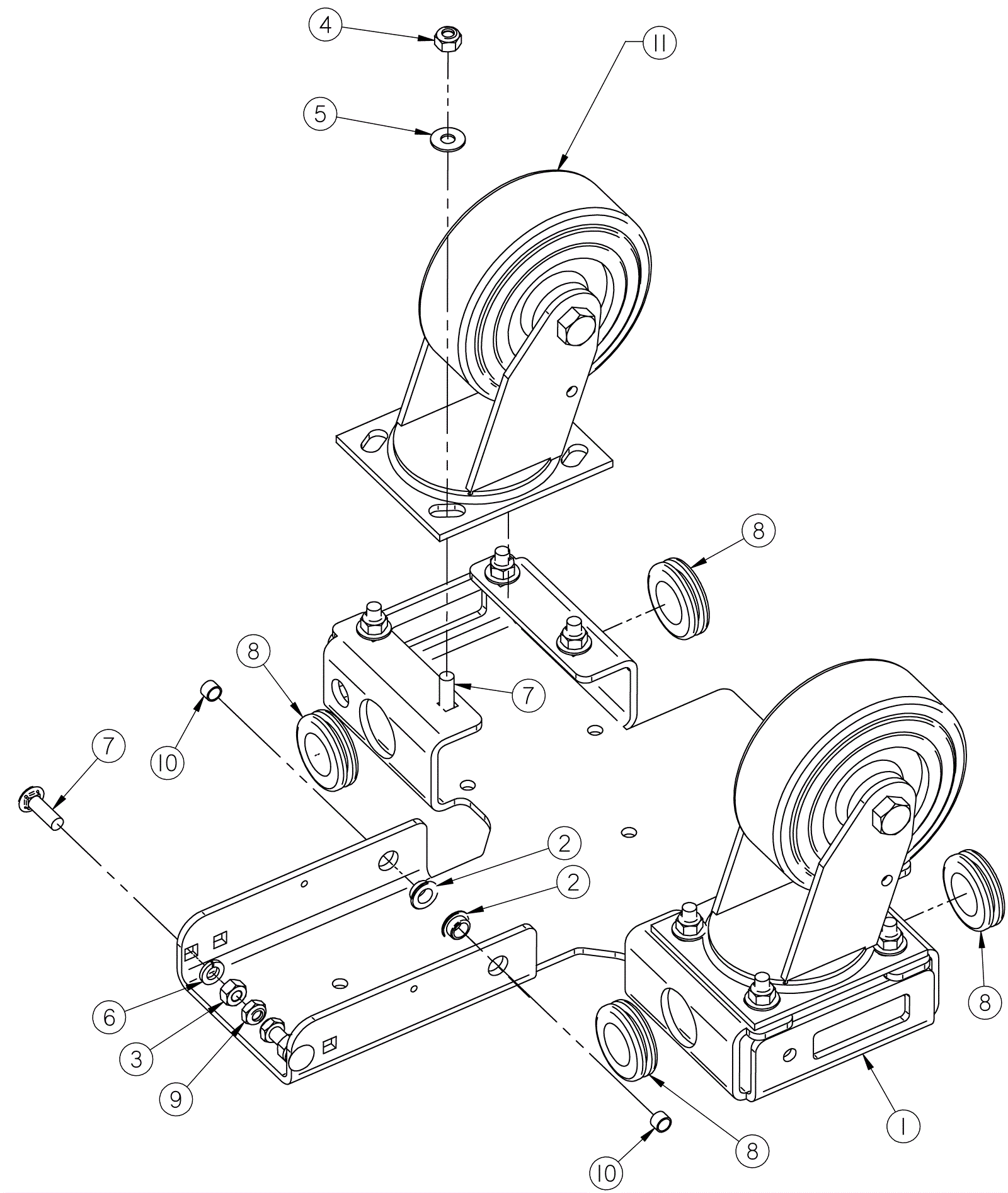

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3404
|
Caster weldment |
1 |
|
|
2 |
202-1239
|
Flanged bearing |
2 |
|
|
3 |
999-0593
|
Nut 5/16-18 hex stainless steel |
2 |
|
|
4 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
|
5 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
8 |
|
|
6 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
7 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
10 |
|
|
8 |
202-2592
|
Grommet |
4 |
|
|
9 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
10 |
202-3128
|
Sleeved bearing |
2 |
|
|
11a |
202-2897
|
5 inch caster wheel (red) |
2 |
|
|
11b |
202-3367
|
5 inch caster wheel (soft gray) |
2 |
|
|
11c |
202-3405
|
5 inch caster wheel (solid gray) |
2 |
|
|
