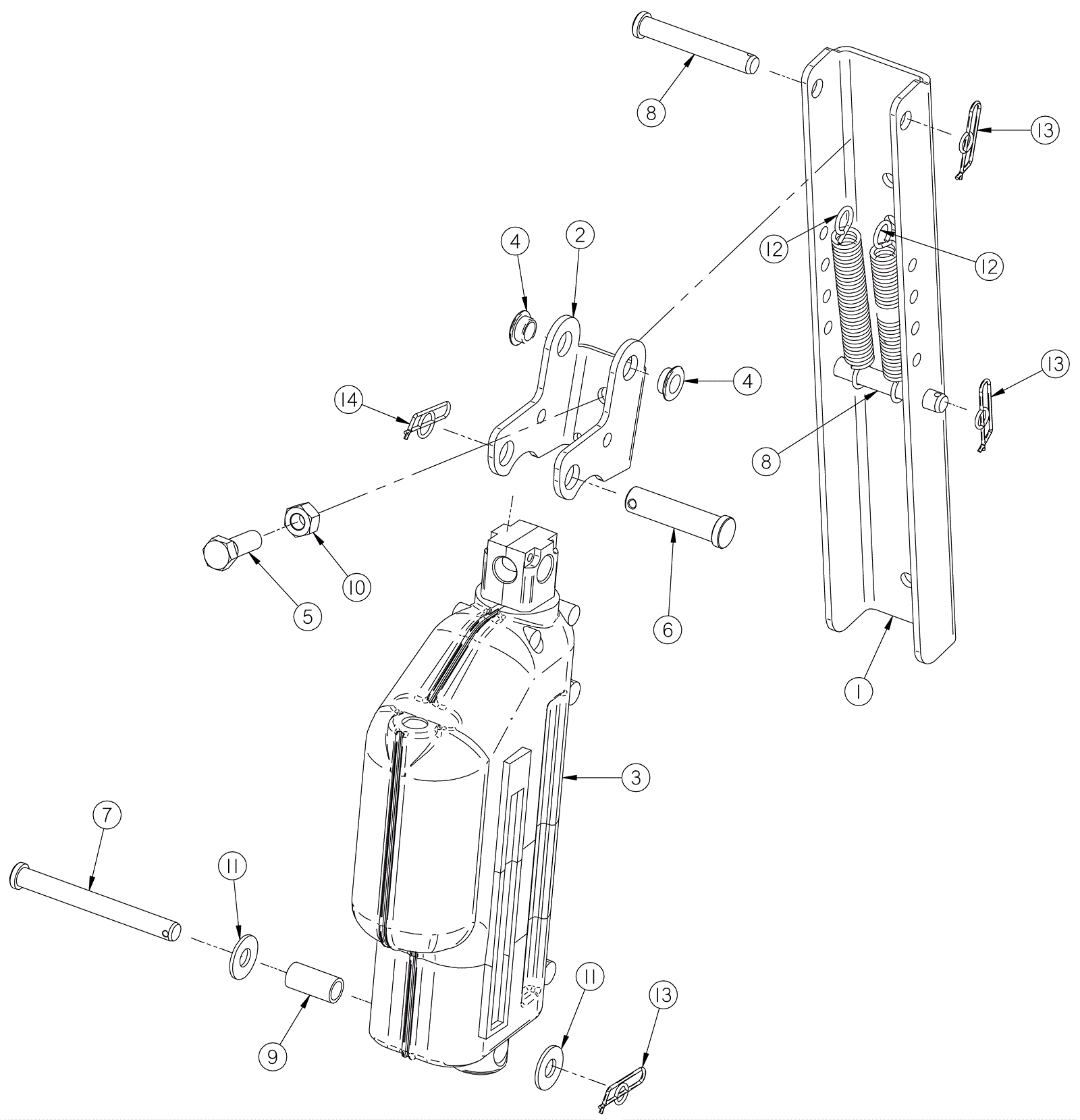

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-2201
|
Actuator weldment |
1 |
|
|
2 |
202-3400
|
Actuator arm |
1 |
|
|
3 |
202-3376
|
24V actuator |
1 |
|
|
4 |
202-1239
|
Flanged bearing |
2 |
|
|
5 |
999-1135
|
Bolt 3/8-16 x 1 1/8 hex head stainless steel |
1 |
|
|
6 |
202-3401
|
Clevis pin |
1 |
|
|
7 |
999-1633
|
Clevis pin 3/8 x 3 1/2 |
1 |
|
|
8 |
202-5193
|
Clevis pin 3/8 x 2 |
2 |
|
|
9 |
202-1951
|
Sleeve |
1 |
|
|
10 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
1 |
|
|
11 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
12 |
202-2208
|
Compression spring |
2 |
|
|
13 |
202-2036
|
Cotter pin |
3 |
|
|
14 |
202-2059
|
Cotter ring |
1 |
|
|
