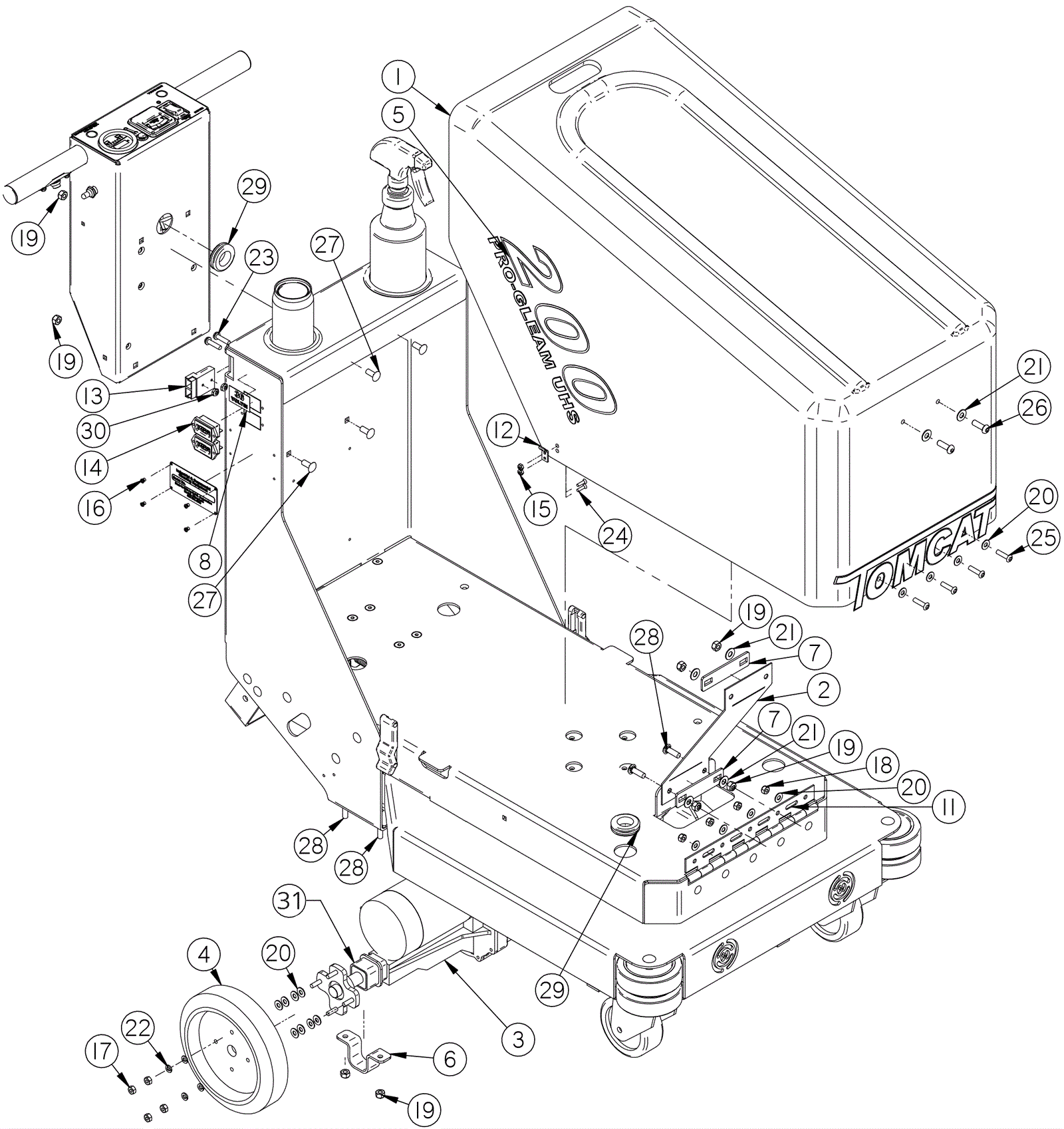

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-2844
|
200/240 Cover |
$523.93
|
1 |
|
usually ships 3-11 days |
2 |
202-5171
|
Tank strap |
$21.56
|
1 |
|
usually ships 3-11 days |
3 |
202-2826
|
36V Transaxle |
$1,053.36
|
1 |
|
usually ships 3-11 days |
4 |
202-2827
|
Wheel |
$102.30
|
2 |
|
usually ships 3-11 days |
5 |
202-2845
|
200 Mold in decail |
$31.13
|
2 |
|
usually ships 1-5 days |
6 |
202-0911
|
Axle mount |
$17.93
|
2 |
|
usually ships 1-5 days |
7 |
202-3279
|
Tank support strap |
$10.78
|
2 |
|
usually ships 3-11 days |
8 |
202-5154
|
Decal |
$5.50
|
1 |
|
usually ships 1-5 days |
11 |
202-2377
|
11 inch hinge |
$39.27
|
1 |
|
usually ships 1-5 days |
12 |
202-1487
|
Latch |
$25.19
|
2 |
|
usually ships 3-11 days |
13 |
202-2009
|
50amp connector (gray) |
$48.40
|
1 |
|
usually ships 3-11 days |
14 |
202-0376
|
Hour meter |
$86.68
|
2 |
|
usually ships 3-11 days |
15 |
999-1036
|
Nut 8-32 hex NTM nylon insert jam lock stainless steel |
$0.99
|
4 |
|
ships same day |
16 |
202-3315
|
Blind rivet |
$5.50
|
4 |
|
usually ships 1-5 days |
17 |
999-0609
|
Nut 1/4-20 hex stainless steel |
$0.99
|
4 |
|
ships same day |
18 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
4 |
|
ships same day |
19 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
13 |
|
ships same day |
20 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
24 |
|
ships same day |
21 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
6 |
|
ships same day |
22 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
4 |
|
ships same day |
23 |
999-0342
|
Screw 1/4-20 x 1 pan head phillips stainless steel |
$0.99
|
2 |
|
ships same day |
24 |
999-1678
|
Screw 8-32 x 5/8 flat head phillips stainless steel |
$0.99
|
4 |
|
usually ships 1-5 days |
25 |
999-1294
|
Screw 1/4-20 x 1 button head socket cap stainless steel |
$0.99
|
4 |
|
ships same day |
26 |
999-1507
|
Screw 5/16-18 x 1 button head socket stainless steel |
$1.88
|
2 |
|
ships same day |
27 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
$2.16
|
4 |
|
ships same day |
28 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
$1.34
|
6 |
|
ships same day |
29 |
202-2592
|
Grommet |
$5.50
|
2 |
|
usually ships 3-11 days |
30 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
$0.99
|
2 |
|
ships same day |
31 |
202-1628
|
MOUNTING SLEEVE |
$5.50
|
1 |
|
usually ships 1-5 days |
N/S |
202-5192
|
Cup holder |
$10.12
|
1 |
|
usually ships 3-11 days |
