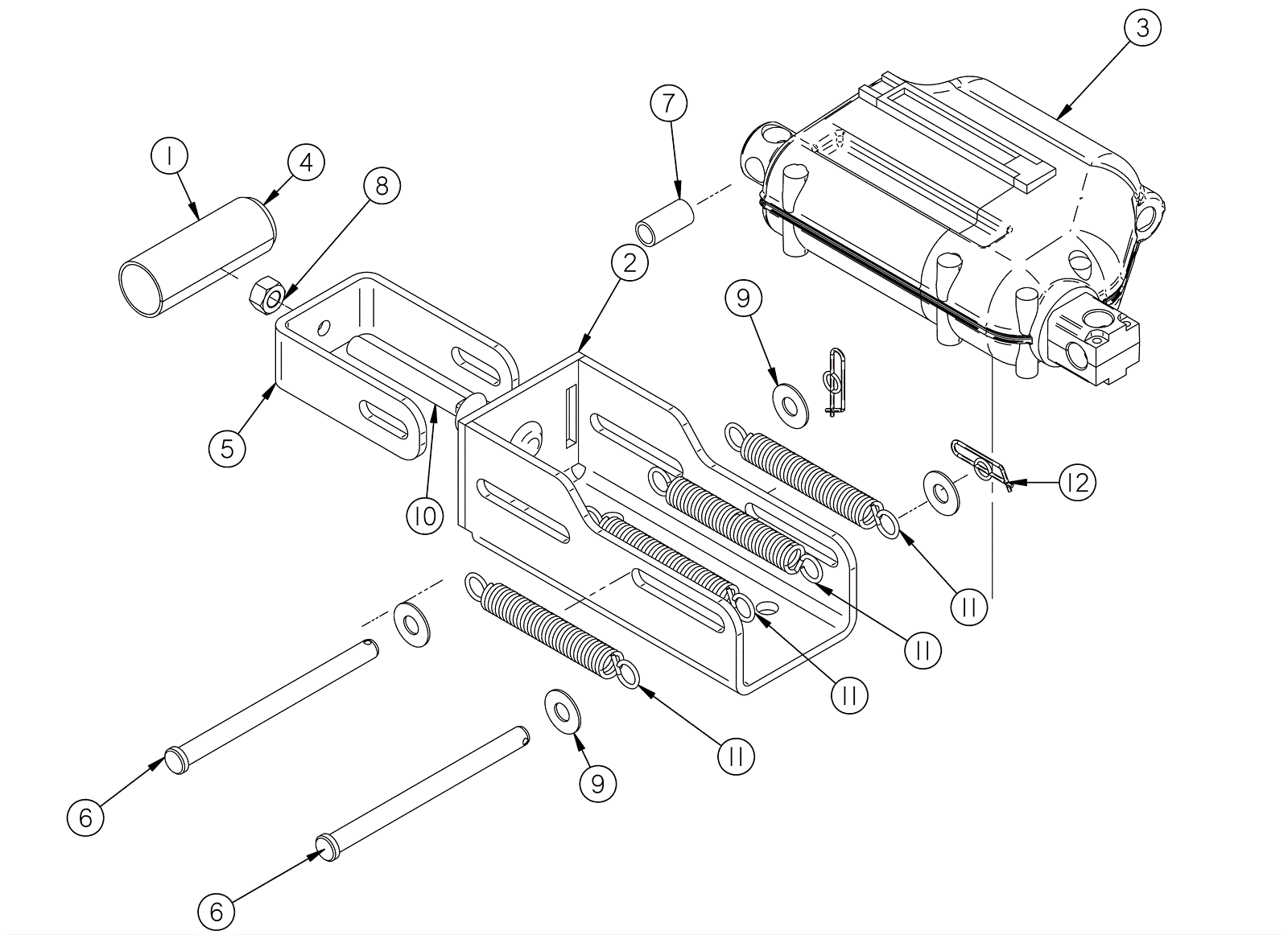

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-3541
|
Down pressure decal |
$15.70
|
1 |
|
usually ships 3-10 days |
2 |
202-2840
|
Actuator slide |
$92.50
|
1 |
|
usually ships 1-5 days |
3 |
202-2841
|
36V 2 stroke actuator |
$375.10
|
1 |
|
usually ships 1-5 days |
4 |
202-2565
|
Spring adjustment knob |
$67.20
|
1 |
|
usually ships 3-10 days |
5 |
202-2568
|
Actuator spring adjustment bracket |
$28.53
|
1 |
|
ships same day |
6 |
202-3097
|
Clevis pin |
$11.70
|
2 |
|
usually ships 1-5 days |
7 |
202-1951
|
Sleeve |
$5.50
|
1 |
|
usually ships 3-10 days |
8 |
999-0635
|
Nut 3/8-16 hex stainless steel |
$0.90
|
1 |
|
ships same day |
9 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
$1.82
|
4 |
|
ships same day |
10 |
999-0626
|
Screw 3/8-16 x 3 carriage head stainless steel |
$5.00
|
1 |
|
ships same day |
11 |
202-2208
|
Compression spring |
$5.80
|
4 |
|
ships same day |
12 |
202-2036
|
Cotter pin |
$5.00
|
2 |
|
usually ships 3-10 days |
