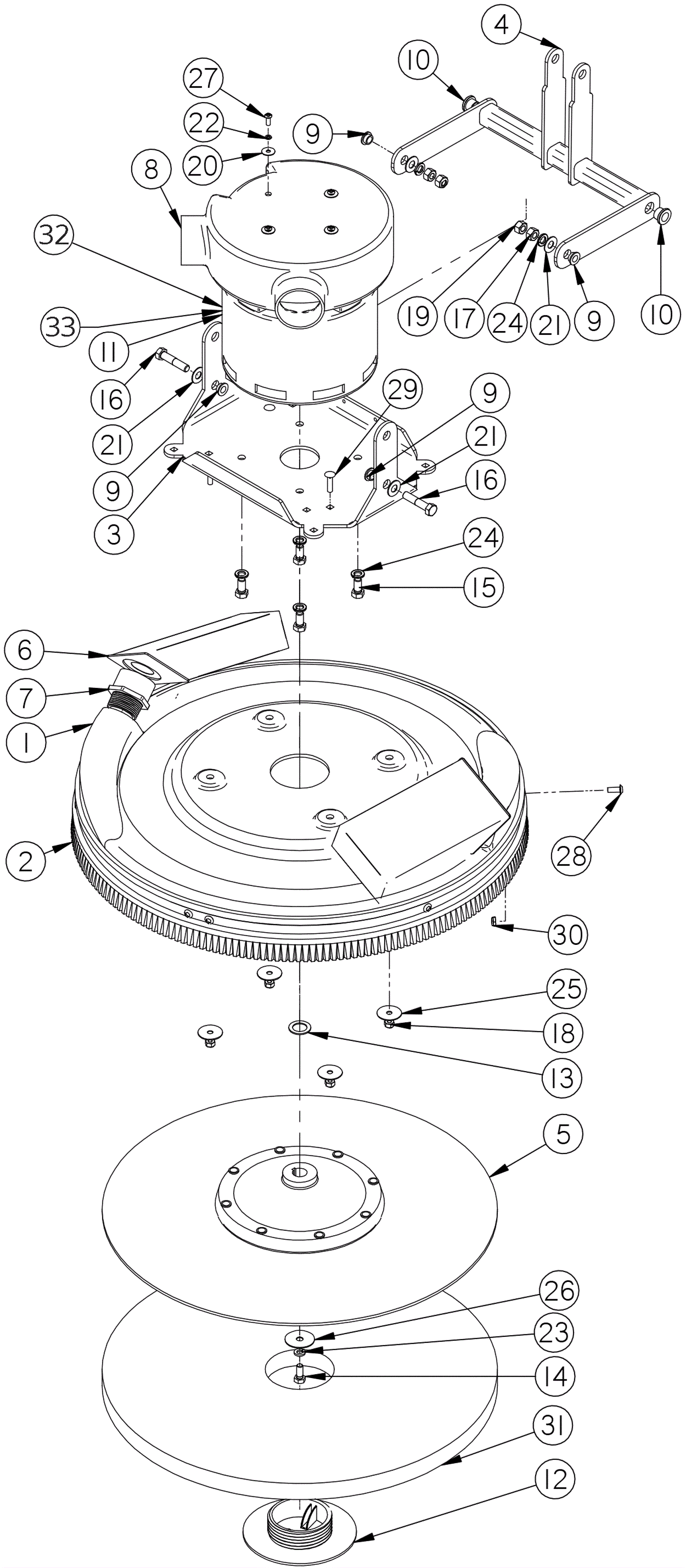

200 Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-2834 20 inch Burnisher shroud $121.77 1 usually ships 3-11 days
2 202-2835 20 inch Shroud curtain $149.93 1 usually ships 3-11 days
3 202-2836 Scrub deck $125.40 1 usually ships 1-5 days
4 202-2824 Lift arm $260.48 1 usually ships 1-5 days
5 202-2837 Pad driver $212.85 1 usually ships 3-11 days
6 202-2828 Paper filter bags (set of 8) $32.01 2 usually ships 3-11 days
7 202-2540 M1 - 1/4 NPT to 2 inch OD Adapter $25.30 2 ships same day
8 202-2550 Motor cover $43.56 1 usually ships 3-11 days
9 202-1239 Flanged bearing $5.50 4 usually ships 3-11 days
10 202-0845 Bearing 1/2 x 5/8 x 1/2 flanged $5.50 2 usually ships 3-11 days
11 202-2556 Burnisher motor 36V $785.18 1 usually ships 3-11 days
12 991-2202 Big mouth pad holder set (blue) $17.75 1 ships same day
13 202-1204 Washer 3/4 x 1 1/8 flat stainless steel $5.50 1 usually ships 3-11 days
14 202-2838 Screw 5/16 inch - 24 x 3/4 inch head cap, ss $5.50 1 usually ships 3-11 days
15 202-2839 Screw 3/8 inch - 16 x 5/8 inch head cap, ss $5.50 4 usually ships 3-11 days
16 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 2 ships same day
17 999-0635 Nut 3/8-16 hex stainless steel $0.99 2 ships same day
18 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
19 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 2 ships same day
20 202-3316 Washer flat stainless steel $5.50 4 usually ships 3-11 days
21 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
22 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
23 999-0553 Washer 5/16 medium split lock stainless steel $0.99 1 ships same day
24 999-0659 Washer 3/8 medium split lock stainless steel $0.39 6 ships same day
25 999-0975 Washer 1/4 x 1 1/4 fender stainless steel $0.99 4 ships same day
26 999-1213 Washer 5/16 x 1 1/2 fender stainless steel $0.99 1 ships same day
27 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.99 4 ships same day
28 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel $0.99 7 ships same day
29 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel $1.23 4 ships same day
30 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 7 ships same day
31a 255-2040 20 inch aqua plus burnishing pad (pkg of 5) $42.00 1 usually ships 6-38 days
31b 202-1173 Natural blend white pad Call for price 1 usually ships 3-11 days
31c 202-6510 20 inch Tan Burnish Pad (Case of 5) $67.87 1 usually ships 3-11 days
31d 202-6493 20 inch Tan Natural Burnisher Pad (Case of 5 pads) $101.42 1 usually ships 3-11 days
31e 202-6509 20 inch Burisher Pad, Pink (Case of 5) $54.45 1 usually ships 3-11 days
32 202-3003 Motor 36V 78 amp burnisher $765.27 1 usually ships 3-11 days
33a 202-1129 Carbon brushes Call for price 1 (standard motor) usually ships 3-11 days
33b 202-7133 Carbon brush $42.35 1 (HD motor) usually ships 3-11 days
