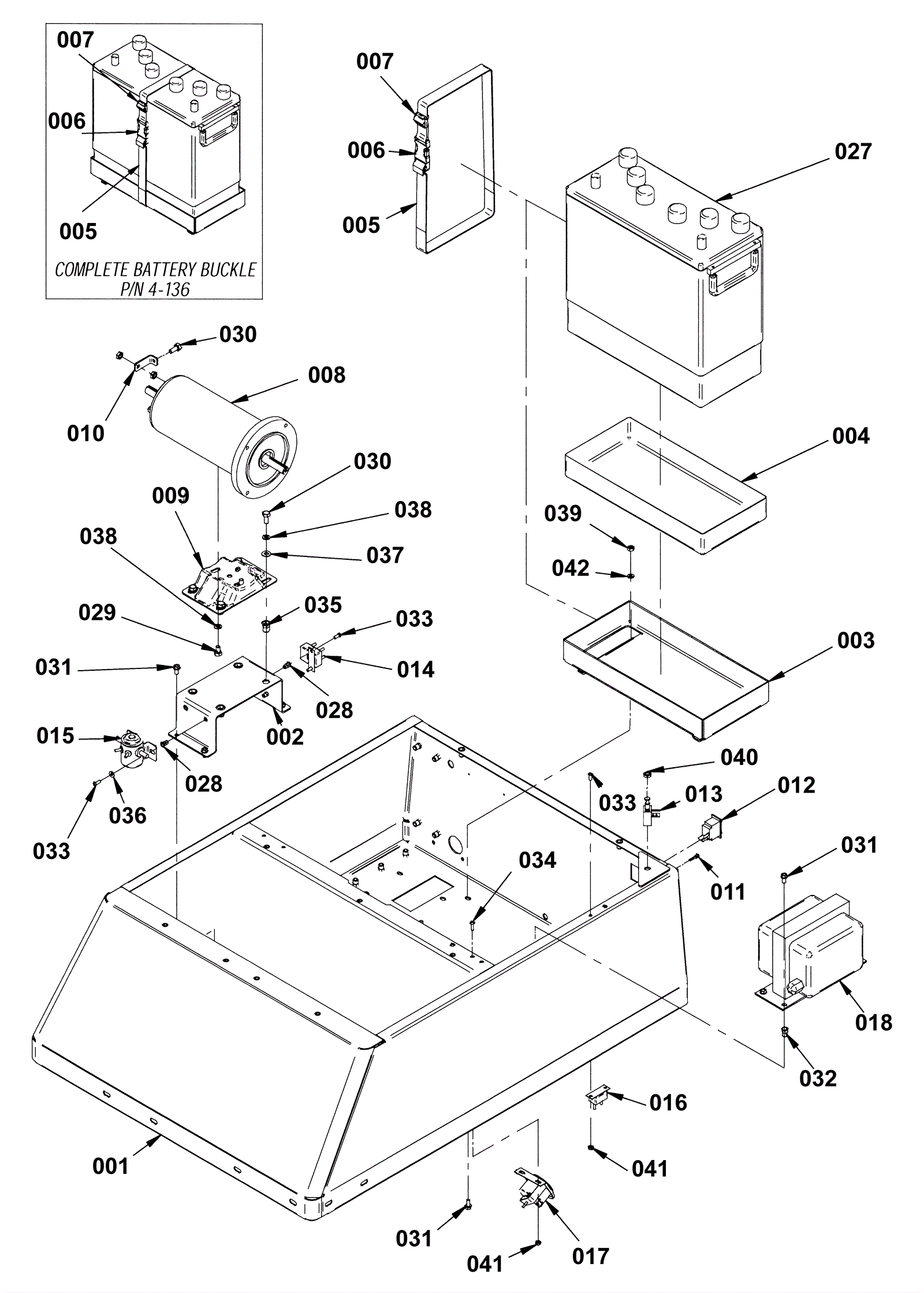

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
202-2673
|
Main body |
$1,817.64
|
1 |
|
usually ships 1-5 days |
002 |
202-2689
|
Motor support bracket |
$67.10
|
1 |
|
usually ships 1-5 days |
003 |
202-5315
|
Battery tray |
$241.45
|
1 |
|
ships same day |
004 |
202-5315
|
Battery tray |
$241.45
|
1 |
|
ships same day |
005 |
202-2799
|
1in Hard black webbing (OBSOLETE) |
$4.62
|
1 |
|
usually ships 1-5 days |
006 |
202-2800
|
Battery buckle |
$5.50
|
1 |
|
usually ships 8-12 days |
007 |
202-2801
|
Triglide |
$5.50
|
1 |
|
usually ships 1-5 days |
008 |
202-2690
|
12V twin shaft motor |
$712.69
|
1 |
|
usually ships 8-12 days |
009 |
202-2691
|
Motor cradle |
$55.66
|
1 |
|
usually ships 8-12 days |
010 |
202-2692
|
Terminal clip |
$14.63
|
1 |
|
usually ships 8-12 days |
011 |
202-2802
|
Low battery light |
$180.84
|
1 |
|
usually ships 8-12 days |
012 |
202-2803
|
Rocker switch |
$32.89
|
1 |
|
usually ships 8-12 days |
013 |
202-2804
|
Safety shut off switch |
$32.67
|
1 |
|
usually ships 8-12 days |
014 |
202-2577
|
80 amp breaker |
$278.85
|
1 |
|
usually ships 8-12 days |
015 |
202-2694
|
12V solenoid |
$109.34
|
1 |
|
usually ships 8-12 days |
016 |
202-0341
|
6 Amp circuit breaker |
$53.79
|
1 |
|
usually ships 8-12 days |
017 |
202-2807
|
Hour meter |
$162.14
|
1 |
|
usually ships 1-5 days |
018 |
202-1887
|
On-board battery charger |
$775.28
|
1 |
|
usually ships 8-12 days |
019 |
202-2809
|
Battery to charger plug |
$76.23
|
1 |
|
usually ships 8-12 days |
020 |
202-2809
|
Battery to charger plug |
$76.23
|
1 |
|
usually ships 8-12 days |
021 |
202-2811
|
Grey 50 to 80 amp breaker |
$58.85
|
1 |
|
usually ships 1-5 days |
022 |
202-2812
|
80 amp harness breaker to solenoid |
$26.18
|
1 |
|
usually ships 8-12 days |
023 |
202-2813
|
Solenoid to main motor |
$26.18
|
1 |
|
usually ships 1-5 days |
024 |
202-2814
|
Main wiring harness |
$65.23
|
1 |
|
usually ships 1-5 days |
025 |
202-0360
|
Grey 60 amp connector with crimp-on contacts |
$55.66
|
2 |
|
usually ships 8-12 days |
026 |
202-2009
|
50amp connector (gray) |
$48.40
|
2 |
|
usually ships 8-12 days |
027 |
162-0002
|
12V 185Ah wet battery (SNSR) |
$646.73
|
1 |
|
ships same day |
028 |
999-0460
|
Nut 10-32 hex |
$0.99
|
11 |
|
ships same day |
029 |
999-0981
|
Screw 5-16-18 x 1/2 hex head grade 5 zinc plated |
$3.92
|
2 |
|
ships same day |
030 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
$2.64
|
5 |
|
ships same day |
031 |
202-2687
|
Bolt 1/4-20 x 1/2 case hardened zinc flange |
$6.71
|
12 |
|
usually ships 1-5 days |
032 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
50 |
|
ships same day |
033 |
999-0997
|
Screw 10-32 x 1/2 round head phillips zinc plated |
$0.99
|
6 |
|
ships same day |
034 |
202-2122
|
Screw 10-32 x 5/8 inch phillips pan head |
$5.50
|
2 |
|
usually ships 8-12 days |
035 |
999-0069
|
Nut 5/16-18 hex |
$0.99
|
4 |
|
ships same day |
036 |
999-0006
|
Washer 3/16 flat zinc plated |
$0.99
|
2 |
|
ships same day |
037 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
038 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
$0.99
|
6 |
|
ships same day |
039 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
4 |
|
ships same day |
040 |
999-0959
|
Nut 3/8-16 hex |
$1.42
|
1 |
|
ships same day |
041 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
4 |
|
ships same day |
042 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
4 |
|
ships same day |
