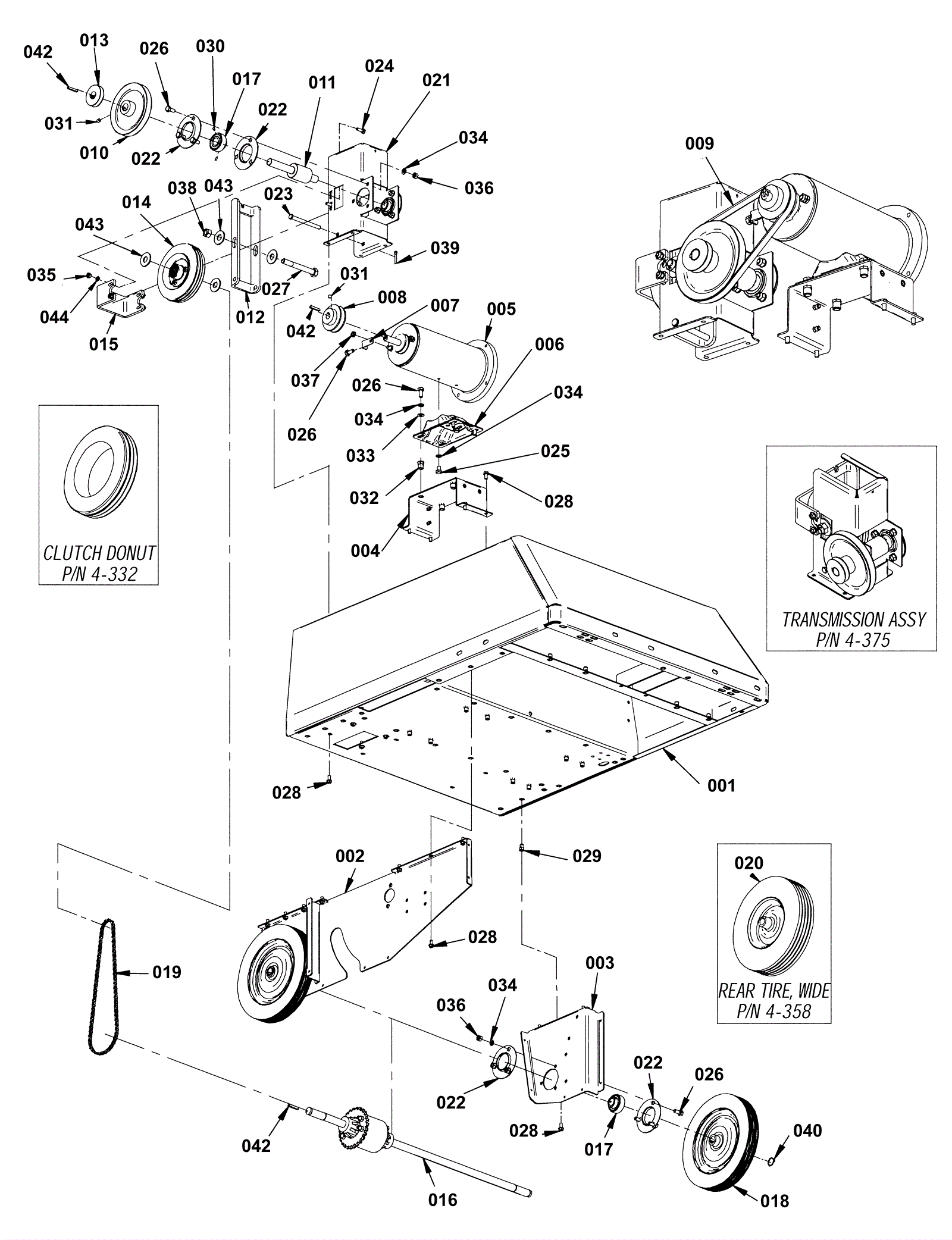

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
202-2673
|
Main body |
$1,817.64
|
1 |
|
usually ships 1-5 days |
002 |
202-2710
|
Right inner side panel |
$164.45
|
1 |
|
usually ships 1-5 days |
003 |
202-2717
|
Rear inner panel |
$124.41
|
1 |
|
usually ships 1-5 days |
004 |
202-2689
|
Motor support bracket |
$67.10
|
1 |
|
usually ships 1-5 days |
005 |
202-2690
|
12V twin shaft motor |
$712.69
|
1 |
|
usually ships 8-12 days |
006 |
202-2691
|
Motor cradle |
$55.66
|
1 |
|
usually ships 8-12 days |
007 |
202-2692
|
Terminal clip |
$14.63
|
1 |
|
usually ships 8-12 days |
008 |
202-2695
|
Main drive pulley |
$52.58
|
1 |
|
usually ships 8-12 days |
009 |
202-1354
|
Belt 4L260 inch |
$33.11
|
1 |
|
usually ships 8-12 days |
010 |
202-2784
|
Trans input pulley |
$59.51
|
1 |
|
usually ships 8-12 days |
011 |
202-2785
|
Rear wheel shaft |
$83.82
|
1 |
|
usually ships 8-12 days |
012 |
202-2786
|
Clutch mounting bracket |
$121.77
|
1 |
|
usually ships 8-12 days |
013 |
202-2787
|
Broom drive pulley |
$32.88
|
1 |
|
ships same day |
014 |
202-2788
|
Clutch wheel assembly |
$275.17
|
1 |
|
usually ships 8-12 days |
015 |
202-2789
|
Brake shoe |
$38.39
|
1 |
|
usually ships 1-5 days |
016 |
202-1342
|
Differential axle |
$219.12
|
1 |
|
usually ships 8-12 days |
017 |
202-0142
|
Upper steering bearing |
$31.24
|
4 |
|
usually ships 8-12 days |
018 |
202-2459
|
Wheel |
$243.14
|
1 |
|
usually ships 8-12 days |
019 |
202-2458
|
Drive chain |
$29.15
|
1 |
|
usually ships 8-12 days |
020 |
202-2459
|
Wheel |
$243.14
|
2 |
|
usually ships 8-12 days |
021 |
202-2791
|
Trans housing |
$124.63
|
1 |
|
usually ships 1-5 days |
022 |
202-0143
|
Bearing mount |
$15.84
|
8 |
|
usually ships 1-5 days |
023 |
202-2792
|
Clevis pin 3/8 inch x 4 1/2 inch (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
024 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
$0.99
|
4 |
|
ships same day |
025 |
999-0981
|
Screw 5-16-18 x 1/2 hex head grade 5 zinc plated |
$3.92
|
2 |
|
ships same day |
026 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
$2.64
|
16 |
|
ships same day |
027 |
202-2793
|
Bolt 1/2 - 13 x 4 1/4 hex |
$6.38
|
1 |
|
usually ships 8-12 days |
028 |
202-2687
|
Bolt 1/4-20 x 1/2 case hardened zinc flange |
$6.71
|
18 |
|
usually ships 1-5 days |
029 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
50 |
|
ships same day |
030 |
202-2794
|
Screw 8-32 x 1/4 inch set cup point |
$5.50
|
4 |
|
usually ships 1-5 days |
031 |
999-0346
|
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
$0.99
|
2 |
|
ships same day |
032 |
999-0069
|
Nut 5/16-18 hex |
$0.99
|
4 |
|
ships same day |
033 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
034 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
$0.99
|
16 |
|
ships same day |
035 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
4 |
|
ships same day |
036 |
999-0069
|
Nut 5/16-18 hex |
$0.99
|
12 |
|
ships same day |
037 |
202-2795
|
Nut 5/16 inch - 8 jam (OBSOLETE) |
Call for price
|
4 |
|
usually ships 1-5 days |
038 |
999-0118
|
Nut 1/2-13 nylon insert lock zinc plated |
$0.99
|
1 |
|
ships same day |
039 |
202-2796
|
Cotter pin 1/8 inch x 1 |
$5.50
|
1 |
|
usually ships 1-5 days |
041 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
4 |
|
ships same day |
042 |
202-0140
|
Steering shaft key |
$5.50
|
5 |
|
usually ships 8-12 days |
043 |
202-2798
|
Washer 17/32 inch flat |
$5.50
|
4 |
|
usually ships 1-5 days |
