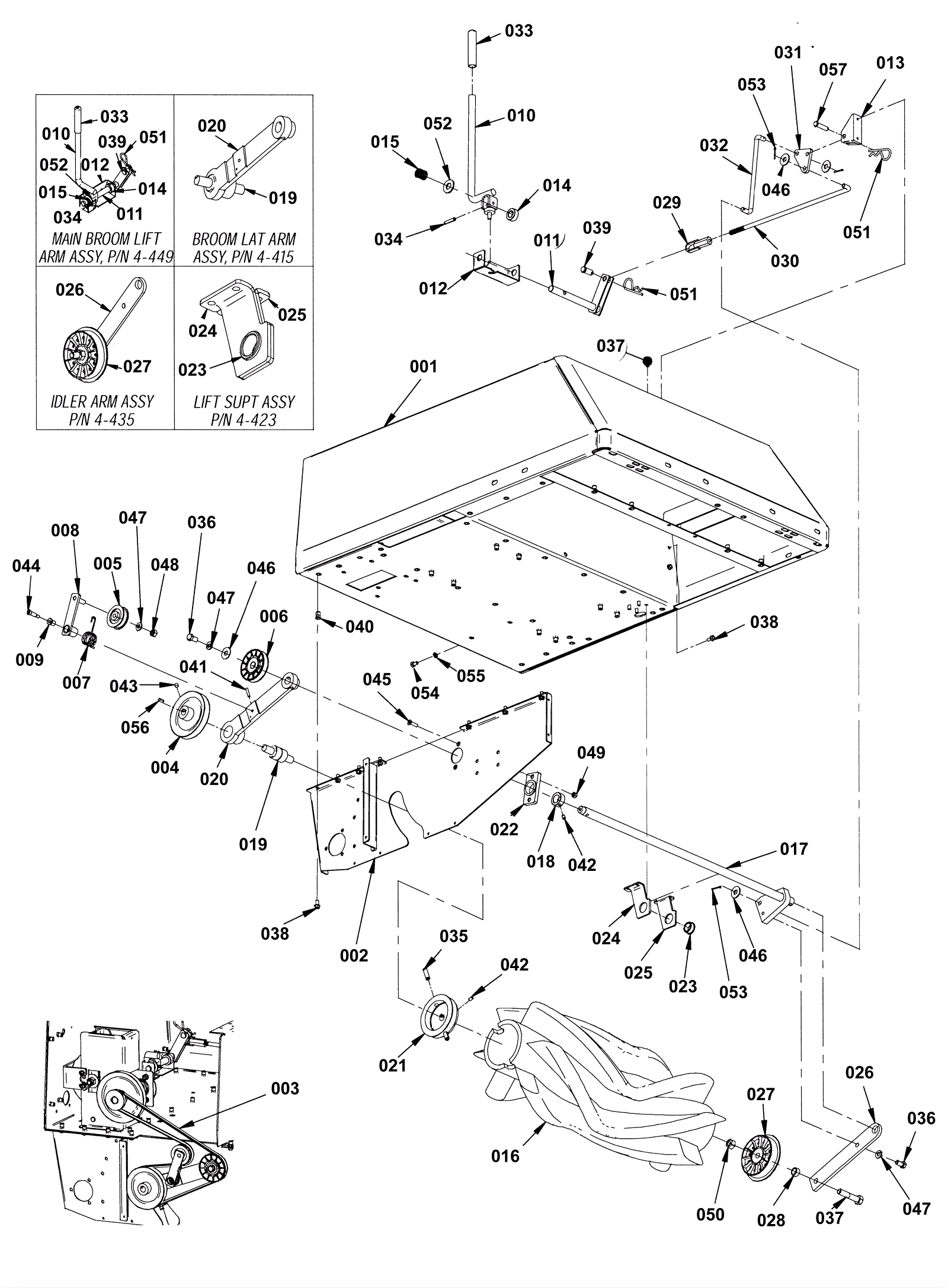

3300 Main Broom Assembly

#PartDescriptionPriceReqNotesAvailability
001 202-2673 Main body $1,817.64 1 usually ships 1-5 days
002 202-2710 Right inner side panel $164.45 1 usually ships 1-5 days
003 202-1353 Belt $61.71 1 ships same day
004 202-2760 Broom drive pulley $67.10 1 usually ships 8-12 days
005 202-0267 Idler pulley with bearing $63.58 1 usually ships 8-12 days
006 202-2761 Idler pulley $25.96 1 usually ships 8-12 days
007 202-0277 Tension spring $79.59 1 usually ships 8-12 days
008 202-2762 Reverse idler arm $152.47 1 usually ships 8-12 days
009 202-2763 Bushing idler arm $6.71 1 usually ships 8-12 days
010 202-2742 Broom lift lever $137.28 1 usually ships 1-5 days
011 202-2767 Broom lift shaft $141.90 1 usually ships 1-5 days
012 202-2764 Main broom left hand lift lever $50.49 1 usually ships 1-5 days
013 202-2765 Rotary link base $25.30 1 usually ships 1-5 days
014 202-2745 Lift lever collar $6.71 1 usually ships 1-5 days
015 202-2746 Lift lever spring $8.91 1 usually ships 8-12 days
016 202-2457 26 inch union and steel main broom $294.80 1 usually ships 8-12 days
017 202-2766 Broom suspension arm $349.58 1 usually ships 1-5 days
018 202-2216 Shaft collar with set screw $5.50 1 usually ships 8-12 days
019 202-2768 Broom drive bearing $121.33 1 usually ships 8-12 days
020 202-3536 Broom lateral arm assembly $431.31 1 usually ships 8-12 days
021 202-2770 Broom driver $130.79 1 usually ships 8-12 days
022 202-2724 Support block $43.89 1 usually ships 8-12 days
023 202-1397 Flanged bushing $6.38 1 usually ships 8-12 days
024 202-2772 Left hand support bracket tab $57.53 1 usually ships 1-5 days
025 202-2773 Right hand support bracket tab $57.53 1 usually ships 1-5 days
026 202-2774 Idler arm $56.32 1 usually ships 8-12 days
027 202-2775 Idler drum $56.43 1 usually ships 8-12 days
028 202-2776 Idler drum spacer $12.87 1 usually ships 8-12 days
029 202-2748 Adjustable broom lift $43.89 1 usually ships 1-5 days
030 202-2777 Broom long link $54.34 1 usually ships 1-5 days
031 202-2778 Broom rotary link $19.69 1 usually ships 1-5 days
032 202-2779 Broom crank link $60.61 1 usually ships 1-5 days
033 202-0506 Handle grip $6.71 1 usually ships 8-12 days
034 202-2755 Spring knob 1/4 x 1 1/4 (OBSOLETE) $3.80 1 usually ships 1-5 days
035 202-5304 Spring roll pin $5.50 2 usually ships 8-12 days
036 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
037 999-0261 Bolt 1/2-13 x 2 hex head grade 5 $1.58 1 ships same day
038 202-2687 Bolt 1/4-20 x 1/2 case hardened zinc flange $6.71 12 usually ships 1-5 days
039 202-2756 Clevis pin 1/2 x 1 (OBSOLETE) Call for price 1 usually ships 1-5 days
040 999-0190 Nut 1/4-20 hex plain finish $0.99 50 ships same day
041 202-2781 Screw 10-32 x 1 set cup point $5.50 1 usually ships 8-12 days
042 999-0095 Screw 1/4-20 x 3/8 cup point socket set alloy plain finish $0.99 3 ships same day
043 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 1 ships same day
044 202-5311 Bolt 5/16 x 3/4 shoulder stainless steel $5.50 1 usually ships 8-12 days
045 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel $0.99 2 ships same day
046 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
047 999-1526 Washer 3/8 medium split lock zinc $0.99 3 ships same day
048 999-0959 Nut 3/8-16 hex $1.42 1 ships same day
049 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
050 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 1 ships same day
051 202-2757 Hitch pin $6.71 2 usually ships 1-5 days
052 202-1189 Washer 17.3mm x 32.2mm x 1.6mm flat $5.50 1 usually ships 8-12 days
053 202-2783 Cotter pin $5.50 3 usually ships 1-5 days
054 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 2 ships same day
055 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
056 202-0278 Square keyway $5.50 1 usually ships 8-12 days
057 202-0942 Clevis pin $5.50 1 usually ships 8-12 days
