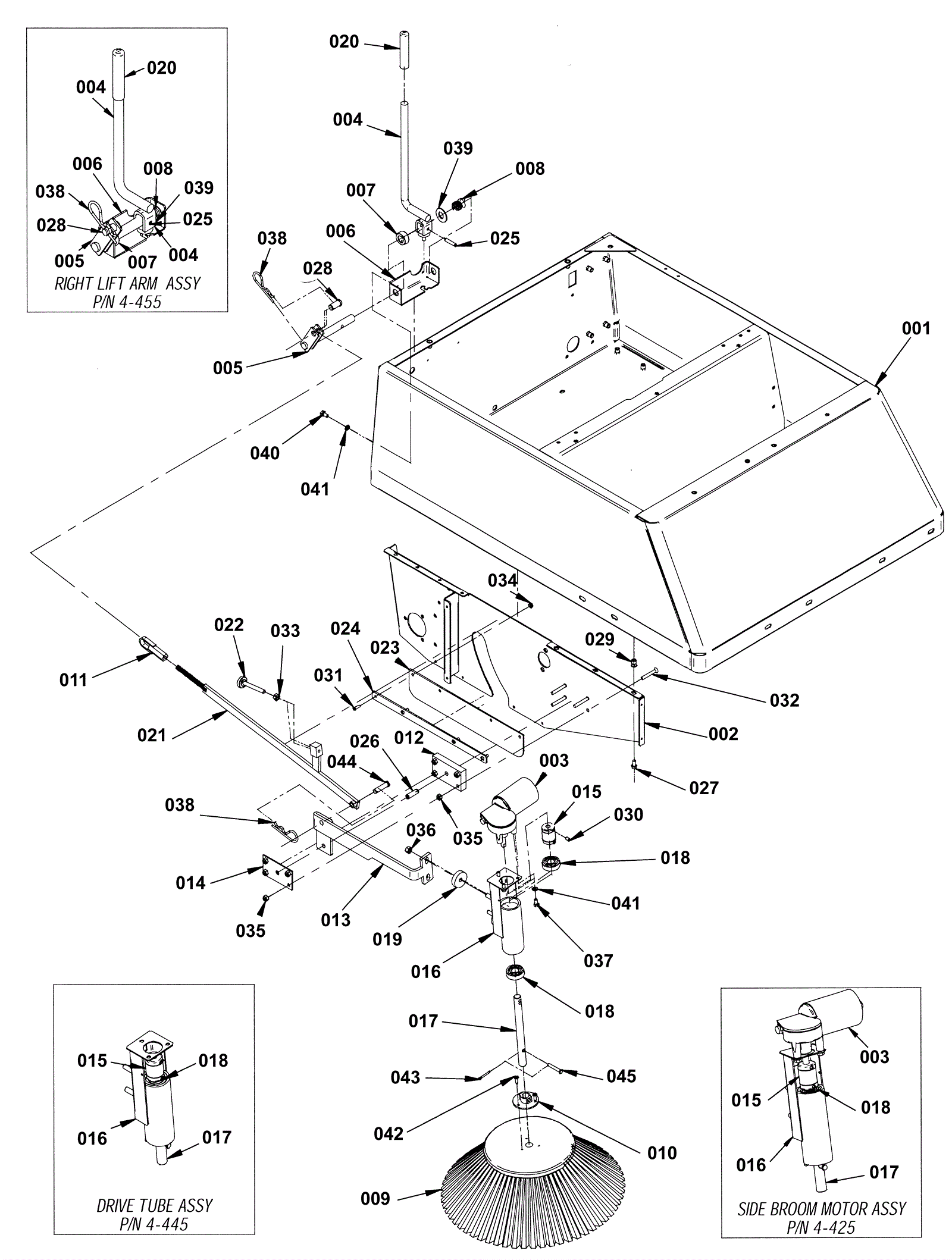

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
202-2673
|
Main body |
$1,890.35
|
1 |
|
usually ships 1-5 days |
002 |
202-2710
|
Right inner side panel |
$171.05
|
1 |
|
usually ships 1-5 days |
003 |
202-2741
|
Side broom motor |
$474.43
|
1 |
|
usually ships 8-13 days |
004 |
202-2742
|
Broom lift lever |
$142.78
|
1 |
|
usually ships 1-5 days |
005 |
202-2743
|
Broom lift shaft |
$198.55
|
1 |
|
usually ships 1-5 days |
006 |
202-2744
|
Right lift lever base |
$52.58
|
1 |
|
usually ships 1-5 days |
007 |
202-2745
|
Lift lever collar |
$7.04
|
1 |
|
usually ships 1-5 days |
008 |
202-2746
|
Lift lever spring |
$9.35
|
1 |
|
usually ships 8-13 days |
009 |
202-0440
|
Polypropylene fiber side brush |
$141.13
|
1 |
|
usually ships 8-13 days |
010 |
202-2747
|
Side broom clutch plate (OBSOLETE) |
$264.00
|
1 |
|
usually ships 1-5 days |
011 |
202-2748
|
Adjustable broom lift |
$45.65
|
1 |
|
usually ships 1-5 days |
012 |
202-2725
|
Broom mounting block |
$22.55
|
1 |
|
usually ships 1-5 days |
013 |
202-2749
|
Side arm broom |
$120.45
|
1 |
|
usually ships 1-5 days |
014 |
202-2750
|
Broom retaining plate |
$17.38
|
1 |
|
usually ships 1-5 days |
015 |
202-2142
|
Drive coupling |
$51.70
|
1 |
|
usually ships 8-13 days |
016 |
N/A
|
Not available |
Call for price
|
1 |
(Broom motor mount) (only available in drive tube assembly 202-5310) |
usually ships 3-26 days |
017 |
N/A
|
Not available |
Call for price
|
1 |
(only comes with part 202-5310) |
usually ships 3-26 days |
018 |
202-2143
|
Drive tube bearing |
$12.32
|
2 |
|
usually ships 8-13 days |
019 |
202-0151
|
Grommet |
$5.50
|
2 |
|
usually ships 8-13 days |
020 |
202-0506
|
Handle grip |
$7.04
|
1 |
|
usually ships 8-13 days |
021 |
202-2753
|
Side broom long link |
$247.39
|
1 |
|
usually ships 1-5 days |
022 |
202-2754
|
Adjustment knob |
$5.50
|
1 |
|
usually ships 8-13 days |
023 |
202-2727
|
Right floor seal |
$19.47
|
1 |
|
usually ships 8-13 days |
024 |
202-2732
|
Righthand seal strip |
$16.72
|
1 |
|
usually ships 8-13 days |
025 |
202-2755
|
Spring knob 1/4 x 1 1/4 (OBSOLETE) |
$3.80
|
1 |
|
usually ships 1-5 days |
026 |
202-5304
|
Spring roll pin |
$5.50
|
1 |
|
usually ships 8-13 days |
027 |
202-2687
|
Bolt 1/4-20 x 1/2 case hardened zinc flange |
$7.04
|
7 |
|
usually ships 1-5 days |
028 |
202-2756
|
Clevis pin 1/2 x 1 (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
029 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
50 |
|
ships same day |
030 |
999-0095
|
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
$0.99
|
2 |
|
ships same day |
031 |
202-2122
|
Screw 10-32 x 5/8 inch phillips pan head |
$5.50
|
4 |
|
usually ships 8-13 days |
032 |
999-0326
|
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
$0.99
|
4 |
|
ships same day |
033 |
999-0069
|
Nut 5/16-18 hex |
$0.99
|
1 |
|
ships same day |
034 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
4 |
|
ships same day |
035 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
8 |
|
ships same day |
036 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
$0.99
|
2 |
|
ships same day |
037 |
999-1465
|
Screw M6-1 x 14mm hex head zinc plated |
$0.99
|
3 |
|
usually ships 16-20 days |
038 |
202-2757
|
Hitch pin |
$7.04
|
2 |
|
usually ships 1-5 days |
039 |
202-1189
|
Washer 17.3mm x 32.2mm x 1.6mm flat |
$5.50
|
1 |
|
usually ships 8-13 days |
040 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
$0.99
|
2 |
|
ships same day |
041 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
5 |
|
ships same day |
042 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
$0.99
|
3 |
|
ships same day |
043 |
202-0585
|
Cotter ring |
$5.50
|
1 |
|
usually ships 8-13 days |
044 |
202-0942
|
Clevis pin |
$5.50
|
1 |
|
usually ships 8-13 days |
045 |
202-0805
|
Clevis pin |
$5.50
|
1 |
|
usually ships 8-13 days |
