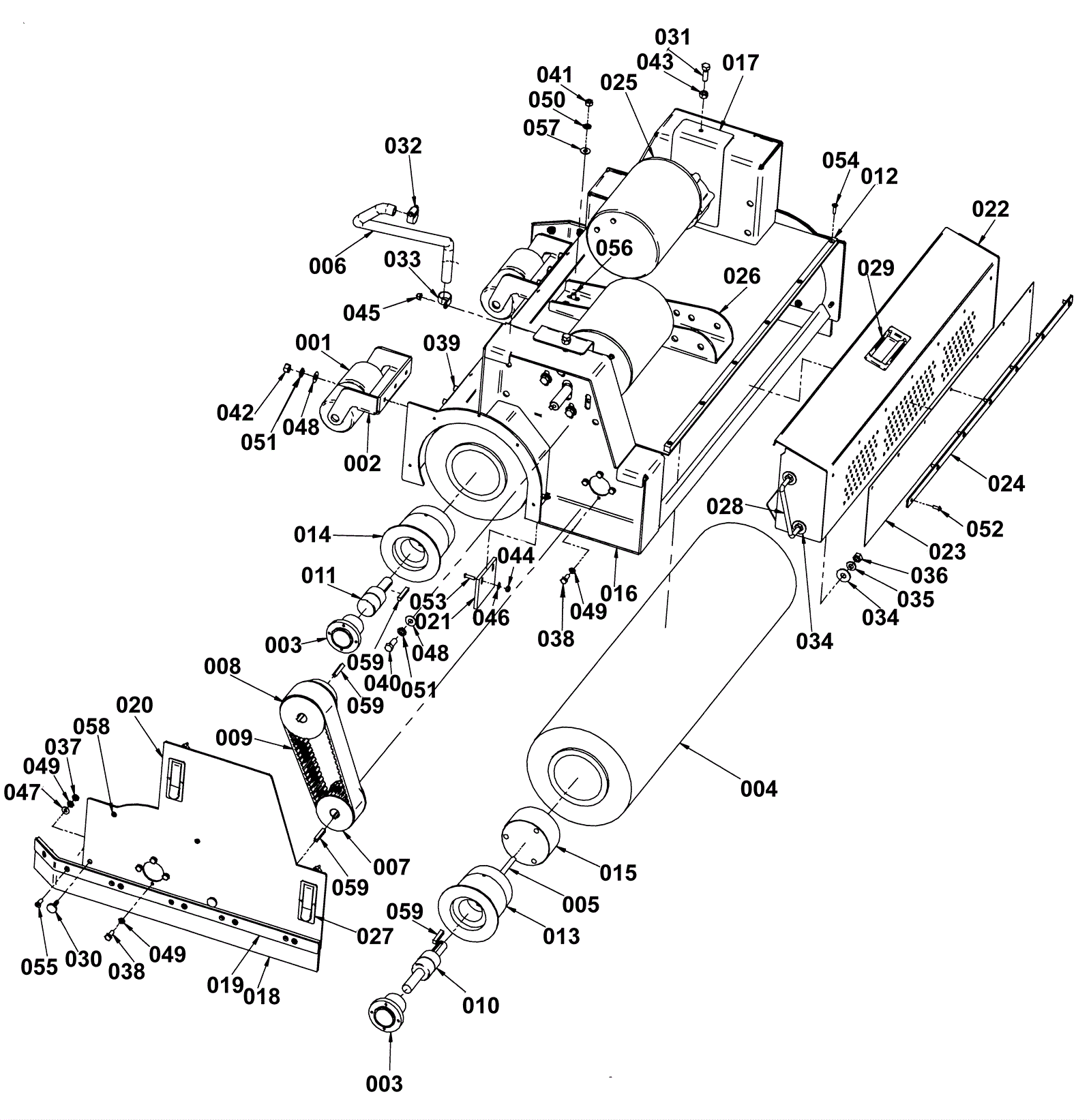

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0756
|
Guide roller |
4 |
|
|
002 |
202-2473
|
Roller bracket (OBSOLETE) |
2 |
|
|
003 |
202-2474
|
Bearing housing (OBSOLETE) |
4 |
|
|
004 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
2 |
|
|
005 |
202-7476
|
Jaw Brace |
6 |
|
|
005 |
202-4082
|
Stud |
6 |
|
|
006 |
202-2477
|
Tube (clear) |
1 |
|
|
007 |
202-2478
|
Small timing sprocket |
2 |
|
|
008 |
202-2479
|
Large timing sprocket |
2 |
|
|
009 |
202-2480
|
Drive belt |
2 |
|
|
010 |
202-2481
|
Bearing assembly with housing |
2 |
|
|
011 |
202-2482
|
Idler bearing |
2 |
|
|
012 |
202-2483
|
34 inch hopper rail |
1 |
|
|
013 |
202-2484
|
Brush driver |
2 |
|
|
014 |
202-2485
|
Brush idler |
2 |
|
|
015 |
202-2486
|
Internal broom driver |
2 |
|
|
016 |
202-2487
|
Cylindrical brush deck |
1 |
|
|
017 |
202-2488
|
Motor bracket |
2 |
|
|
018 |
202-2489
|
Side curtain blade |
2 |
|
|
019 |
202-2490
|
Blade retaining band |
2 |
|
|
020 |
202-2491
|
Drive cover (OBSOLETE) |
2 |
|
|
021 |
202-2492
|
Plate |
2 |
|
|
022a |
202-2493
|
Hopper |
1 |
(36 inch cylindrical model) |
|
022b |
202-4080
|
Hopper |
1 |
(42 inch cylindrical model) |
|
023 |
202-2494
|
Hopper splash shield |
1 |
|
|
024 |
202-2495
|
Protective strip |
1 |
|
|
025 |
202-2496
|
36V brush motor |
2 |
|
|
026 |
202-2497
|
Scrub deck lifting bracket |
1 |
|
|
027 |
202-0404
|
Latch |
4 |
|
|
028 |
202-0855
|
Hopper handle |
1 |
|
|
029 |
202-0308
|
Handle |
1 |
|
|
030 |
202-1110
|
Thumb screw (set of 2) |
4 |
|
|
031 |
999-1135
|
Bolt 3/8-16 x 1 1/8 hex head stainless steel |
2 |
|
|
032 |
202-0680
|
Hose clamp |
1 |
|
|
033 |
202-2498
|
Scrub deck lifting bracket (OBSOLETE) |
1 |
|
|
034 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
4 |
|
|
035 |
999-1526
|
Washer 3/8 medium split lock zinc |
2 |
|
|
036 |
999-0959
|
Nut 3/8-16 hex |
2 |
|
|
037 |
999-0441
|
Nut 1/4-20 nylon lock jam zinc plated |
12 |
|
|
038 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
16 |
|
|
039 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
6 |
|
|
040 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
8 |
|
|
041 |
999-0593
|
Nut 5/16-18 hex stainless steel |
4 |
|
|
042 |
999-0635
|
Nut 3/8-16 hex stainless steel |
6 |
|
|
043 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
4 |
|
|
044 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
045 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
046 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
047 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
048 |
999-0611
|
Nut 5/16-18 hex jam brass |
14 |
|
|
049 |
999-0632
|
Washer 1/4 split lock stainless steel |
28 |
|
|
050 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
4 |
|
|
051 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
14 |
|
|
052 |
999-0074
|
Screw 10-32 x 1/2 round head slotted zinc plated |
7 |
|
|
053 |
999-1008
|
Screw 10-32 x 3/4 round head phillips stainless steel |
4 |
|
|
054 |
999-1189
|
Screw 10-32 x 3/4 flat head phillips stainless steel |
6 |
|
|
055 |
999-0326
|
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
12 |
|
|
056 |
999-1524
|
Screw 5/16-18 x 3/4 button head socket stainless steel |
4 |
|
|
057 |
999-0964
|
Washer 5/16 x 3/4 flat stainless steel |
4 |
|
|
058 |
999-0338
|
Screw 1/4-20 x 1/2 socket head shoulder |
4 |
|
|
059 |
202-4083
|
Square keyway |
10 |
|
|
